參數資料
| 型號： | MRF183R1 |
| 廠商： | FREESCALE SEMICONDUCTOR INC |
| 元件分類： | 功率晶體管 |
| 英文描述： | UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET |
| 封裝： | NI-360, CASE 360B-05, 2 PIN |
| 文件頁數： | 10/12頁 |
| 文件大小： | 990K |
| 代理商： | MRF183R1 |
ARCHIVED BY FREESCALE SEMICONDUCTOR, INC. 2005
MRF183R1 MRF183LSR1
MOTOROLA RF DEVICE DATA
Zin
f = 930 MHz
Z0 = 10
ZOL*
f = 960 MHz
f = 930 MHz
f = 960 MHz
VDD = 28 V, IDQ = 250 mA, Pout = 45 W PEP
f
MHz
Zin
Ohms
ZOL*
Ohms
930
1.10 + j0.93
2.60 j0.13
945
1.10 + j0.78
2.70 j0.28
960
1.10 + j0.60
2.80 j0.42
Note: ZOL* was chosen based on tradeoffs between gain, output power, drain efficiency and
intermodulation distortion.

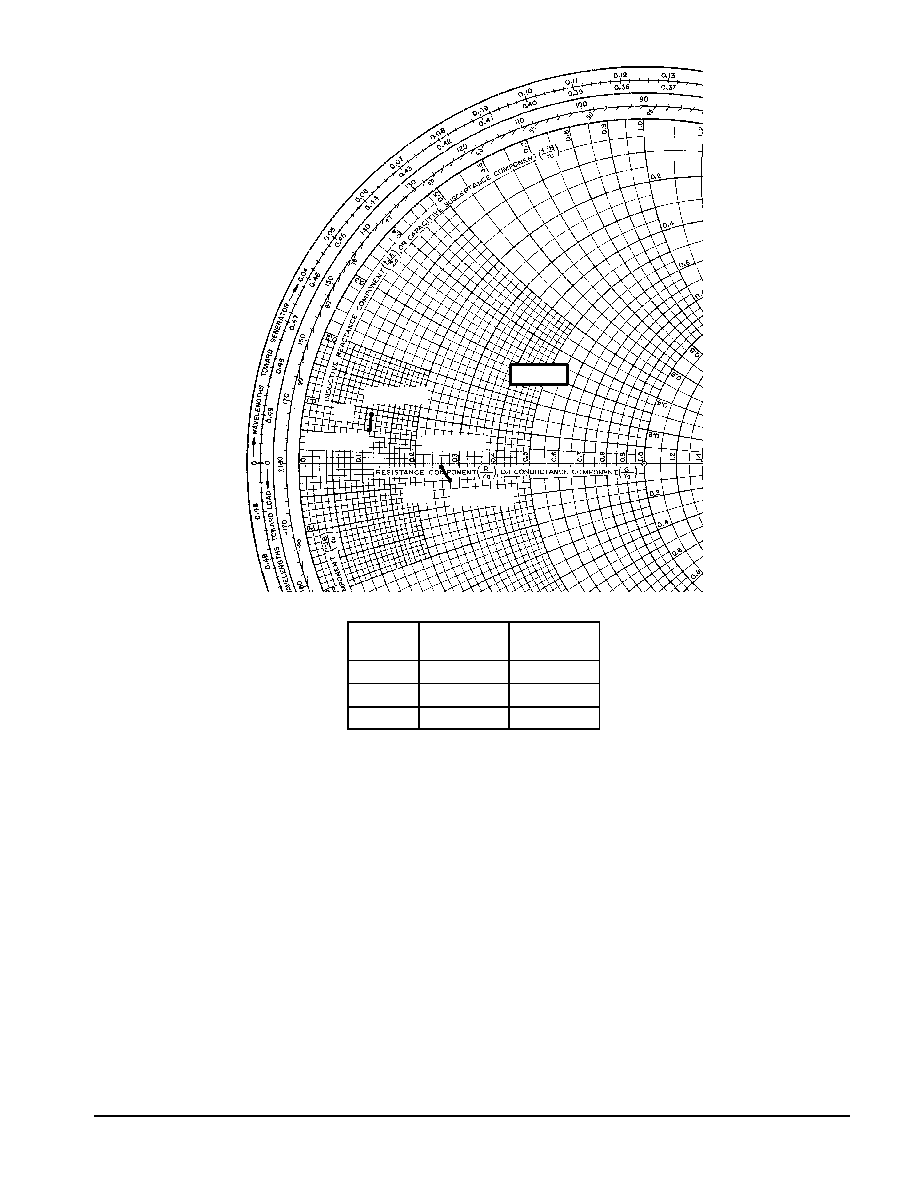

Figure 15. Series Equivalent Input and Output Impedance
Zin
= Conjugate of source impedance.
ZOL* = Conjugate of the load impedance at a given output
power, voltage, and current conditions.
Archived 2005
A
R
C
H
IV
E
D
2
0
5
