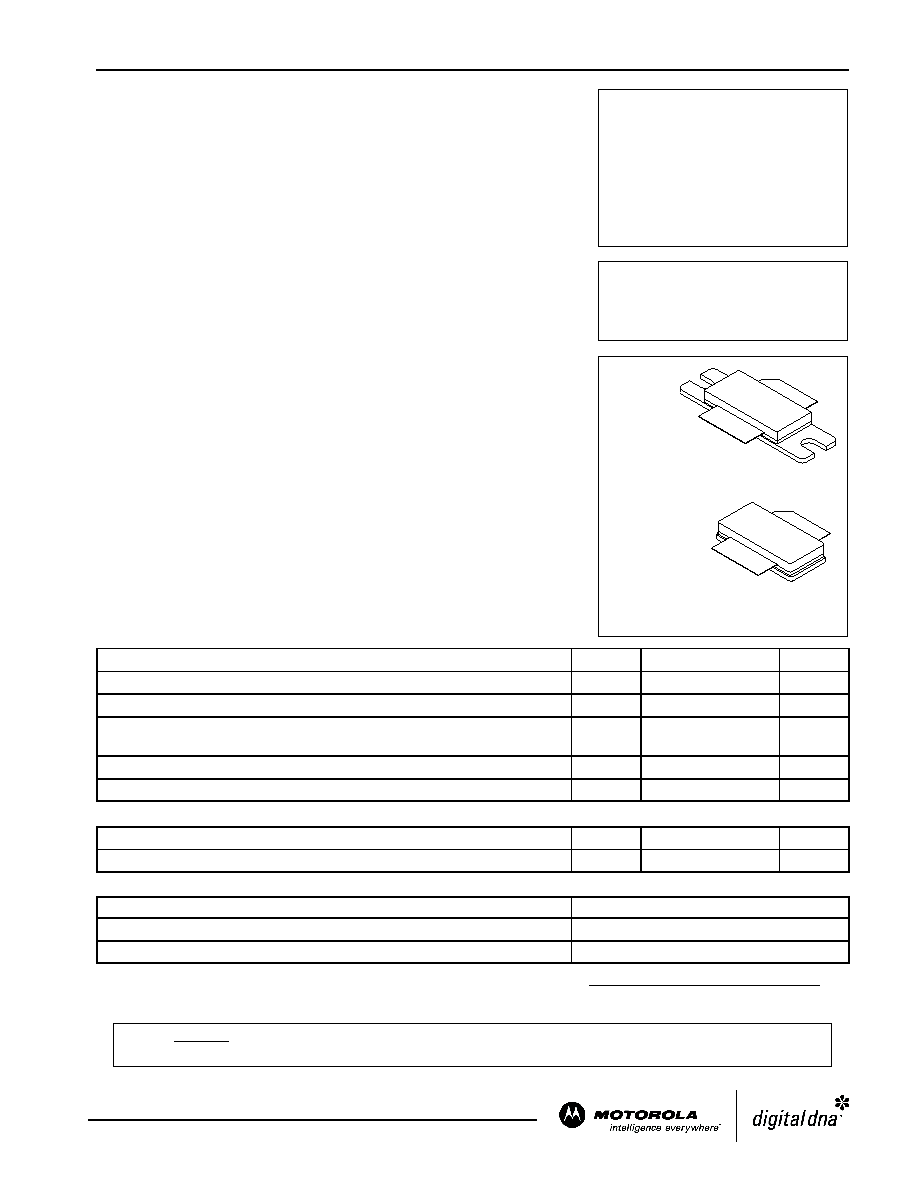

MRF19085R3 MRF19085LR3 MRF19085SR3 MRF19085LSR3
MOTOROLA RF DEVICE DATA
The RF MOSFET Line
RF Power Field Effect Transistors
N-Channel Enhancement-Mode Lateral MOSFETs
Designed for PCN and PCS base station applications with frequencies from
1.9 to 2.0 GHz. Suitable for TDMA, CDMA and multicarrier amplifier
applications.
Typical 2-Carrier N-CDMA Performance for VDD = 26 Volts,
IDQ = 850 mA, Pout = 18 Watts Avg., f1 = 1960 MHz, f2 = 1962.5 MHz
IS-95 CDMA (Pilot, Sync, Paging, Traffic Codes 8 Through 13)
1.2288 MHz Channel Bandwidth Carrier. Adjacent Channels Measured
over a 30 kHz Bandwidth at f1 -885 Khz and f2 +885 kHz. Distortion
Products Measured over 1.2288 MHz Bandwidth at f1 -2.5 MHz and
f2 +2.5 MHz. Peak/Avg. = 9.8 dB @ 0.01% Probability on CCDF.
Output Power — 18 Watts Avg.
Power Gain — 13.0 dB
Efficiency — 23%
ACPR — -51 dB
IM3 — -36.5 dBc
Internally Matched, Controlled Q, for Ease of Use
High Gain, High Efficiency and High Linearity
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Capable of Handling 5:1 VSWR, @ 26 Vdc, 1.93 GHz, 90 Watts CW
Output Power
Excellent Thermal Stability
Characterized with Series Equivalent Large-Signal Impedance Parameters
Available with Low Gold Plating Thickness on Leads. L Suffix Indicates
40″ Nominal.
In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 Inch Reel.
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Drain-Source Voltage
VDSS
65
Vdc
Gate-Source Voltage
VGS
-0.5, +15
Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C
PD
273
1.56
Watts
W/°C
Storage Temperature Range
Tstg
- 65 to +150
°C
Operating Junction Temperature
TJ
200
°C
THERMAL CHARACTERISTICS
Characteristic
Symbol
Value (1)
Unit
Thermal Resistance, Junction to Case
RθJC
0.79
°C/W
ESD PROTECTION CHARACTERISTICS
Test Conditions
Class
Human Body Model
1 (Minimum)
Machine Model
M3 (Minimum)
(1) Refer to AN1955/D, Thermal Measurement Methodology of RF Power Amplifiers. Go to http://www.motorola.com/semiconductors/rf.
Select Documentation/Application Notes - AN1955.
NOTE - CAUTION - MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and
packaging MOS devices should be observed.
Order this document
by MRF19085/D
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
MRF19085R3
MRF19085LR3
MRF19085SR3
MRF19085LSR3
1990 MHz, 90 W, 26 V
LATERAL N-CHANNEL
RF POWER MOSFETs
CASE 465-06, STYLE 1
NI-780
MRF19085R3,MRF19085LR3
CASE 465A-06, STYLE 1
NI-780S
MRF19085SR3, MRF19085LSR3
Motorola, Inc. 2004
REV 6
F
re
e
sc
a
le
S
e
m
ic
o
n
d
u
c
to
r,
I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
n
c
..
.
