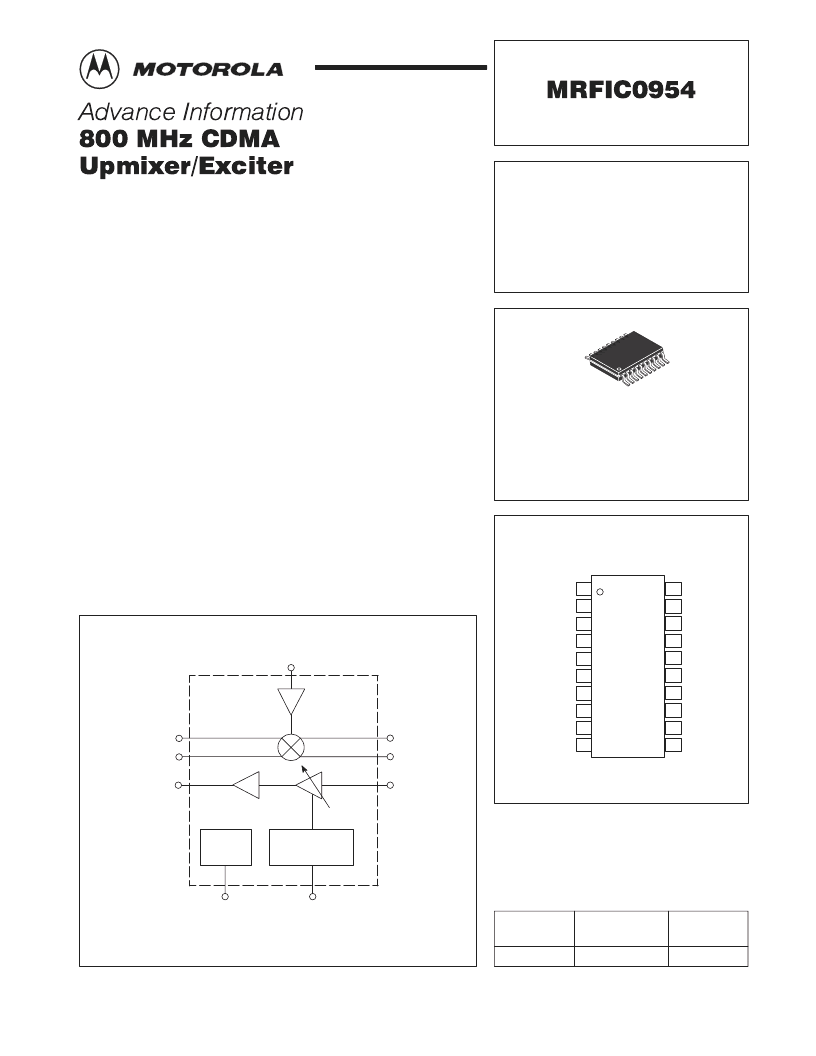

SEMICONDUCTOR
TECHNICAL DATA
800 MHz
DUAL–MODE CDMA/AMPS
UPMIXER/EXCITER
PLASTIC PACKAGE
CASE 948M
(TSSOP–20EP, Tape & Reel Only)
PIN CONNECTIONS
Order this document by MRFIC0954/D
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
(Top View)
IF In+
Enable1
LO In
IF In–
Gnd
Gnd
Gnd
Exciter In
12
11
RF Vcntrl
Exciter Out
VCC2
Enable2
N.C.
Gnd
VCC1
VCC3
FM/CDMA Select
VCC4
RF Out +
RF Out –
20
1
Device
Operating
Temp Range
Package
ORDERING INFORMATION
MRFIC0954R2
TA = –40 to 85
°
C
TSSOP–20EP
(Scale 2:1)
1
The MRFIC0954 is an integrated upmixer and exciter amplifier designed
specifically for dual–mode CDMA/AMPS digital cellular radios. The exciter
amplifier incorporates a temperature compensated linear gain control. The
design utilizes Motorola’s RF BiCMOS1 process to yield superior
performance in a cost effective monolithic device.
Designed for Dual–Mode Operation
Total Supply Current CDMA Mode = 55 mA Typical
Total Supply Current FM Mode = 35 mA Typical
30 dB Dynamic Range Gain Control on Exciter
Upmixer Output IP3
= 11 dBm Typical
Exciter Output IP3
= 28 dBm Typical
Supply Voltage Range = 2.7 to 3.6 V
Cascaded Adjacent Channel Power (Pout = 6.0 dBm)
@ 885 kHz Offset = –60 dBc Typical
@ 1.98 MHz Offset = –72 dBc Typical
Simplified Block Diagram
Exciter Out
Exciter In
LO
RF Out +
RF Out –
IF In +
IF In –
Gain
Control
RF Vcntrl
Bias
FM/CDMA
Select
LO Buffer
This device contains 305 active transistors.
This document contains information on a new product. Specifications and information herein
are subject to change without notice.
Motorola, Inc. 2000
Rev 2
