Semiconductor Components Industries, LLC, 2005
November, 2005
Rev. 4
1
Publication Order Number:
NB2305A/D
NB2305A
3.3 V Zero Delay
Clock Buffer
The NB2305A is a versatile, 3.3 V zero delay buffer designed to
distribute high
speed clocks. It accepts one reference input and drives
out five low
skew clocks. It is available in a 8 pin package.
The
1H version of the NB2305A operates at up to 133 MHz, and
has higher drive than the
1 devices. All parts have on
chip PLL’s that
lock to an input clock on the REF pin. The PLL feedback is on
chip
and is obtained from the CLKOUT pad.
Multiple NB2305A devices can accept the same input clock and
distribute it. In this case the skew between the outputs of the two
devices is guaranteed to be less than 700 ps.
All outputs have less than 200 ps of cycle
to
cycle jitter. The input
and output propagation delay is guaranteed to be less than 350 ps, and
the output to output skew is guaranteed to be less than 250 ps.
The NB2305A is available in two different configurations, as shown
in the ordering information table. The NB2305A1 is the base part. The
NB2305Ax1H* is the high drive version of the
1 and its rise and fall
times are much faster than
1 part.
Features
15 MHz to 133 MHz Operating Range, Compatible with CPU and
PCI Bus Frequencies
Zero Input
Output Propagation Delay
Multiple Low
Skew Outputs
Output
Output Skew Less than 250 ps
Device
Device Skew Less than 700 ps
One Input Drives 5 Outputs
Less than 200 ps Cycle
to
Cycle Jitter is Compatible with Pentium
Based Systems
Available in 8 Pin, 150 mil SOIC Package and 8 Pin TSSOP 4.4 mm
3.3 V Operation, Advanced 0.35
CMOS Technology
Pb
Free Packages are Available
*x = C for Commercial; I for Industrial.

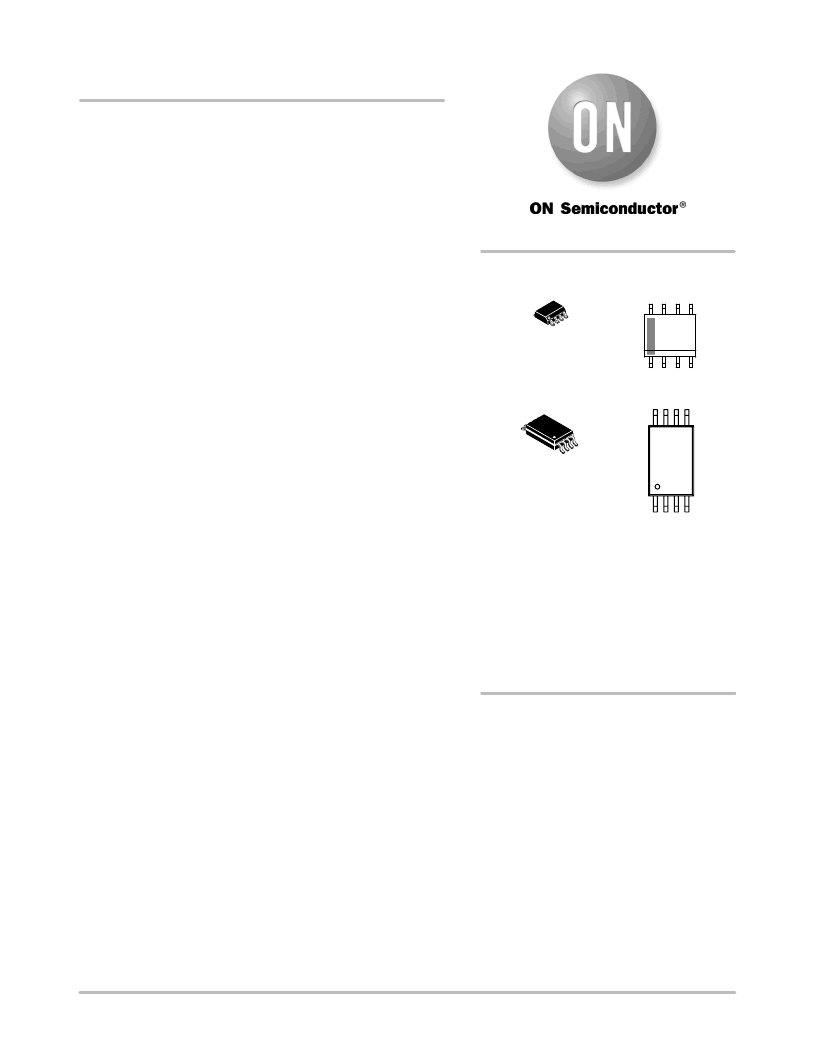

MARKING
DIAGRAMS*
XXXX
A
L
Y
W
= Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb
Free Package
(Note: Microdot may be in either location)
*For additional marking information, refer to
Application Note AND8002/D.
1
8
SOIC
8
D SUFFIX
CASE 751
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
1
8
TSSOP
8
DT SUFFIX
CASE 948J
XXXX
ALYW
1
8
XXX
ALYW
1
8
