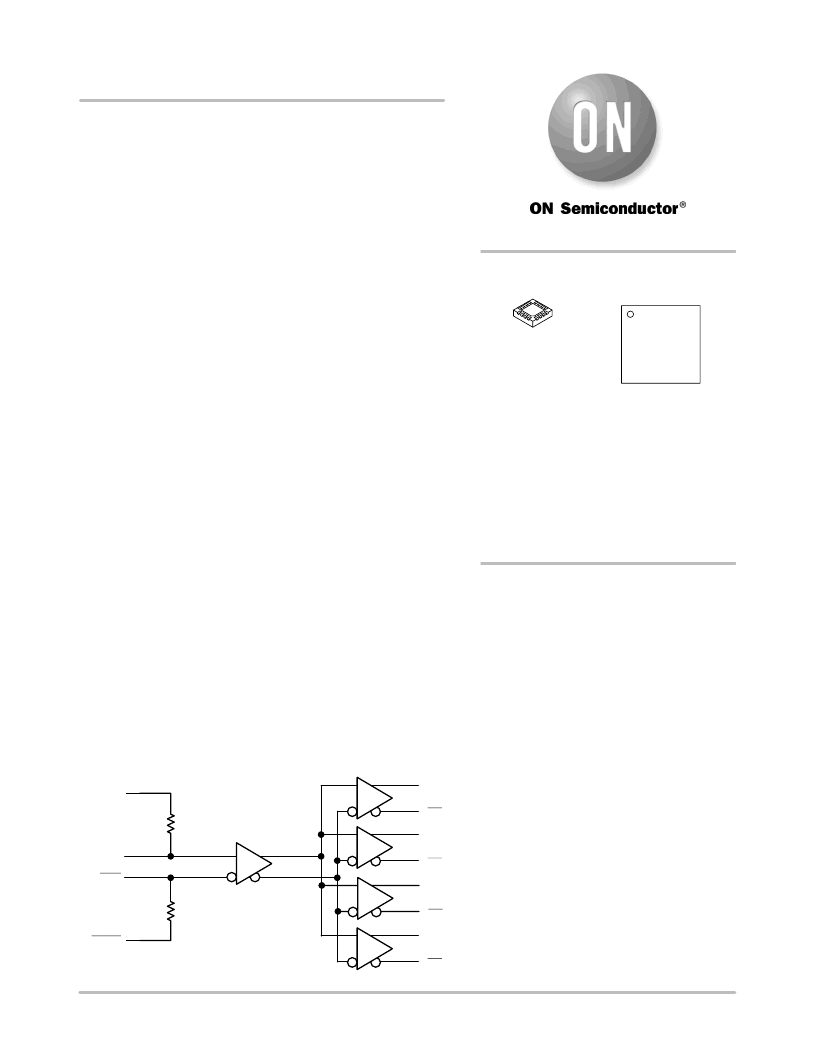

Semiconductor Components Industries, LLC, 2006
January, 2006
Rev. 1
1
Publication Order Number:
NB7L14M/D
NB7L14M
2.5V/3.3VDifferential 1:4
Clock/Data Fanout Buffer/
Translator with CML
Outputs and Internal
Termination
Description
The NB7L14M is a differential 1
to
4 clock/data distribution chip
with internal source terminated CML output structures, optimized for
minimal skew and jitter. Device produces four identical output copies
of clock or data operating up to 8 GHz or 12 Gb/s, respectively. As
such, NB7L14M is ideal for SONET, GigE, Fiber Channel, Backplane
and other clock/data distribution applications.
Inputs incorporate internal 50
LVPECL, CML, LVCMOS, LVTTL, or LVDS (See Table 6).
Differential 16 mA CML outputs provide matching internal 50
terminations, and 400 mV output swings when externally terminated
with 50 to V
CC
(See Figure 14).
The device is offered in a low profile 3x3 mm 16
pin QFN package.
Application notes, models, and support documentation are available at
www.onsemi.com.
Features
Maximum Input Clock Frequency up to 8 GHz Typical
Maximum Input Data Rate up to 12 Gb/s Typical
< 0.5 ps of RMS Clock Jitter
< 10 ps of Data Dependent Jitter
30 ps Typical Rise and Fall Times
110 ps Typical Propagation Delay
6 ps Typical Within Device Skew
Operating Range: V
CC
= 2.375 V to 3.465 V with V
EE
= 0 V
CML Output Level (400 mV Peak
to
Peak Output) Differential
Output Only
50 Internal Input and Output Termination Resistors
Functionally Compatible with Existing 2.5 V/3.3 V LVEL, LVEP, EP
and SG Devices
Pb
Free Packages are Available
termination resistors and accept
Figure 1. Logic Diagram
50
50
V
TCLK
CLK
CLK
V
TCLK
Q3
Q3
Q2
Q2
Q1
Q1
Q0
Q0
http://onsemi.com
*For additional marking information, refer to
Application Note AND8002/D.
MARKING
DIAGRAM*
A
L
Y
W
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb
Free Package
QFN
16
MN SUFFIX
CASE 485G
16
NB7L
14M
ALYW
1
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
ORDERING INFORMATION
(Note: Microdot may be in either location)
