DS_NC12S40A_02072007
11

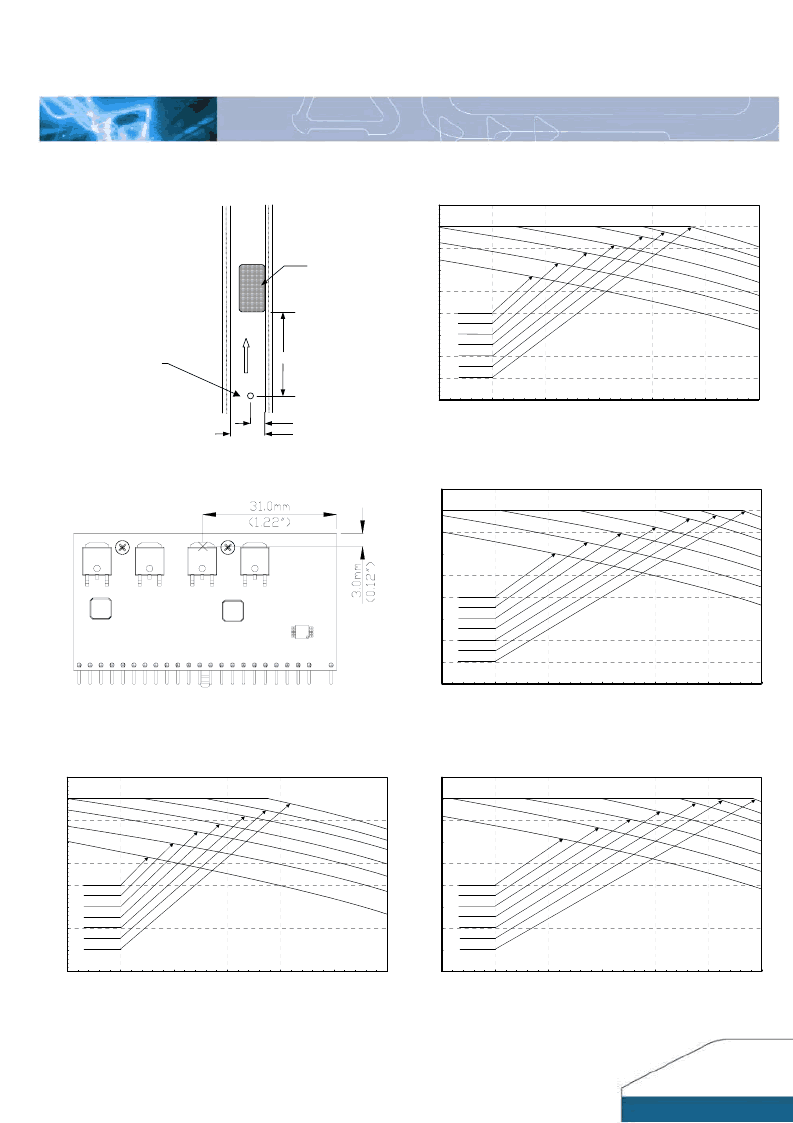

Figure 40:
Output current vs. ambient temperature and air
velocity@ Vout=0.9V(Either Orientation)
NC12S0A0V40(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vout = 0.9V(Either Orientation)
Output Current(A)
0
5
10
15
20
25
30
35
40
45
25
35
45
55
65
85
A75
℃
)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
Figure 39:
Output current vs. ambient temperature and air
velocity@ Vout=1.5V(Either Orientation)
NC12S0A0V40(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vout = 1.5V(Either Orientation)
Output Current(A)
0
5
10
15
20
25
30
35
40
45
25
35
45
55
65
85
A75
℃
)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
Figure 38:
Output current vs. ambient temperature and air
velocity@ Vout=3.3V(Either Orientation)
THERMAL CURVES (NC12S0A0V40)
Test Section for NC12S0A0V40
MODULE
AIR FLOW
19 (0.75”)
38 (1.5”)
50.8 (2.0”)
FACING PWB
PWB
AIR VELOCITY
AND AMBIENT
TEMPERATURE
MEASURED BELOW
THE MODULE
Note: Wind Tunnel Test Setup Figure Dimensions are in
millimeters and (Inches)
Figure 36:
Temperature measurement location
* The allowed maximum hot spot temperature is defined at 125
℃
NC12S0A0V40(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vout = 5V(Either Orientation)
Output Current(A)
0
5
10
15
20
25
30
35
40
45
25
35
45
55
65
85
A75
℃
)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
Figure 37:
Output current vs. ambient temperature and air
velocity@ Vout=5V(Either Orientation)
NC12S0A0V40(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vout = 3.3V(Either Orientation)
Output Current(A)
0
5
10
15
20
25
30
35
40
45
25
35
45
55
65
85
A75
℃
)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
