參數資料
| 型號： | NCP5426SN13T1G |
| 廠商： | ON SEMICONDUCTOR |
| 元件分類： | 基準電壓源/電流源 |
| 英文描述： | LDO Regulator/Vibration Motor Driver |
| 中文描述： | 1.3 V FIXED POSITIVE LDO REGULATOR, PDSO5 |
| 封裝： | LEAD FREE, TSOP-5 |
| 文件頁數： | 1/8頁 |
| 文件大小： | 90K |
| 代理商： | NCP5426SN13T1G |

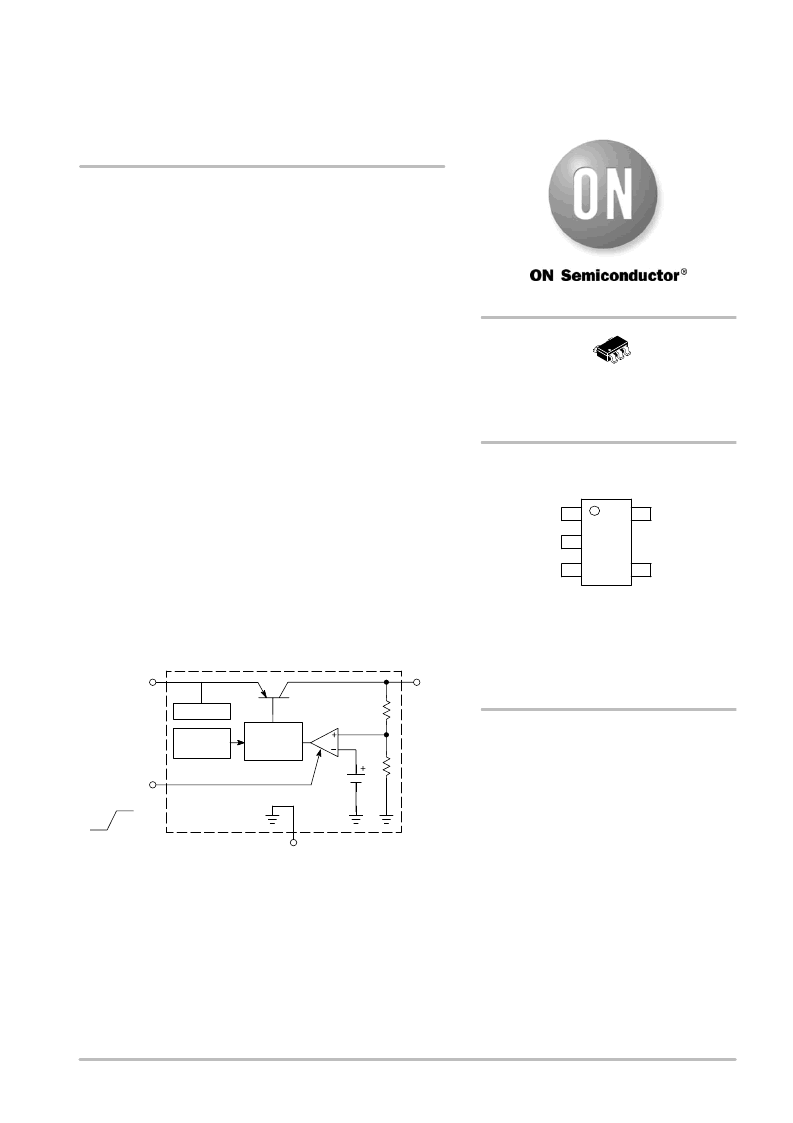

Semiconductor Components Industries, LLC, 2006
February, 2006 Rev. 5
1
Publication Order Number:
NCP5426/D
NCP5426
LDO Regulator/Vibration
Motor Driver
The NCP5426 series of fixed output, 150 mA low dropout linear
regulators are designed to be an economical solution for a variety of
applications. Each device contains a voltage reference unit, an error
amplifier, a PNP power transistor, resistors for setting output voltage,
an under voltage lockout on the input, an enable pin, and current limit
and temperature limit protection circuits.
The NCP5426 is designed for driving a vibration motor using
ceramic capacitors on the output. The device is housed in the
microminiature TSOP5 surface mount package. The NCP5426 is
available in output voltages of 1.2 V to 2.0 V in 0.1 V increments.
Features
Wide Operating Voltage Range to 12 V
Internally Set Output Voltages
Enable Pin for On/Off Control
UVLO on the Input Voltage with Hysteresis
Current and Thermal Protection
Compatible with Ceramic, Tantalum or Aluminum Electrolytic
Capacitors
PbFree Package is Available
Typical Applications
Vibration Motor Driver
Driver w/
Current
Limit
V
in
V
out
Thermal
Shutdown
Enable
GND
OFF
ON
5
1
4
2
Figure 1. Internal Schematic
UVLO
This device contains 47 active transistors.
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
ORDERING INFORMATION
TSOP5
SN SUFFIX
CASE 483
PIN CONNECTIONS AND
MARKING DIAGRAM
1
3
V
out
Enable
2
GND
N/C
4
V
in
5
(Top View)
1
5
http://onsemi.com
x
xxx = Specific Device Code
A
= Assembly Location
Y
= Year
W
= Work Week
= PbFree Package
(Note: Microdot may be in either location)
