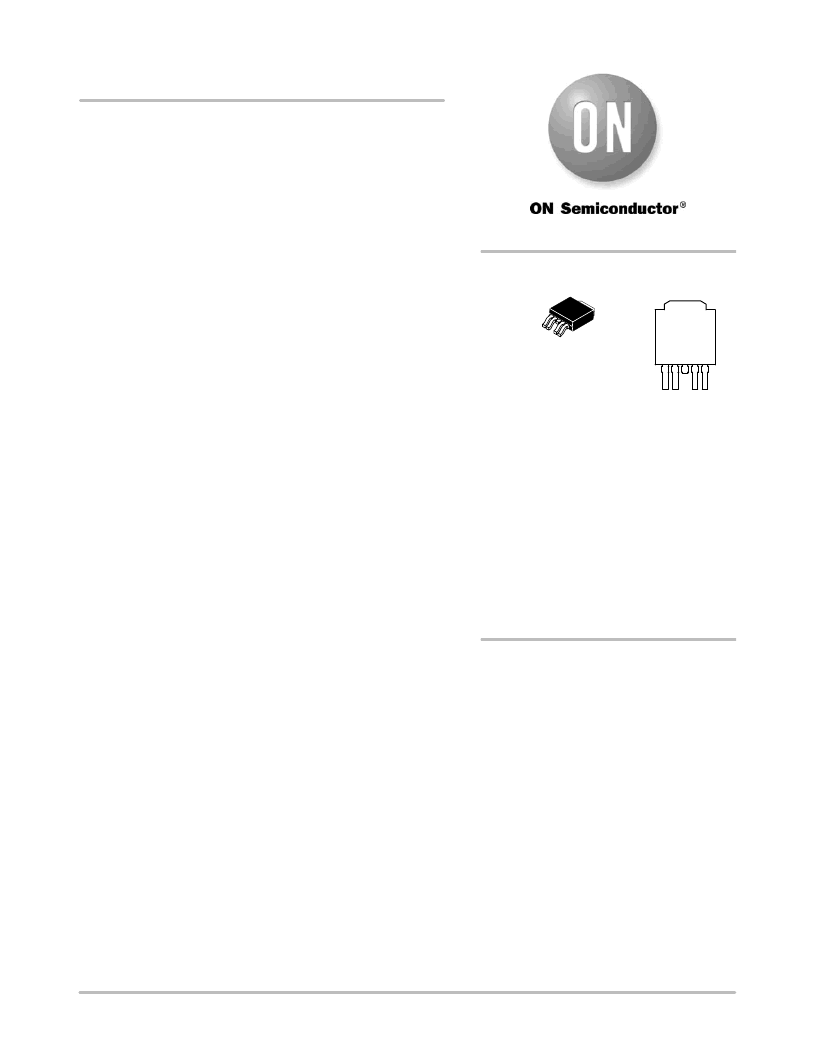

Semiconductor Components Industries, LLC, 2005
July, 2005 Rev. 3
1
Publication Order Number:
NCP5661/D
NCP5661
Low Output Voltage,
UltraFast 1.0 A Low Dropout
Linear Regulator with Enable
The NCP5661 is a high performance, low dropout linear regulator
designed for high power applications that require up to 1.0 A current.
It is offered in both fixed and adjustable output versions. With output
voltages as low as 0.9 V and ultrafast response times for load
transients, the NCP5661 also provides additional features such as
Enable and Error Flag (for the fixed output version), increasing the
utility of this device. A thermally robust, 5 pin DPAK, combined with
an architecture that offers low ground current (independent of load),
provides for a superior highcurrent LDO solution.
Features
UltraFast Transient Response (Settling Time: 13 s)
Low Noise Without Bypass Capacitor (26 V
rms)
Low Ground Current Independent of Load (3.0 mA Maximum)
Fixed/Adjustable Output Voltage Versions
Enable Function
Error Flag (Fixed Output Version)
Current Limit Protection
Thermal Protection
0.9 V Reference Voltage for UltraLow Output Operation
Power Supply Rejection Ratio > 65 dB
These are PbFree Devices
Applications
Servers
ASIC Power Supplies
Post Regulation for Power Supplies
Constant Current Source
Networking Equipment
Gaming and STB Modules
DPAK5
CENTER LEAD CROP
CASE 175AA
1
5
DIAGRAM
http://onsemi.com
MARKING
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
ORDERING INFORMATION
661xG
ALYWW
x
= A for Adjustable Version
B for Fixed 1.2 V
C for Fixed 3.3 V
= Assembly Location
= Wafer Lot
= Year
WW = Work Week
G
= PbFree
A
L
Y
Tab = Ground
Pin:
1. Enable
2. V
in
3. Ground
4. V
out
5. Adj (Adjustable Output)
5. Error Flag (Fixed Output)
