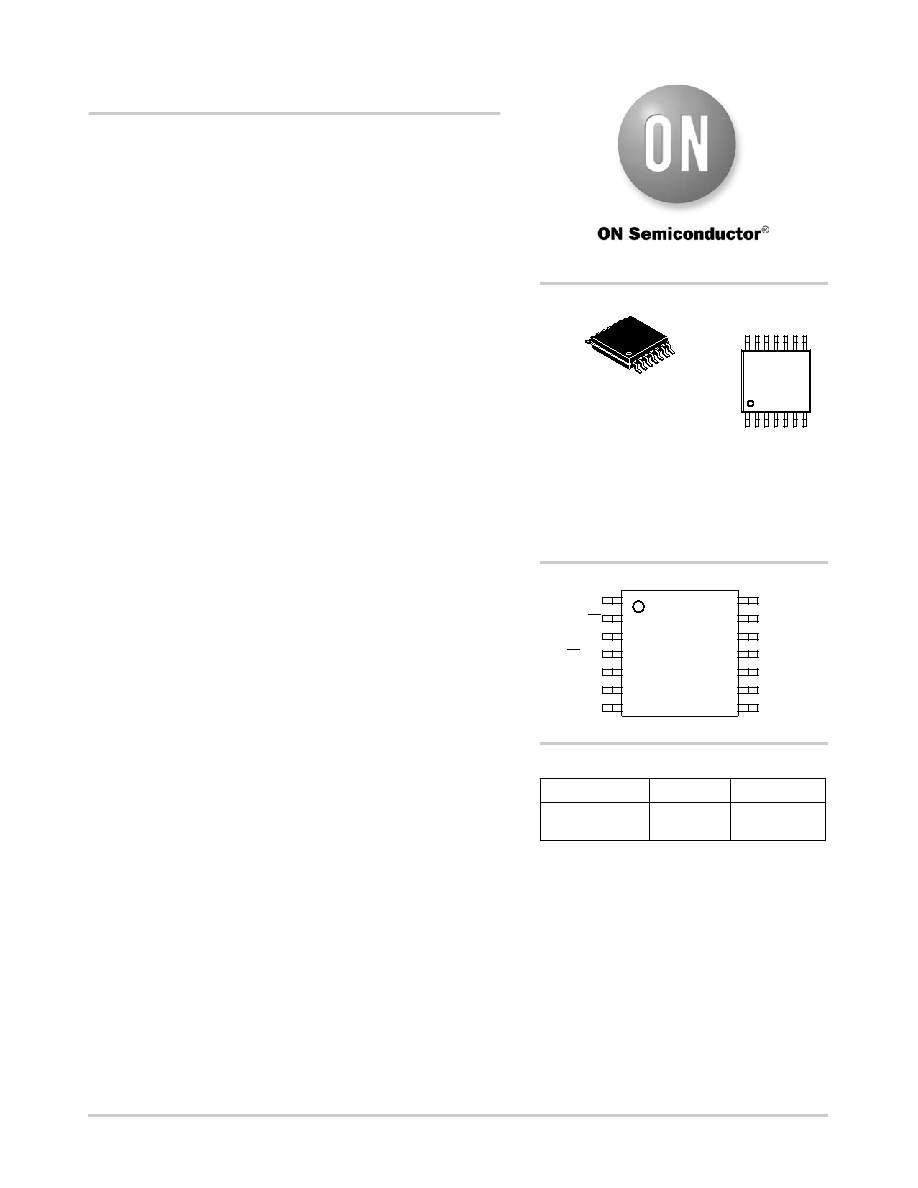

Semiconductor Components Industries, LLC, 2011
April, 2011 Rev. 6
1
Publication Order Number:
NCS2564/D
NCS2564
Four-Channel Video Driver
with Selectable SD / HD
Reconstruction Filters
The NCS2564 is a 4channel high speed video driver with 6th order
Butterworth Reconstruction filters on each channel. A first set of
3channel has selectable Standard Definition (SD) / High Definition
(HD) filters, one per channel. A fourth channel offers an extra filter
driver for driving CVBStype video signal. The NCS2564 is in fact a
combination of a triple SD/HD video driver plus a single CVBS video
driver.
It is designed to be compatible with DigitaltoAnalog Converters
(DAC) embedded in most video processors.
To further reduce power consumption, 2 enable pins are provided
one for the triple driver and another one for the single driver. One pin
allows selecting the filter frequency of the triple driver. All channels
can accept DC or ACcoupled signals. In case of ACcoupled inputs,
the internal clamps are enabled. The outputs can drive both AC and
DC coupled 150
W loads.
Features
3Channel with per Channel a Selectable SixthOrder Butterworth
8/34 MHz Filter
One CVBS Driver Including 6th Order Butterworth 8 MHz Filter
Transparent Clamp
Internal Fixed Gain: 6 dB $0.2
Integrated Level Shifter
AC or DCCoupled Inputs and Outputs
Low Quiescent Current
Shutdown Current 42 mA Typical (Disabled)
Each channel Capable to Drive 2 by 150 W Loads
Wide Operating Supply Voltage Range: +4.7 V to +5.3 V
8 kV ESD Protection (IEC6100042 Compatible)
TSSOP14 Package
These are PbFree Devices
Typical Application
Set Top Box Decoder
DVD Player / Recorder
HDTV
Device
Package
Shipping
ORDERING INFORMATION
TSSOP14
TBD SUFFIX
CASE 948G
MARKING
DIAGRAM
http://onsemi.com
1
14
NCS
2564
ALYWG
G
1
14
NCS2564 = Specific Device Code
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= PbFree Package
NCS2564DTBR2G TSSOP14
(PbFree)
2500 /
Tape & Reel
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
1
2
3
4
5
6
7
14
13
12
11
10
9
8
CVBS_IN
VCC
SD/HD_IN1
SD/HD_IN2
SD/HD_IN3
CVBS_OUT
GND
SD/HD_OUT2
SD/HD_OUT3
SD/HD_EN
PINOUT
CVBS_EN
SD/HD
SD/HD_OUT1
(Top View)
