Semiconductor Components Industries, LLC, 2006
June, 2006
Rev. 22
1
Publication Order Number:
LM358/D

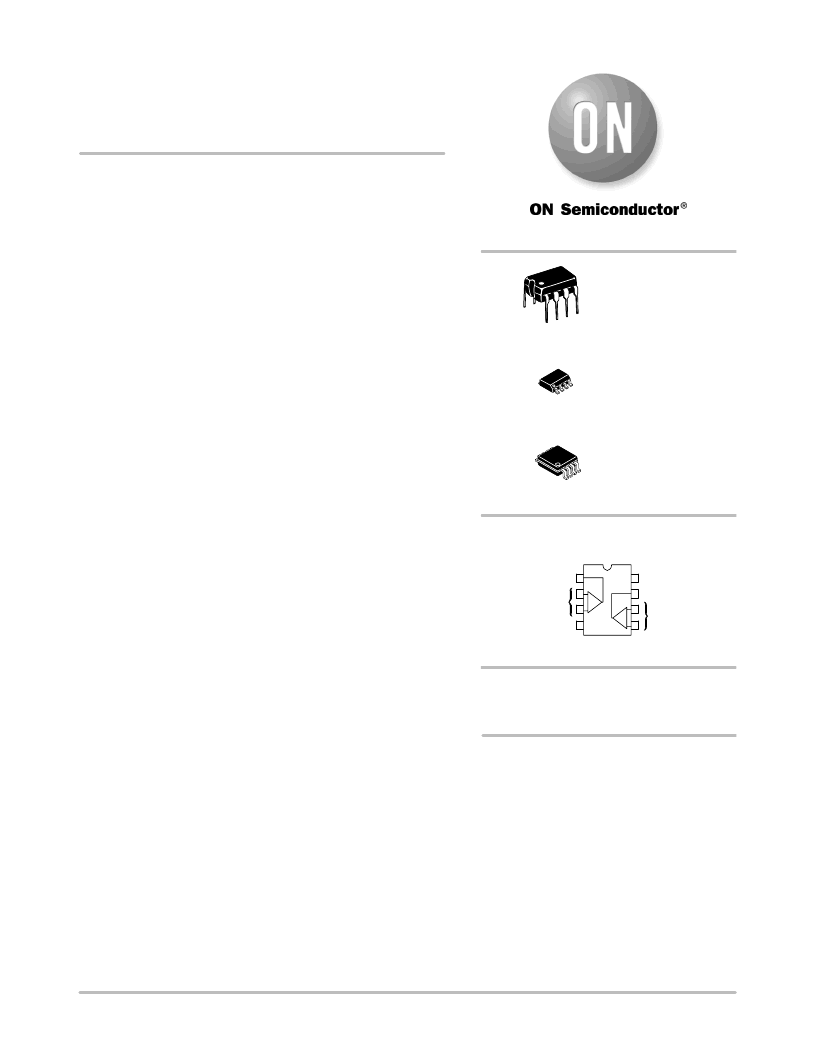

LM258, LM358, LM358A,
LM2904, LM2904A,
LM2904V, NCV2904
Single Supply Dual
Operational Amplifiers
Utilizing the circuit designs perfected for Quad Operational
Amplifiers, these dual operational amplifiers feature low power drain,
a common mode input voltage range extending to ground/V
EE
, and
single supply or split supply operation. The LM358 series is
equivalent to one
half of an LM324.
These amplifiers have several distinct advantages over standard
operational amplifier types in single supply applications. They can
operate at supply voltages as low as 3.0 V or as high as 32 V, with
quiescent currents about one
fifth of those associated with the
MC1741 (on a per amplifier basis). The common mode input range
includes the negative supply, thereby eliminating the necessity for
external biasing components in many applications. The output voltage
range also includes the negative power supply voltage.
Features
Short Circuit Protected Outputs
True Differential Input Stage
Single Supply Operation: 3.0 V to 32 V
Low Input Bias Currents
Internally Compensated
Common Mode Range Extends to Negative Supply
Single and Split Supply Operation
ESD Clamps on the Inputs Increase Ruggedness of the Device
without Affecting Operation
Pb
Free Packages are Available
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
PDIP
8
N, AN, VN SUFFIX
CASE 626
1
8
SOIC
8
D, VD SUFFIX
CASE 751
1
8
PIN CONNECTIONS
V
EE
/Gnd
Inputs A
Inputs B
Output B
Output A
V
CC
+
+
1
2
3
4
8
7
6
5
(Top View)
See general marking information in the device marking
section on page 11 of this data sheet.
DEVICE MARKING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
ORDERING INFORMATION
Micro8
DMR2 SUFFIX
CASE 846A
1
8
http://onsemi.com
