Semiconductor Components Industries, LLC, 2006
May, 2006 Rev. 6
1
Publication Order Number:
NL27WZ00/D

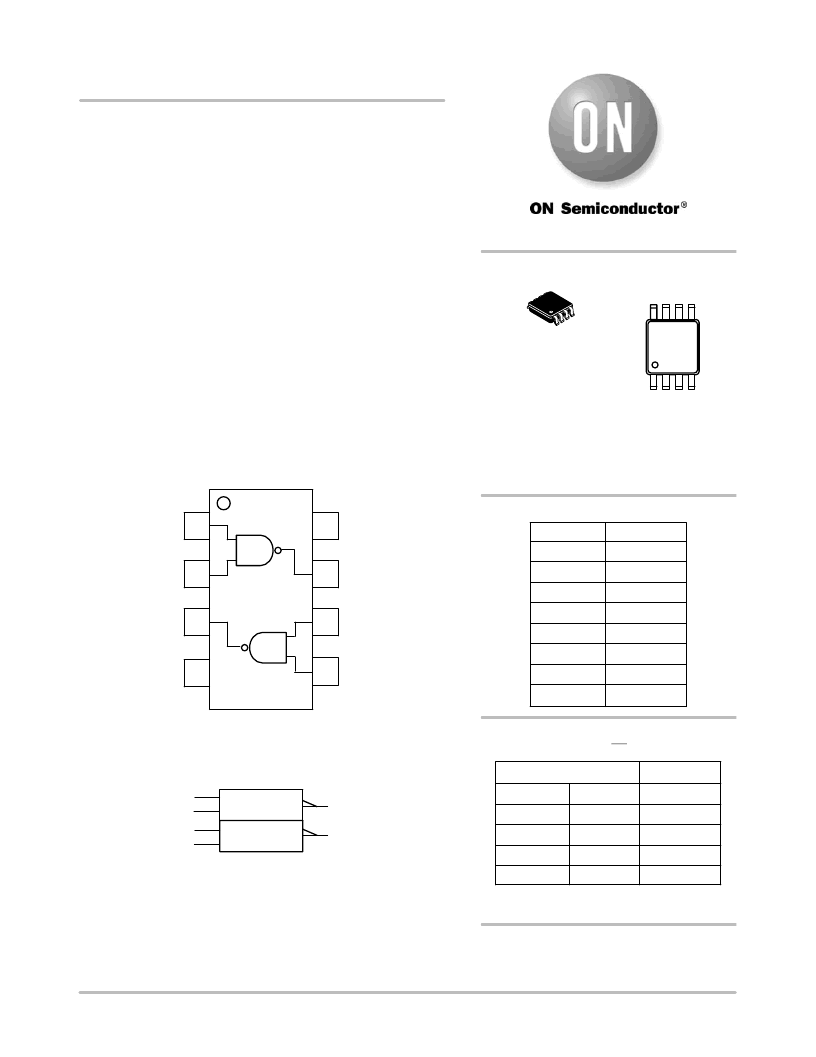

NL27WZ00
Dual 2Input NAND Gate
The NL27WZ00 is a high performance dual 2input NAND Gate
operating from a 1.65 V to 5.5 V supply.
Features
Extremely High Speed: t
PD
2.4 ns (typical) at V
CC
= 5.0 V
Designed for 1.65 V to 5.5 V V
CC
Operation
Over Voltage Tolerant Inputs
LVTTL Compatible Interface Capability With 5.0 V TTL Logic
with V
CC
= 3.0 V
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current Substantially Reduces System
Power Requirements
Replacement for NC7WZ00
Chip Complexity: FET = 112
PbFree Package is Available
A1
1
Figure 1. Pinout
V
CC
B1
GND
2
3
8
7
6
4
5
Y2
Y1
B2
A2
A2
B2
Y2
Figure 2. Logic Symbol
&
Y1
A1
B1
IEEE/IEC
MARKING
DIAGRAM
US8
US SUFFIX
CASE 493
8
1
http://onsemi.com
L1
M
= Specific Device Code
= Date Code*
= PbFree Package
1
8
L1 M
(Note: Microdot may be in either location)
*Date Code orientation may vary depending upon
manufacturing location.
PIN ASSIGNMENT
Pin
1
2
3
4
5
6
7
8
Function
A1
B1
Y2
GND
A2
B2
Y1
V
CC
Inputs
FUNCTION TABLE
Y = AB
B
L
H
L
H
Output
Y
H
L
A
L
L
H
H
H
H
H = HIGH Logic Level
L = LOW Logic Level
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
ORDERING INFORMATION
