Philips Semiconductors
8-bit I
2
C and SMBus I/O port with interrupt,
2-kbit EEPROM and 6 address pins
Product data
PCA9501
2003 Sep 12
5
FUNCTIONAL DESCRIPTION
SW00788
WRITE PULSE
DATA FROM
SHIFT REGISTER
POWER-ON
RESET
READ PULSE
DATA TO
SHIFT REGISTER
V
DD
I/O0 TO I/O7
V
SS
100
μ
A
C
I
S
D
Q
FF
C
I
S
D
Q
FF
TO INTERRUPT LOGIC

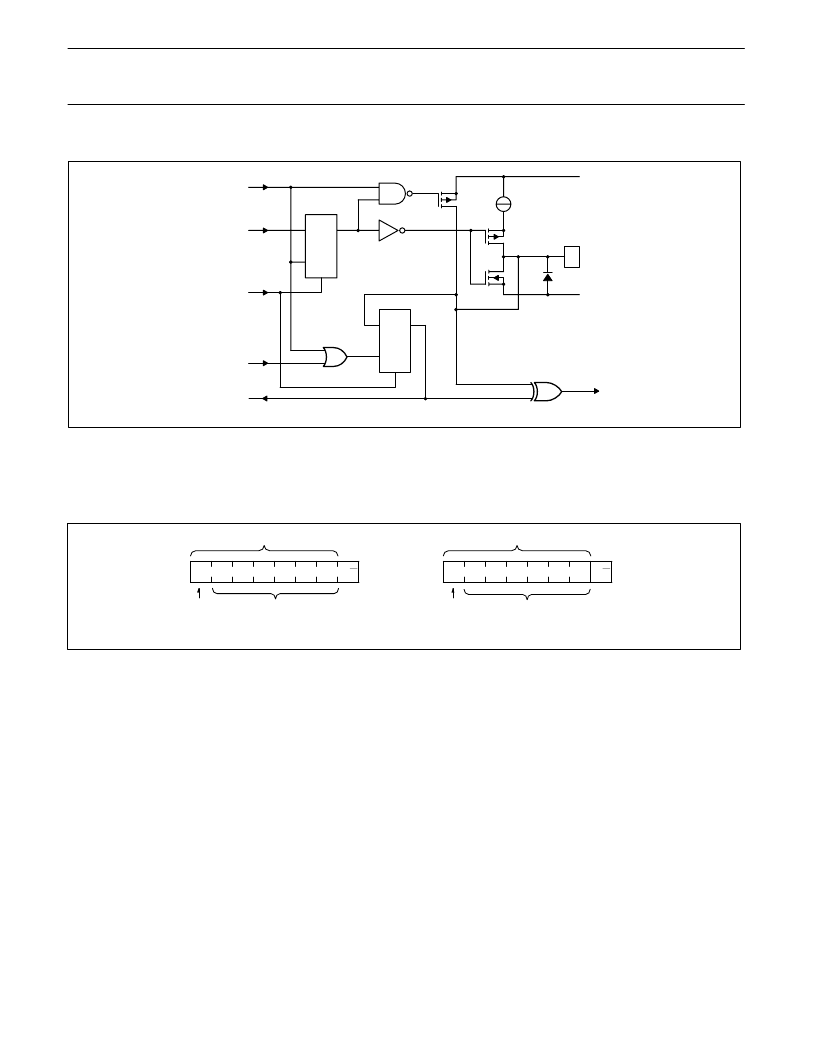

Figure 4. Simplified schematic diagram of each I/O
DEVICE ADDRESSING
Following a START condition the bus master must output the address of the slave it is accessing. The address of the PCA9501 is shown in
Figure 5. Internal pullup resistors are incorporated on the hardware selectable address pins.
0
A5
A4
A3
A2
A1
A0
A5
1
A4
A3
A2
A1
A0
a.
b.
(a) I/O EXPANDER
(b) MEMORY
SW02006
SLAVE ADDRESS
SLAVE ADDRESS
HARDWARE
PROGRAMMABLE
FIXED
FIXED
R/W
R/W
HARDWARE
PROGRAMMABLE
Figure 5. PCA9501 slave addresses
The last bit of the address byte defines the operation to be performed. When set to logic 1 a read is selected while a logic 0 selects a write
operation.
CONTROL REGISTER
The PCA9501 contains a single 8-bit register called the Control Register, which can be written and read via the I
2
C bus. This register is sent
after a successful acknowledgment of the slave address.
It contains the I/O operation information.
