參數資料
| 型號： | PI3A412ZHEX |
| 廠商： | PERICOM SEMICONDUCTOR CORP |
| 元件分類： | 多路復用及模擬開關 |
| 英文描述： | QUAD 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, QCC16 |
| 封裝： | 3 X 3 MM, GREEN, MO-220JWEED, TQFN-16 |
| 文件頁數： | 1/11頁 |
| 文件大小： | 794K |
| 代理商： | PI3A412ZHEX |
1
PS8834B
12/06/06
Features
CMOS Technology for Bus and Analog Applications
Low On-Resistance: 0.4Ω (+2.7V Supply)
Wide VCC Range: +1.6V to +4.2V
ICC = 0.3μA @ TA = +25C
Rail-to-Rail switching throughout Signal Range
Fast Switching Speed: 20ns TYP. at 3.3V
High Off Isolation: -65dB
Crosstalk Rejection: -65dB
Extended Industrial Temperature Range: –40
°C to 85°C
Packaging: ( Pb-free & Green)
– 16-contact TQFN (ZL), 2.5mm x 2.5mm
– 16-contact TQFN (ZH), 3.0mm x 3.0mm
Applications
Cell Phones
PDAs
Portable Instrumentation
Battery Powered
Communications
Computer Peripherals
PI3A412
0.4Ω, 3.3V, Quad SPDT Analog Switch
Description
The PI3A412 is a quad single-pole double-throw (SPDT) CMOS
switch. It can be used as an analog switch or as a low-delay bus
switch. Specied over a wide operating power supply voltage
range, +1.6V to +4.2V, the switch has an On-Resistance of 0.4Ω
at 2.7V.
Control inputs, Ax, tolerates input drive signals up to 5V, indepen-
dent of supply voltage.

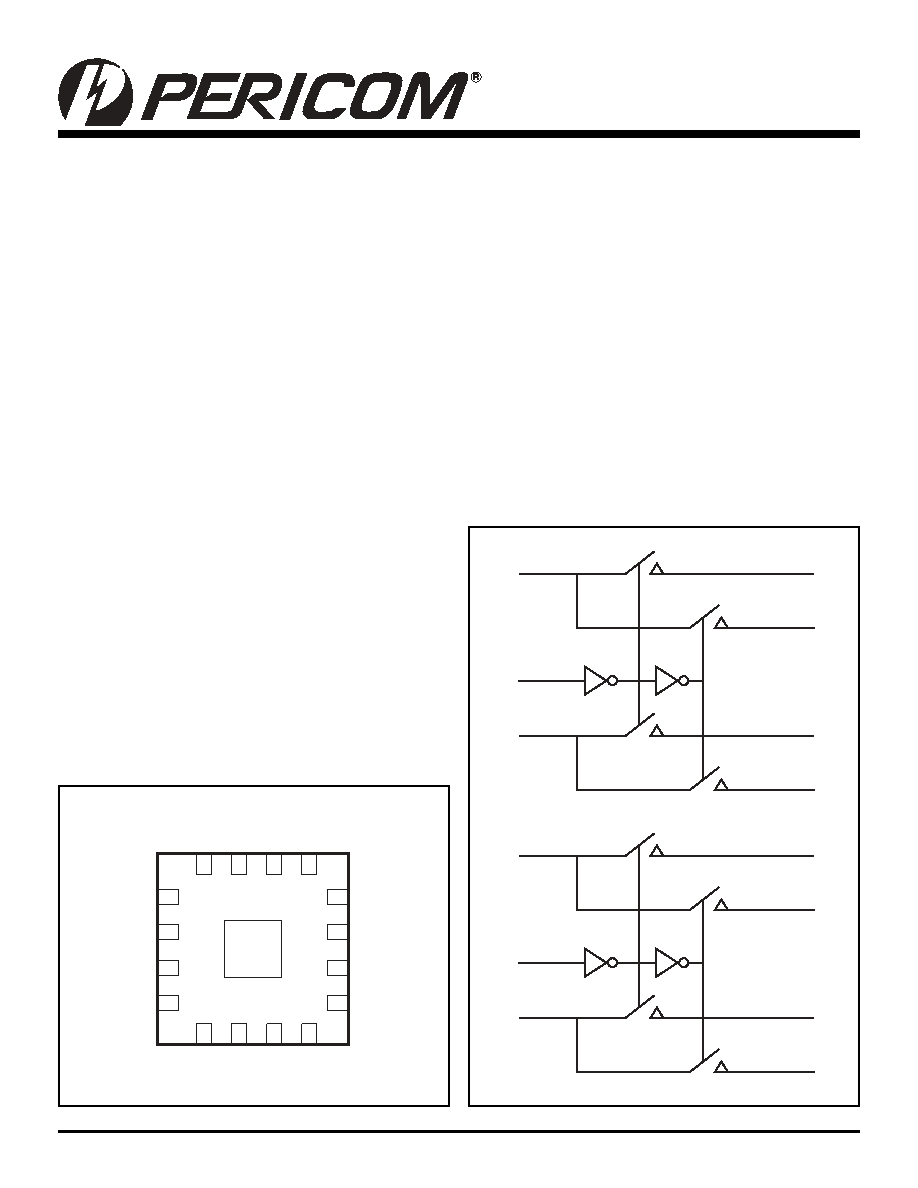

Pin Conguration (top view)
Audio & Video Signal Routing
PCMCIA Cards
Modems
Hard Drives
JTAG Testing
NC
4
V
CC
NO
1
COM
1
GND
COM
3
NO
3
GND
NC
2
NC1
A0
NO2
COM2
COM4
NO4
A1
NC3
1
2
3
4
12
11
10
9
16
15
14
13
5
6
7
8
Block Diagram
COM1
A0
NC1
NO1
COM2
NC2
NO2
COM3
A1
NC3
NO3
COM4
NC4
NO4
06-0322
