參數資料
| 型號： | PKG2611PI |
| 廠商： | ERICSSON POWER MODULES AB |
| 元件分類： | 電源模塊 |
| 英文描述： | 1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE |
| 文件頁數： | 1/14頁 |
| 文件大小： | 755K |
| 代理商： | PKG2611PI |

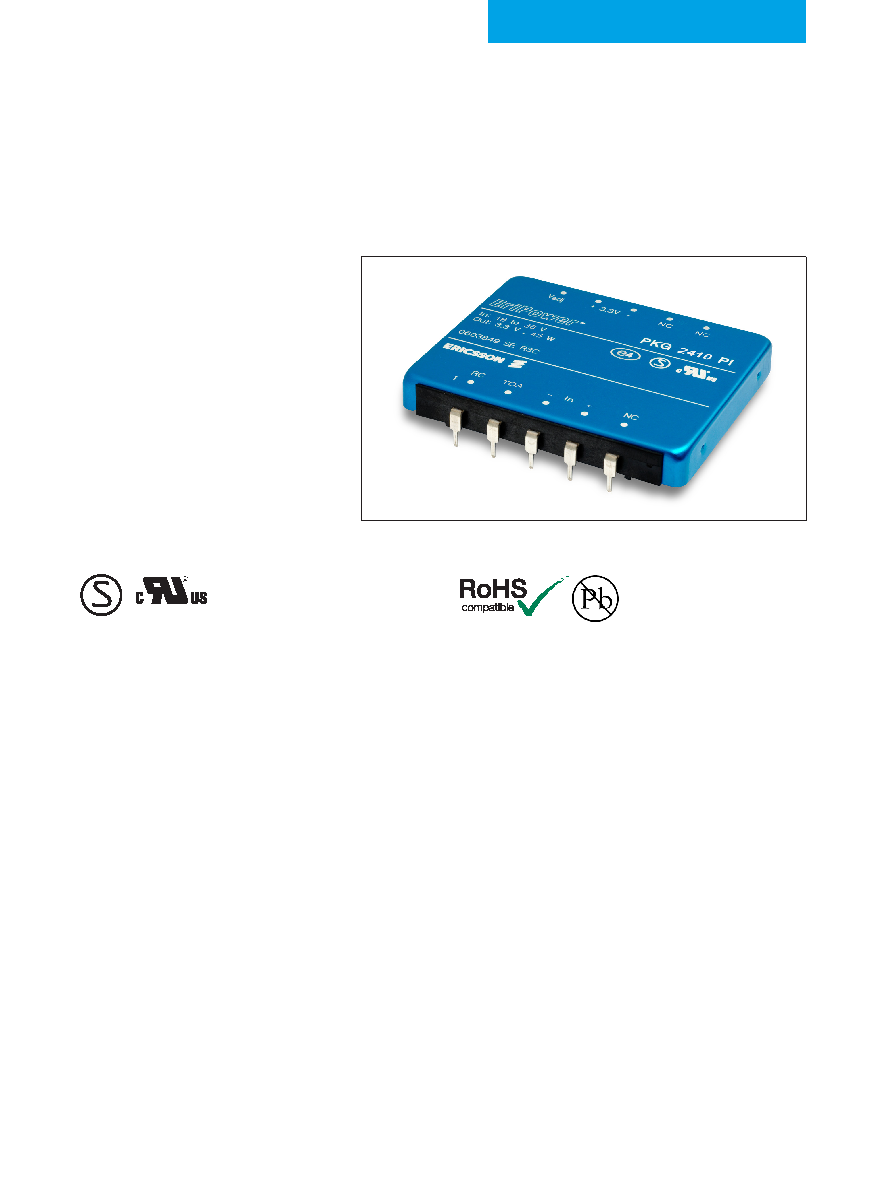

DC/DC converter
Input 18-36 Vdc
Output up to 14A/60W
Size 74.7x63.5x11.0 mm
(2.94x2.50x0.433 in.)
Efficiency typ 84% at 5 V and
full load
1500 V dc isolation voltage
MTBF > 200 years at +75 °C case tem-
perature
Rugged mechanical design and ef-
ficient thermal management, max
+100°C case temperature
EMI measured according to
EN 55 022 and FCC part 15J
The PKG 2000 I series of DC/DC converters are intended
as distributed power sources in decentralized +24 V
DC power systems. They can be used as on-board
distributed DC/DC converters, or serve as building
blocks for more centralized power boards. The PKG
2000 I series provide up to 60 W in single and dual
output versions. The high efficiency makes it possible to
operate over a wide temperature range without any extra
heat-sinks. At forced convection cooling >200 lfm (1 m/
s), the PKG units can deliver full power without heatsinks
up to +60°C ambient. With derated output power it can
also operate in temperature controlled environments with
free convection cooling. By adding external heatsinking,
the temperature range can be extended even further.
Thanks to their peak power capability, the PKG series is
ideal for applications where max power is only required
during short durations e.g. in disc drives.
The PKG series use ceramic substrates with plated
copper in order to achieve good thermal management.
These products are manufactured using highly
automated manufacturing lines with a world-class quality
levels.
Ericsson Power Modules is an ISO 9001/14001 certified
supplier.
E
PKG 2000 I
Preliminary Datasheet
Design for Environment
Meets requirements in high-temperature
lead-free soldering processes.
Safety Approvals
