參數資料
| 型號： | PKM4711EPI |
| 廠商： | ERICSSON POWER MODULES AB |
| 元件分類： | 電源模塊 |
| 英文描述： | 1-OUTPUT 75 W DC-DC REG PWR SUPPLY MODULE |
| 封裝： | ROHS COMPLIANT PACKAGE-8 |
| 文件頁數： | 1/21頁 |
| 文件大小： | 1030K |
| 代理商： | PKM4711EPI |
Ericsson Internal
PRODUCT SPECIFICATION
1 (3)
Prepared (also subject responsible if other)
No.
SEC/S Kevin Zhou
1/1301-BMR 626 Uen
Approved
Checked
Date
Rev
Reference
2007-7-24
C

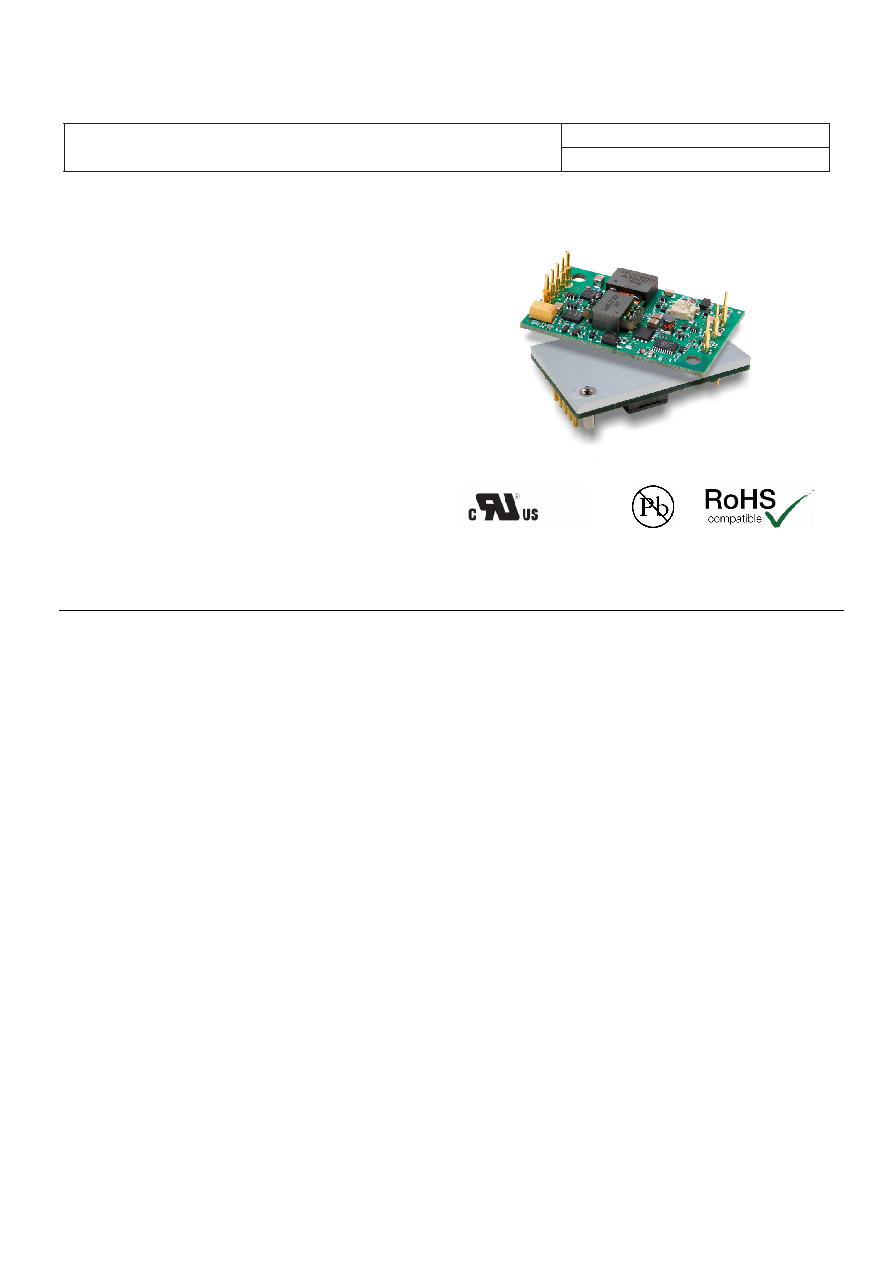

Key Features
Industry standard Quarter-brick
57.9 x 36.8 x 8.5 mm (2.28 x 1.45 x 0.33 in.)
Low profile, max 8.5 mm (0.33 in.)
High efficiency, typ. 91 % at 3.3 Vout half load
1500 Vdc input to output isolation
Meets isolation requirements equivalent to basic
insulation according to IEC/EN/UL 60950
More than 1.5 million hours MTBF
General Characteristics
Suited for narrow board pitch applications
(15 mm/0.6 in)
Output over voltage protection
Input under voltage shutdown
Over temperature protection
Monotonic start-up
Output short-circuit protection
Remote sense
Remote control
Output voltage adjust function
Highly automated manufacturing ensures quality
ISO 9001/14001 certified supplier
Safety Approvals
Design for Environment
Meets requirements in high-
temperature lead-free soldering
processes.
Ericsson Internal
TABLE OF CONTENTS
1 (1)
Prepared (also subject responsible if other)
No.
SEC/S Kevin Zhou
00152-EN/LZT146358
Approved
Checked
Date
Rev
Reference
SEC/S Kevin Zhou
2007-8-9
A
Contents
General Information
............................................................. 2
Safety Specification
............................................................. 3
Absolute Maximum Ratings
............................................................. 4
Product Program
Ordering No.
2.5V, 25A / 62.5W Electrical Specification
PKM 4619E PI ...................................... 5
3.3V, 25A / 82.5W Electrical Specification
PKM 4810E PI ...................................... 8
5.0V, 15A / 75W Electrical Specification
PKM 4711E PI .................................... 11
EMC Specification
........................................................... 14
Operating Information
........................................................... 15
Thermal Consideration
........................................................... 16
Connections
........................................................... 17
Mechanical Information
........................................................... 18
Soldering Information
........................................................... 20
Delivery Information
........................................................... 20
Product Qualification Specification
........................................................... 21
E
PKM 4000E PI series
DC/DC converters, Input 36-75 V, Output up to 25 A/82.5 W
EN/LZT 146 358 R2A Aug 2007
Ericsson Power Modules AB
Technical Specification
