HGTG11N120CN Fairchild代理43A 1200V NPT Series N-Channel IGBT HGTG11N120CN全新現貨  深圳市亨力拓電子有限公司貨源電話：0755-83293082 阮先生

HGTG11N120CN Fairchild代理43A 1200V NPT Series N-Channel IGBT 大批量到貨

HGTG11N120CN Fairchild代理43A 1200V NPT Series N-Channel IGBT

43A, 1200V, NPT Series N-Channel IGBT

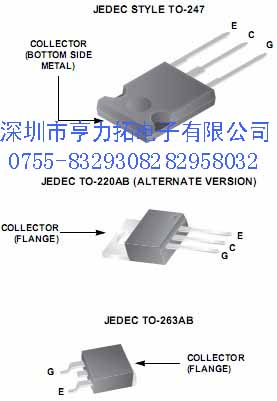

The HGTG11N120CN, HGTP11N120CN, and
HGT1S11N120CNS are Non-Punch Through (NPT) IGBT
designs. They are new members of the MOS gated high
voltage switching IGBT family. IGBTs combine the best
features of MOSFETs and bipolar transistors. This devICe
has the high input impedance of a MOSFET and the low on-
state conduction loss of a bipolar transistor.
The IGBT is ideal for many high voltage switching
applications operating at moderate frequencies where low
conduction losses are essential, such as: AC and DC motor
controls, power supplies and drivers for solenoids, relays
and contactors.
Formerly Developmental Type TA49291.

Features
? 43A, 1200V, TC = 25oC
? 1200V Switching SOA Capability
? Typical Fall Time. . . . . . . . . . . . . . . .  340ns at TJ = 150oC
? Short Circuit Rating
? Low Conduction Loss
? Avalanche Rated
? Thermal Impedance SPICE Model
Temperature Compensating SABER? Model
? Related Literature
- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards”
