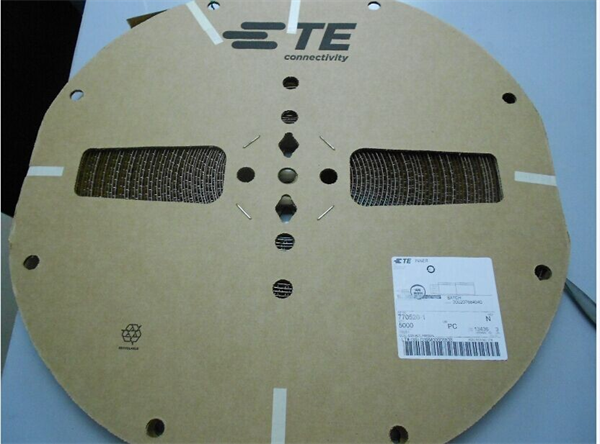

770520-1..jpg)
770520-1....jpg)
Product Type Features
| Product Line | AMPSEAL |
| Product Type | Contact |
| Wire/Cable Type | Discrete Wire |
Mechanical Attachment
| Panel Mount Retention | Without |
Electrical Characteristics
| Contact - Rated Current (A) | 8 – 17 |
| Operating Voltage Reference | AC |
| Operating Voltage (VAC) | 250 |
Termination Features
| Wire/Cable Size (mm2) | 1.5 |
| Wire/Cable Size (AWG) | 16 – 20 |
| Termination Method to Wire/Cable | Crimp |
Body Features
| Wire Type | Stranded |
Contact Features
| Contact Type | Socket |
| Contact Base Material | 0.38 Copper Alloy |
| Contact Plating, Mating Area, Material | Pre-Tin |
| Contact Plating, Mating Area, Thickness (μm [μin]) | 2.5 – 5 [98.42 – 196.85] |
| Underplate Material | Pre-Tin |
| Underplate Material Thickness (μm [μin]) | 2.50 – 5.00 [98.420 – 196.850] |
Configuration Features
| GET 0.64 Connector System | No |
| Strain Relief | Without |
Industry Standards
| RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not reviewed for lead free solder process |
| RoHS/ELV Compliance History | Always was RoHS compliant |
Environmental
| Operating Temperature (°C [°F]) | -40 – +105 [-40 – +221], -40 – +125 [-40 – +257] |
Conditions for Usage
| Applies To | Wire/Cable |
| Accepts Wire Insulation Diameter, Range (mm [in]) | 1.70 – 2.70 [0.067 – 0.106] |
Operation/Application
| Application Use | Wire-to-Wire |
| Contact Transmits (Typical Application) | Signal/Power |
Packaging Features
| Packaging Method | Package |
| Packaging Quantity | 5,000 |
Other
| Brand | AMP |
