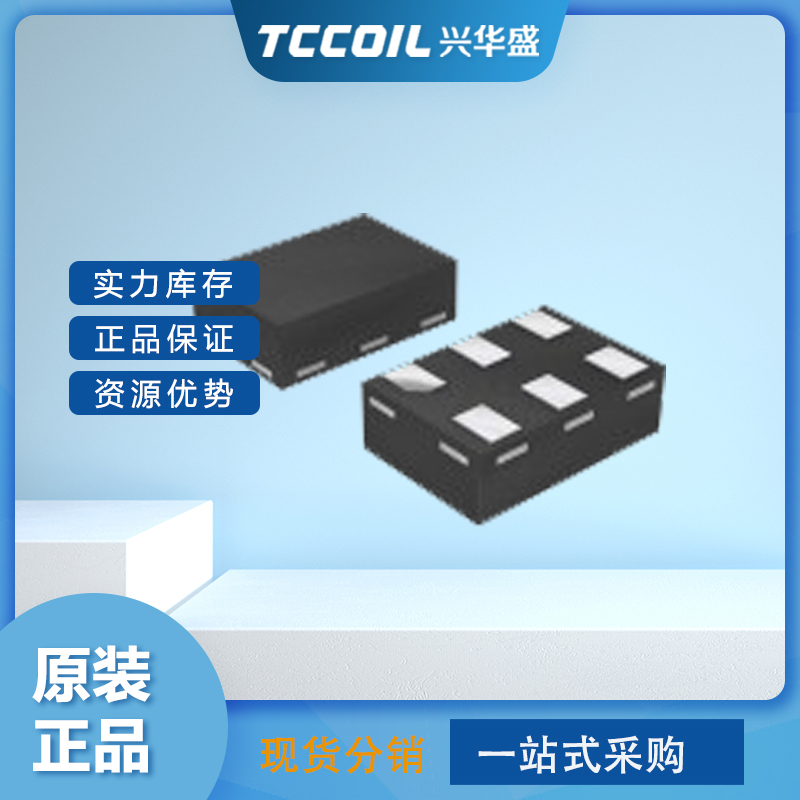

集成電路   射頻放大器

型號：BGU7005

封裝：SOT-886

1. Product profile 1.1 General description The BGU7005 is a Low Noise Amplifier (LNA) for GNSS receiver applications in a plastic leadless 6-pin, extremely small SOT886 package. The BGU7005 requires only one external matching inductor and one external decoupling capacitor. The BGU7005 adapts itself to the changing environment resulting from co-habitation of different radio systems in modern cellular handsets. It has been designed for low power consumption and optimal performance when jamming signals from co-existing cellular transmitters are present. At low jamming power levels it delivers 16.5 dB gain at a noise figure of 0.85 dB. During high jamming power levels, resulting for example from a cellular transmit burst, it temporarily increases its bias current to improve sensitivity. 1.2 Features and benefits ? Covers full GNSS L1 band, from 1559 MHz to 1610 MHz ? Noise figure (NF) = 0.85 dB ? Gain 16.5 dB ? High input 1 dB compression point Pi(1dB) of ?11 dBm ? High out of band IP3i of 9 dBm ? Supply voltage 1.5 V to 3.1 V ? Power-down mode current consumption < 1 ?A ? Optimized performance at low supply current of 4.5 mA ? Integrated matching for the output ? Requires only one input matching inductor and one supply decoupling capacitor ? Input and output DC decoupLED ? ESD protection on all pins (HBM > 2 kV) ? Integrated temperature stabilized bias for easy design ? Small 6-pin leadless package 1 mm ? 1.45 mm ? 0.5 mm ? 110 GHz transit frequency - SiGe:C technology
