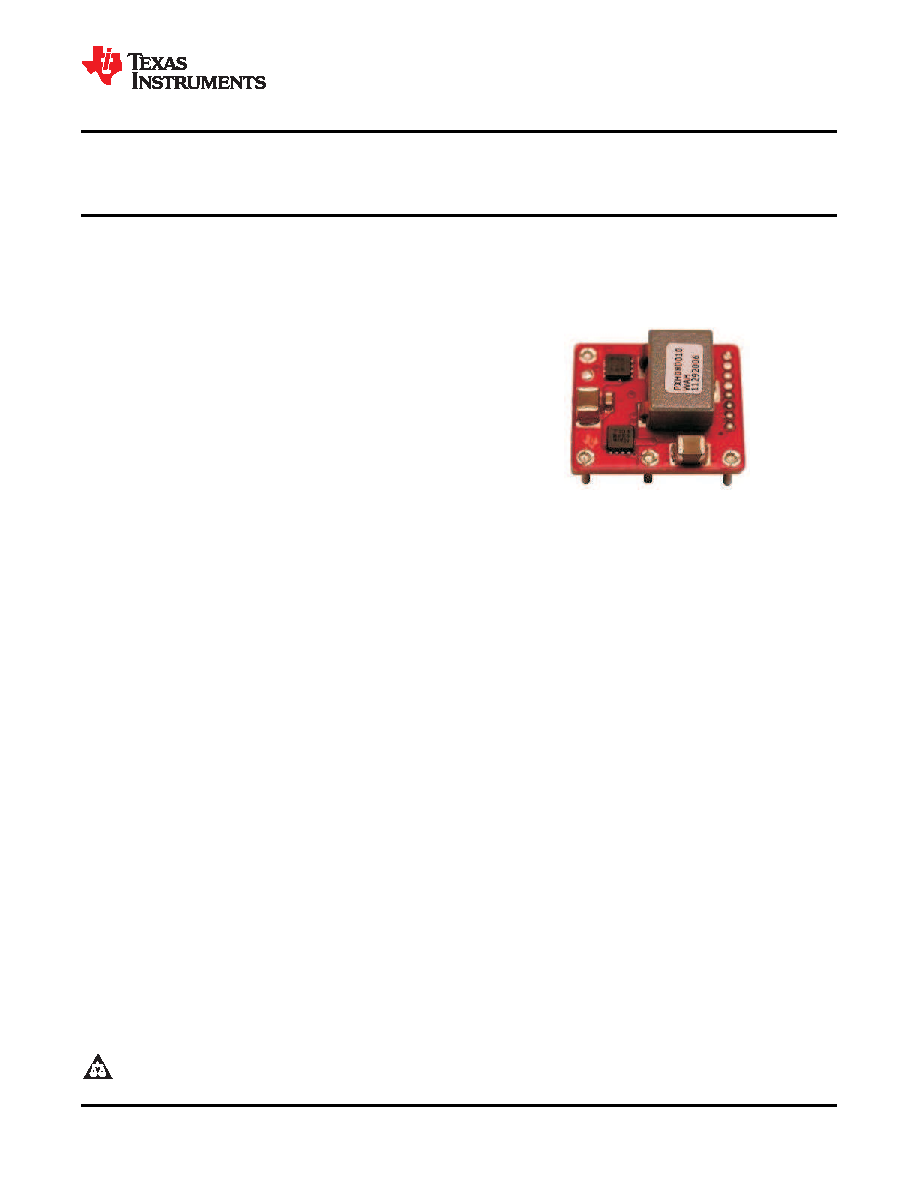

www.ti.com
SLTS292A – JUNE 2009 – REVISED FEBRUARY 2010
6-A, 4.75-V TO 14-V, NON-ISOLATED,
DIGITAL POWERTRAIN MODULE
Check for Samples: PTD08A006W
1
FEATURES
APPLICATIONS
Digital Power Systems
2
Up to 6-A Output Current
using UCD9XXX Digital Controllers
4.75-V to 14-V Input Voltage
Programmable Wide-Output Voltage
(0.7 V to 3.6 V)
Efficiencies up to 96%
Digital I/O
–
PWM signal
–
INHIBIT
–
Current limit flag (FAULT)
–
Sychronous Rectifier Enable (SRE)
Analog I/O
–
Temperature
–
Output currrent
Safety Agency Approvals: (Pending)
–
UL/IEC/CSA-C22.2 60950-1
Operating Temperature: –40°C to 85°C
DESCRIPTION
The PTD08A006W is a high-performance 6-A rated, non-isolated digital PowerTrain module. This module is the
power conversion section of a digital power system which incorporates TI's UCD7230 MOSFET driver IC. The
PTD08A006W must be used in conjunction with a digital power controller such as the UCD9240 or UCD9110
family. The PTD08A006W receives control signals from the digital controller and provides parametric and status
information back to the digital controller. Together, PowerTrain modules and a digital power controller form a
sophisticated, robust, and easily configured power management solution.
Operating from an input voltage range of 4.75 V to 14 V, the PTD08A006W provides step-down power
conversion to a wide range of output voltages from, 0.7 V to 3.6 V. The wide input voltage range makes the
PTD08A006W particularly suitable for advanced computing and server applications that utilize a loosely
regulated 8-V, 9.6-V or 12-V intermediate distribution bus. Additionally, the wide input voltage range increases
design flexibility by supporting operation with tightly regulated 5-V or 12-V intermediate bus architectures.
The module incorporates output over-current and temperature monitoring which protects against most load faults.
Output current and module temperature signals are provided for the digital controller to permit user defined
over-current and over-temperature warning and fault scerarios.
The module uses double-sided surface mount construction to provide a low profile and compact footprint.
Package options include both through-hole and surface mount configurations that are lead (Pb) - free and RoHS
compatible.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2
POWERTRAIN is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright 2009–2010, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
