For technical support and further information, visit http://power.ti.com

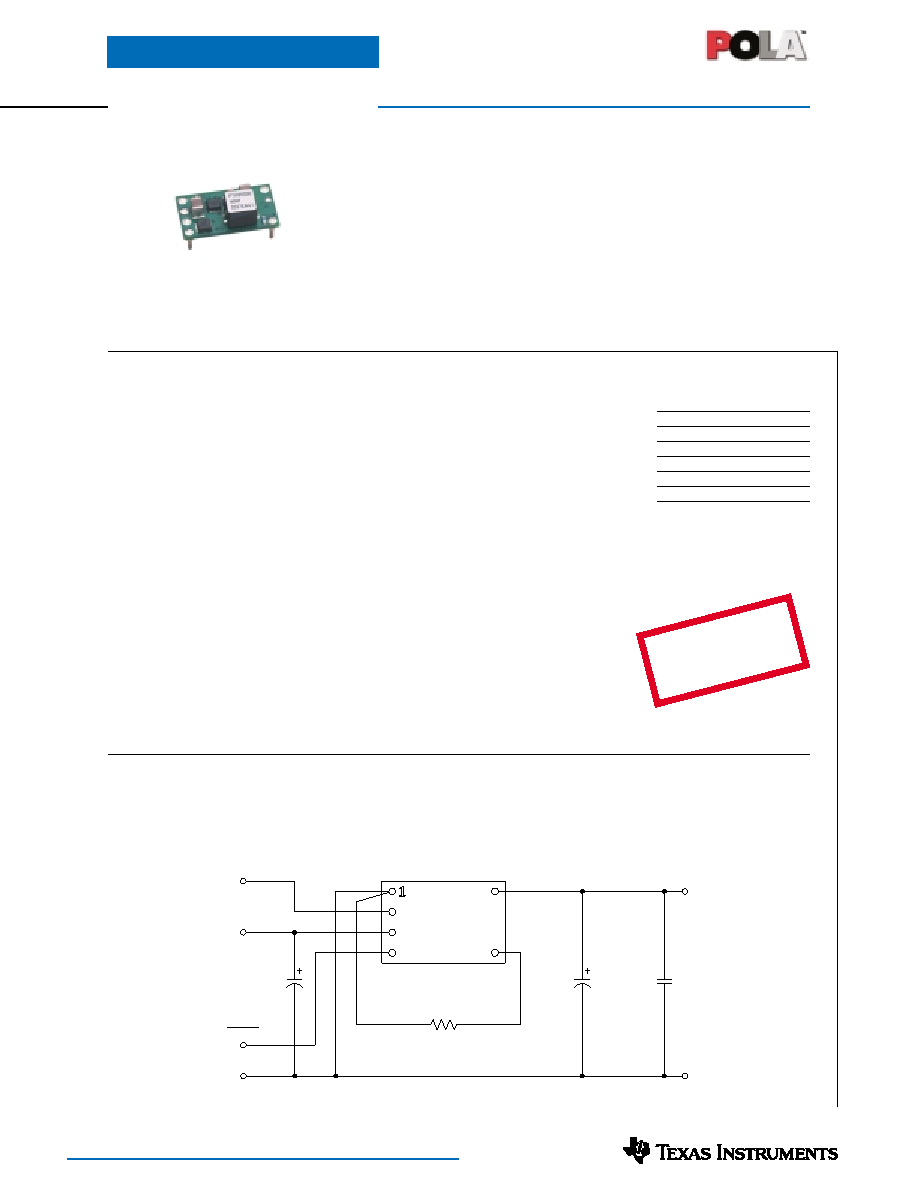

6-A, 3.3-V Input Non-Isolated
Wide-Output Adjust Power Module
Features
Up to 6-A Output Current
3.3-V Input Voltage
Wide-Output Voltage Adjust
(0.8 V to 2.5 V)
Efficiencies up to 94 %
103 W/in Power Density
On/Off Inhibit
Pre-Bias Startup
Under-Voltage Lockout
Operating Temp: –40 to +85 °C
Auto-Track Sequencing
Output Over-Current Protection
(Non-Latching, Auto-Reset)
IPC Lead Free 2
Safety Agency Approvals:
UL 1950, CSA 22.2 950, EN60950
VDE (Pending)
Point-of-Load Alliance (POLA)
Compatible
Auto-Track
Sequencing
Pin Configuration
Pin
Function
1
GND
2
Track
3Vin
4
Inhibit *
5Vo Adjust
6Vout
* Denotes negative logic:
Open
= Normal operation
Ground = Function active
NOMINAL SIZE =
0.87 in x 0.5 in
(22,1 mm x 12,57 mm)
PTH03050W —3.3-V Input
SLTS212C – MAY 2003 – REVISED MAY 2004
Standard Application
Description
The PTH03050 is one of the smallest
non-isolated power modules from Texas
Instruments that features Auto-Track.
Auto-Track simplifies supply voltage
sequencing in power systems by enabling
modules to track each other, or any other
external voltage, during power up and
power down.
Although small in size (0.87 in
× 0.5 in),
these modules are rated for up to 6 A of
output current, and are an ideal choice in
applications where space, performance,
and a power-up sequencing capability are
important attributes.
The product provides high-performance
step-down conversion from a 3.3-V input
bus voltage. The output voltage of the
PTH03050W can be set to any voltage
Rset = Required to set the output voltage to a value
higher than 0.8 V. (See spec. table for values)
Cin = Required 100 F
Co1 = Optional 100 F capacitor
Co2 = Optional 10 F ceramic capacitor for reduced
output ripple.
over the range, 0.8 V to 2.5 V, using a
single resistor.
Other operating features include an
on/off inhibit, output voltage adjust (trim),
and output over-current protection. For
high efficiency these parts employ a
synchronous rectifier output stage, but a
pre-bias hold-off capability ensures that
the output will not sink current during
startup.
Target applications include telecom,
industrial, and general purpose circuits,
including low-power dual-voltage systems
that use a DSP, microprocessor, ASIC, or
FPGA.
Package options include both through-
hole and surface mount configurations.
V
IN
Inhibit
GND
V
OUT
Track
R
SET
1 %, 0.1 W
(Required)
Co
1
100 F
Electrolytic
(Optional)
C
IN
100 F
(Required)
Co
2
10 F
Ceramic
(Optional)
PTH03050W
(Top View)
1
5
2
3
4
6
