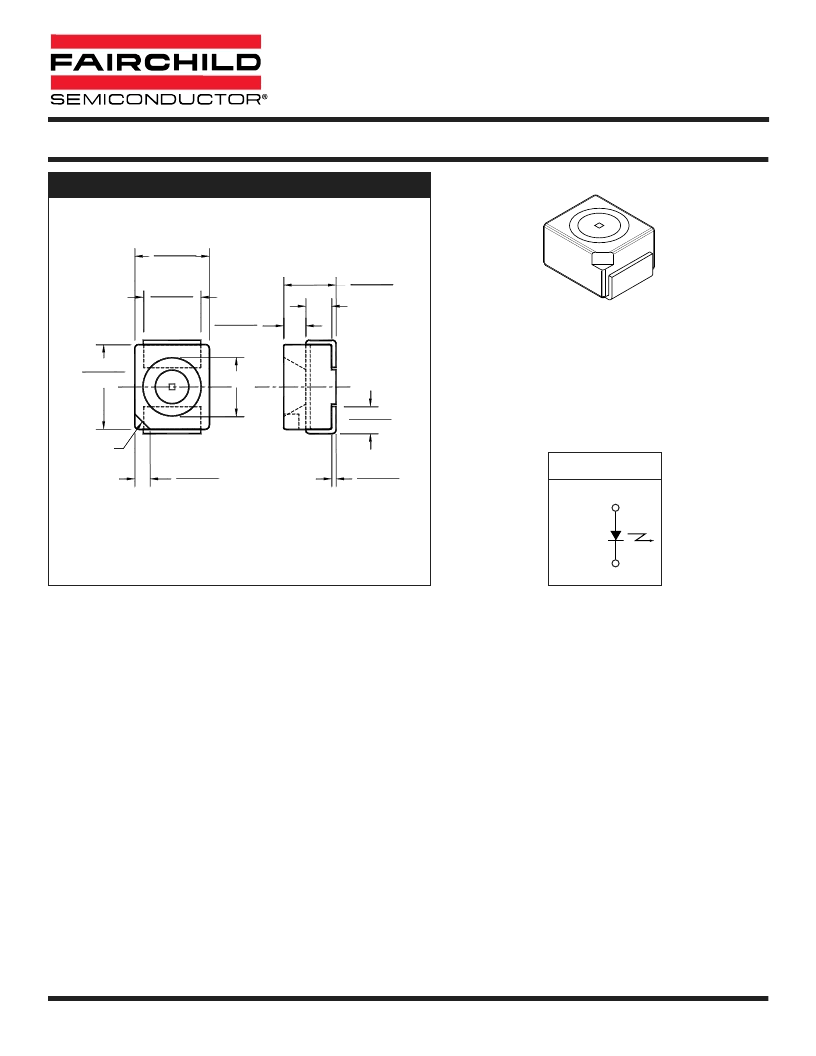

2001 Fairchild Semiconductor Corporation
DS300196
5/14/01
1 OF 4
www.fairchildsemi.com
DESCRIPTION
The QEB441 is a 730 nm AlGaAs LED
e
ncapsulated in a PLCC-2 package.
QEB441
FEATURES
D
= 730 nm
Chip Material: AlGaAs double heterojunction
Surface Mount PLCC-2 package
Wide Emission Angle, 120°
High Power
Tape and Reel option: .TR
ANODE
CATHODE
SCHEMATIC
0.094 (2.4)
ANODE
0.118 (3.0)
0.102 (2.6)
0.043 (1.1)
0.020 (0.5)
0.083 (2.1)
0.067 (1.7)
0.035 (0.9)
0.028 (0.7)
0.024 (0.6)
0.016 (0.4)
0.134 (3.4)
0.118 (3.0)
0.091 (2.3)
0.083 (2.1)
0.007 (.18)
0.005 (.12)
.041 (0.1)
PACKAGE DIMENSIONS
NOTES:
1. Dimensions are in inches (millimeters)
2. Tolerance of ± .010 (.25) on all non nominal dimensions
unless otherwise specified.
SURFACE MOUNT INFRARED
LIGHT EMITTING DIODE
