參數資料
| 型號： | QEB50-48S3P3 |
| 廠商： | Electronic Theatre Controls, Inc. |
| 元件分類： | DC/DC變換器 |
| 英文描述： | 50 WATTS SINGLE OUTPUT DC-DC CONVERTER |
| 中文描述： | 50瓦單輸出DC - DC變換器 |
| 文件頁數： | 2/2頁 |
| 文件大小： | 104K |
| 代理商： | QEB50-48S3P3 |
Model
Number
Input
Range
Output
Voltage
Output
Current
Eff
(6)
(%)
Load
regulation
QEB50-48S1P8
QEB50-48S2P5
QEB50-48S3P3
QEB50-48S05
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
1.8 VDC
2.5 VDC
3.3 VDC
5 VDC
20A
20A
15A
10A
87
88
90
91
5.4mV
7.5mV
10mV
15mV
PRODUCT OPTIONS TABLE
Option
Suffix
Negative remote ON/OFF logic, 0.20” pin length (standard)
-
Negative remote ON/OFF logic, 0.145” pin length
-L
Negative remote ON/OFF logic, 0.11” pin length
-K
Positive remote ON/OFF logic, 0.20” pin length
-P
Positive remote ON/OFF logic, 0.145” pin length
-S
Positive remote ON/OFF logic, 0.11” pin length
-M
Note
1.
Maximum output deviation is 10% inclusive of trim. If remote sense is not being used, the +V sense should be connected to its corresponding
+OUTPUT and likewise the –sense should be connected to its corresponding –OUTPUT.
An external filter capacitor is required for normal operation. The capacitor should be capable of handing 1A ripple current for 48V models. Power mate
suggest: Nippon chemi-con KMF series, 220 F/100V, ESR 90m .
The negative / positive logic and pin length are optional ( see table ). The pin voltage is referenced to negative input.
Heat sink is optional and P/N
7G-0029
7G-0030
7G-0031
7G-0032.
The QEB50 meets level A and level B conducted emissions only with external components connected before the input pin to the converter.
Typical value at nominal input voltage and full load
BASEPLATE GROUNDING
Base-plate should be grounded at one of the four screw bolts prior to operation.
The converter is provided by basic insulation.
2.
3.
4.
5.
6.
7.
8.
PIN
1
2
3
4
5
6
7
8
Define
- INPUT
ON/OFF
+ INPUT
- OUTPUT
- SENSE
TRIM
+ SENSE
+ OUTPUT

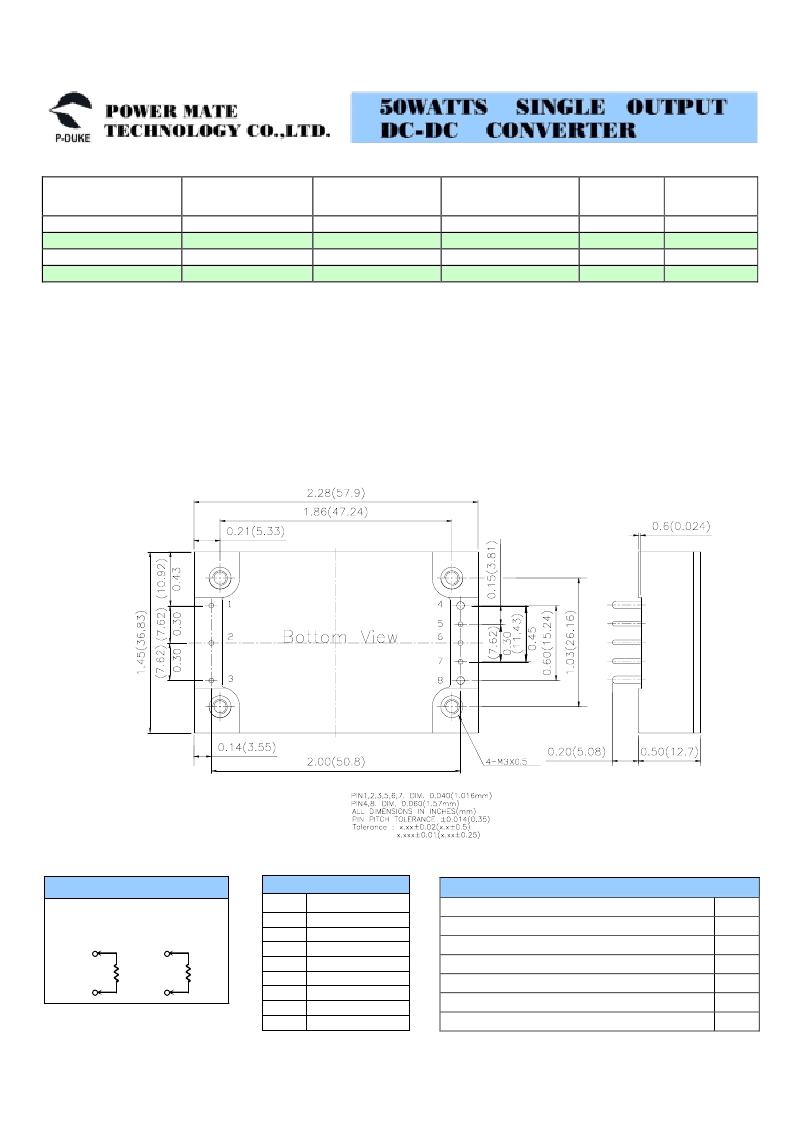

PIN CONNECTION
Output can be externally trimmed by
using the method shown below.
EXTERNAL OUTPUT TRIMMING
7
6
TRIM UP
R
U
6
5
TRIM DOWN
R
D
Example
QEB50-48S3P3-P
(7)
