1
IDTQS3245
HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH
INDUSTRIAL TEMPERATURE RANGE
APRIL 2000
2000 Integrated Device Technology, Inc.
DSC-5753/1
c
IDTQS3245
INDUS T RIAL T E MPE RAT URE RANGE
QUICKSWITCH
PRODUCTS
HIGH-SPEED CMOS
QUICKSWITCH
8-BIT BUS SWITCH

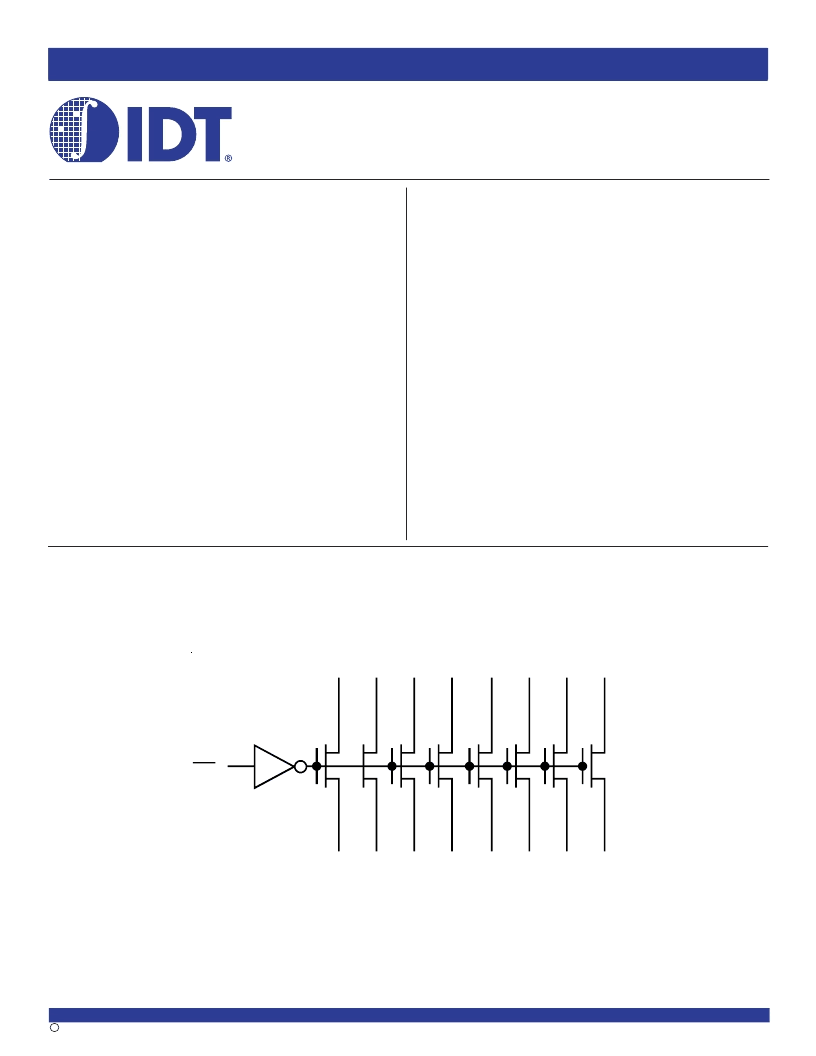

FUNCTIONAL BLOCK DIAGRAM
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
FEATURES:
Enhanced N channel FET with no inherent diode to Vcc
5
bidirectional switches connect inputs to outputs
Pin compatible with the 74F245, 74FCT245, and 74FCT245T
Low power CMOS proprietary technology
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
TTL-compatible control inputs
Available in SOIC, QSOP, and TSSOP packages
APPLICATIONS:
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Power conservation
Capacitance reduction and isolation
Logic replacement (data processing)
Clock gating
Bus switching and isolation
DESCRIPTION:
The QS3245 provides a set of eight high-speed CMOS TTL-compatible
bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/
LS245 8-bit transceivers. The low ON resistance of the QS3245 allows
inputs to be connected to outputs without adding propagation delay and
without generating additional ground bounce noise. The Output Enable
(
OE
) signal turns the switches on simlar to the
OE
signal of the 74’245.
QuickSwitch devices provide an order of magnitude faster speed than
conventional logic devices.
The QS3245 is characterized for operation at -40°C to +85°C.
B
0
OE
A
0
B
1
A
1
B
2
A
2
B
3
A
3
B
4
A
4
B
5
A
5
B
6
A
6
B
7
A
7
