J–27
J
S
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com

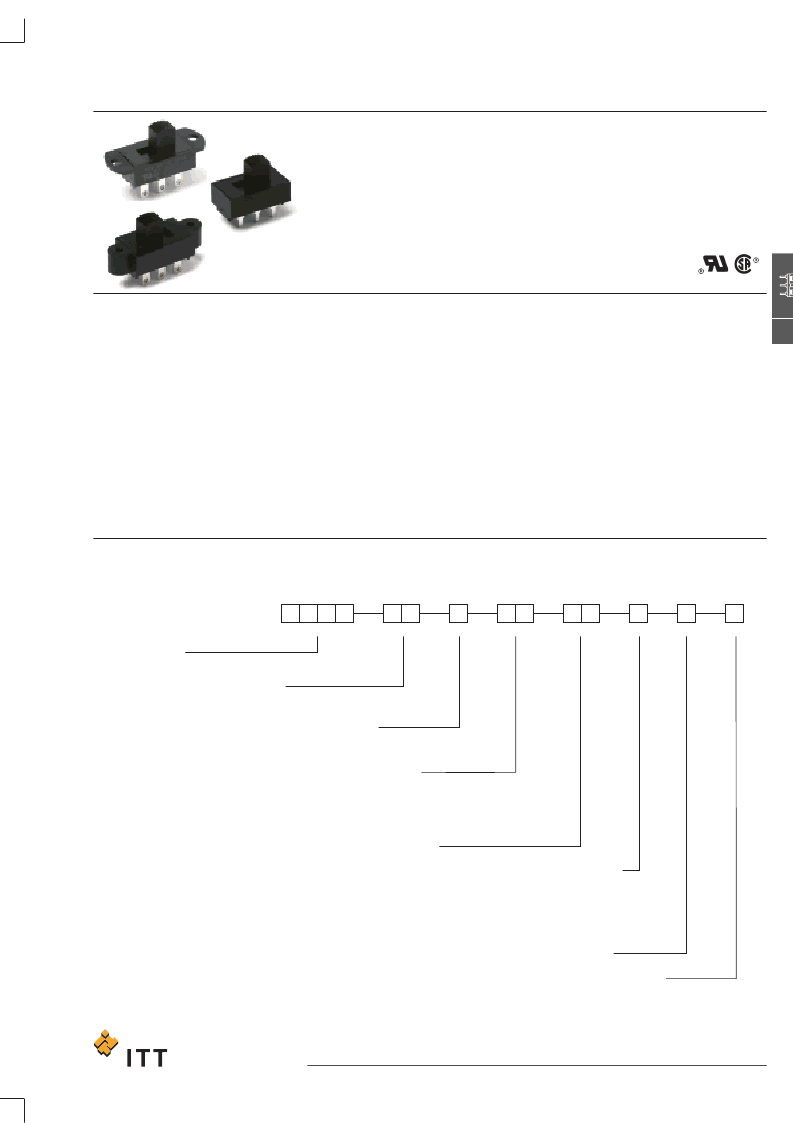

C&K S Series
Slide Switches
Models Available
Features/Benefits
6 to 15 AMPS
Enclosed housing
PC and Snap-in panel mounting
Reversing option
RoHS compliant
Typical Applications
Portable tools
Small appliances
Floor care products
Specifications
CONTACT RATING: Q contact material (S1XX, S2XX Models):
6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @
125 V DC (UL/CSA). (S5XX, S6XX Models): 12 AMPS @
125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA).
(S7XX, S8XX Models): 15 AMPS @ 125 V AC; 6AMPS @
250 V AC (UL/CSA). See page J-31 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -30oC to +65oC
STORAGE TEMPERATURE: -30oC to +85oC
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J–28 through J–31. For additional options not shown in catalog, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
TOP PLATE: 6/6 nylon (UL94V-2), black.
ACTUATOR: 6/6 nylon (UL94V-2), black (standard).
CONTACTS: Q contact material: Copper, silver plated. See page
J-31 for additional contact materials.
TERMINALS: Q contact material: Copper, silver plated. See page
J-31 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
For the latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Switch Function
S101
SPST, 6 AMPS
S202
(DPDT, 6 AMPS
S802
DPDT, 15 AMPS
S102
SPDT, 6AMPS
S112
SPDT, mom., 6 AMPS
S201
DPST, 6 AMPS
S602
DPDT, 12 AMPS
S701
SPST, 15 AMPS
S702
SPDT, 15 AMPS
Mounting Style
SS
Panel with mounting ears
MS
PC thru-hole
S2
Snap-in panel with blacktop plate
TS
Panel with mounting ears
Detent
1
With detent
2
Without detent
Actuator
03
.335" high
04
.500" high
09
.250" high
12
Screwdriver slot
(with marking)
13
Screwdriver slot
(without marking)
C2
Black cap
C3
Red cap
C5
Yellow cap
Contact Material
Q
Silver
B
Gold
G
Gold over silver
Seal
NONE
No seal
E
Epoxy seal
Housing Markings
NONE
No markings
D
ON-OFF
L
ON
M
ON-OFF
N
Red rectangle on one end
Terminations
03
Solder lug with hole
02
PC Thru-hole
04
PC Thru-hole
07
Quick connect
08
PC Thru-hole
WC
Wire lead
