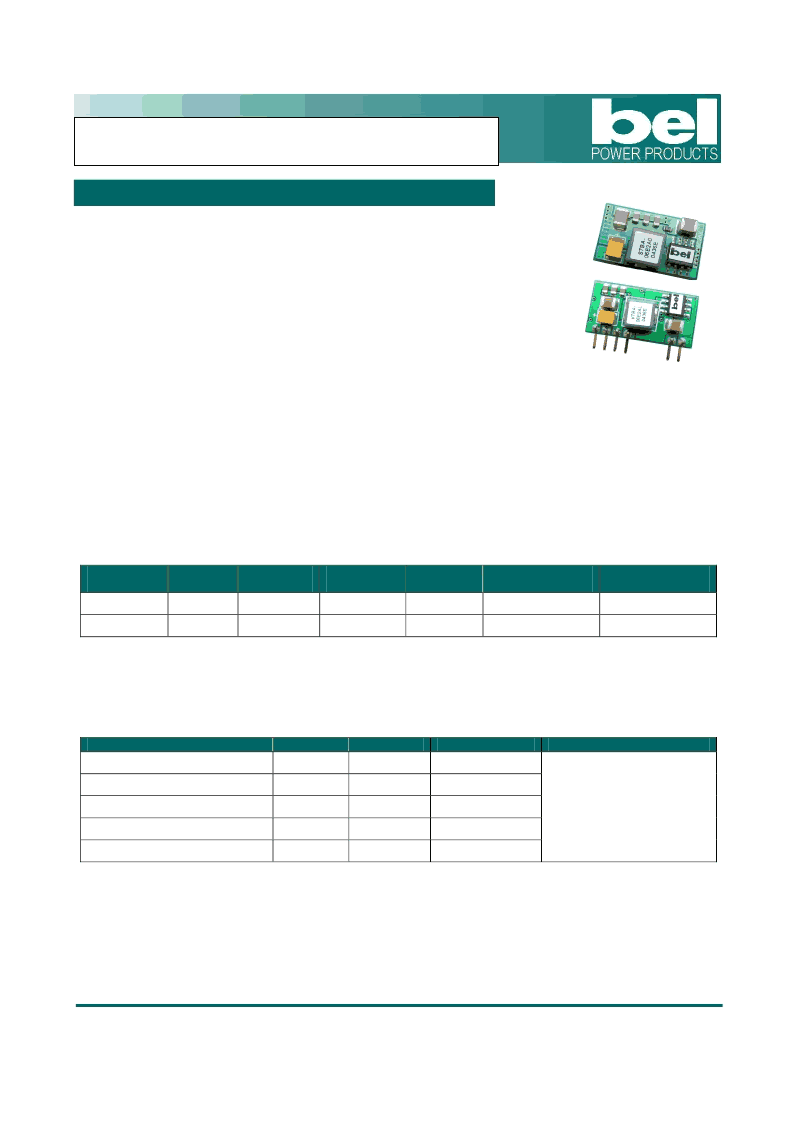

Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
4.5V-14V Input
0.75V-5.0V/6A Output
Non-Isolated
High Efficiency
High Power Density
Fixed Frequency
Flexible Output Voltage Sequencing
Active Low/High (option)
Under-voltage Lockout (UVLO)
Remote On/Off
OCP/SCP
Wide Input
Wide Trim Range
Description
The Bel x7BA-06E2Ax modules are a series of non-isolated DC/DC converters that can deliver up to 6A of
output current with full load efficiency of 92% at 5.0V output. These modules provide precisely regulated voltage
programmable via external resistor from 0.75V to 5.0V over a wide range of input voltage. These modules have
a sequencing feature that enables designers to implement various types of output voltage sequencing when
powering multiple voltages on a board. Their open-frame construction and small footprint enable designers to
develop cost and space-efficient solutions. Standard features include remote On/Off, programmable output
voltage and over current protection.
Part Selection
Output
Voltage
Voltage
Current
Power
5.0V
7.0V - 14V
6A
30.0W
Input
Max. Output
Max. Output
Typical
Efficiency
92%
Model Number
Surface Mount
S7BA-06E2Ax
Model Number
Vertical Mount
V7BA-06E2Ax
0.75V – 3.3V
4.5V - 14V
6A
19.8W
88%
S7BA-06E2Ax
V7BA-06E2Ax
Note
: Use “0” to replace “x” for remote on/off active high logic and use “L” for active low logic. Add “G” suffix at
the end of the model numbers to indicate Tray Packaging.
Absolute Maximum Ratings
Parameter
Min
Typ
Input Voltage (continuous)
-0.3V
-
Max
15V
Notes
Output Enable Terminal Voltage
-0.3V
-
15V
Sequencing Voltage
1
-0.3V
-
Vin
Ambient Temperature
-40
°
C
-
85
°
C
Storage Temperature
-55
°
C
-
125
°
C
All specifications are typical at
25
°
C unless otherwise stated.
Note
: 1. x7BA-06E2Ax series of modules include a sequencing feature that enables users to implement various
types of output voltage sequencing in their applications. This is accomplished via an additional
sequencing pin. When the sequencing feature is not used, tie the SEQ pin to Vin.
x7BA-06E2Ax Series
