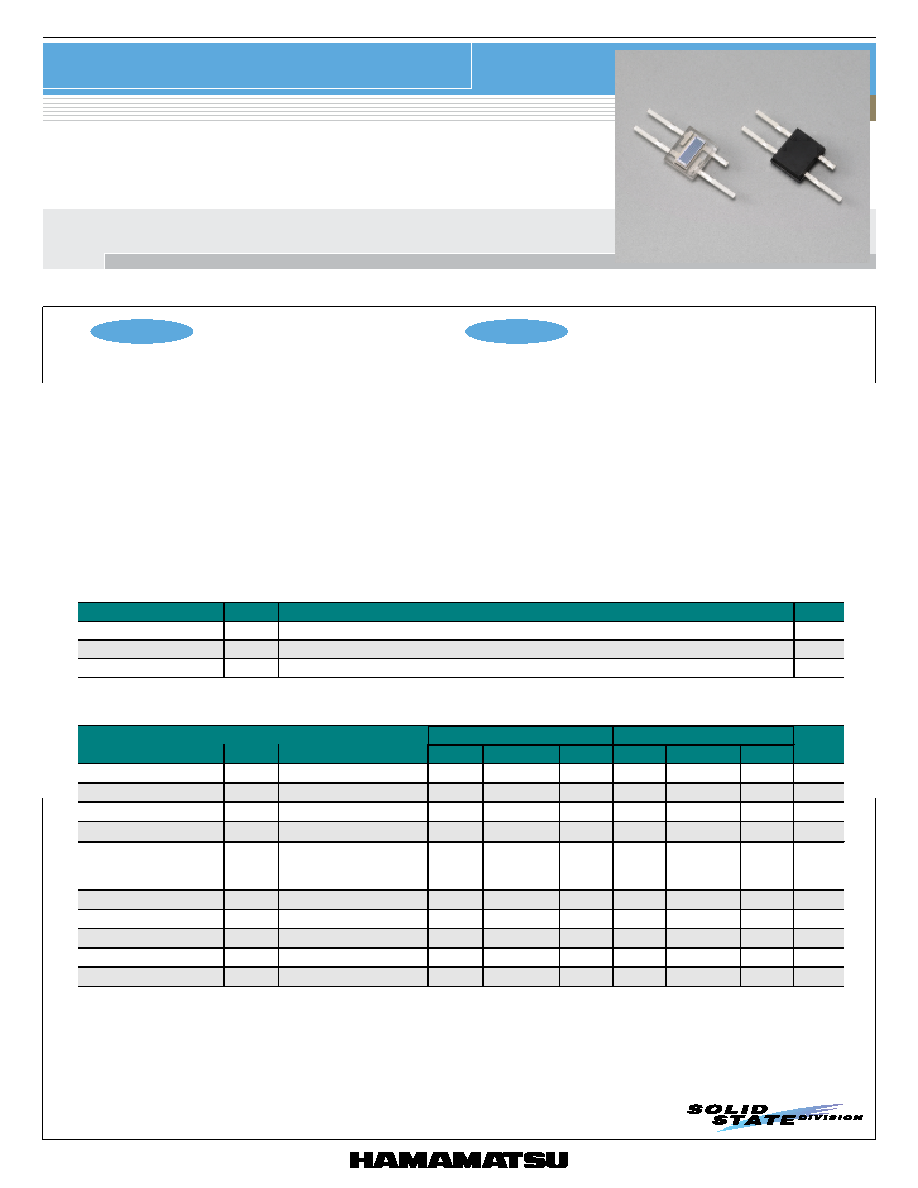

S8301 is a nonlinear output PSD (Position Sensitive Detector) specifically developed to improve accuracy of triangular measurement over long
distances.
Features
l Nonlinear output one-dimensional PSD
l Large signal output change level for long distances
l Active area: 1.0 × 3.2 mm (resistance length 3.0 mm)
Applications
l Displacement meter
l Optical switch
PSD
One-dimensional PSD
Nonlinear output PSD
S8301 series
s
Absolute maximum ratings (Ta=25 °C)
Parameter
Symbol
Value
Unit
Reverse voltage
VR Max.
20
V
Operating temperature
Topr
-25 to +85
°C
Storage temperature
Tstg
-40 to +100
°C
s
Electrical and optical characteristics (Ta=25 °C)
S8301
S8301-01
Parameter
Symbol
Condition
Min.
Typ.
Max.
Min.
Typ.
Max.
Unit
Spectral response range
l
-
320 to 1100
--
760 to 1100
-nm
Peak sensitivity wavelength
lp
-
960
-
960
-
nm
Photo sensitivity
S
l= lp
-
0.55
-
0.55
-
A/W
Interelectrode resistance
Rie
Vb=0.1 V
180
250
320
180
250
320
kW
Position
detection error
-
VR=1 V
Spot light size=f0.1 mm
50 to 2950 m range
-
±30
±60
-
±30
±60
m
Saturation current
Ist
VR=1 V, RL=1 kW
20
-
20
-
A
Dark current
ID
VR=1 V
-
0.1
2
-
0.1
2
nA
Temperature coefficient of I,
-
1.15
-
1.15
-
times/°C
Rise time
tr
VR=1 V, RL=1 kW *
-5
15
-
10
30
s
Terminal capacitance
Ct
VR=1 V, f=10 kHz
-
35
70
-
35
70
pF
* S8301: l=650 nm, S8301-01: l=890 nm
