參數資料
| 型號： | SBLF1030CTHE3/45 |
| 廠商： | VISHAY SEMICONDUCTORS |
| 元件分類： | 整流器 |
| 英文描述： | 5 A, 30 V, SILICON, RECTIFIER DIODE, TO-220AB |
| 封裝： | ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN |
| 文件頁數： | 2/5頁 |
| 文件大小： | 141K |
| 代理商： | SBLF1030CTHE3/45 |

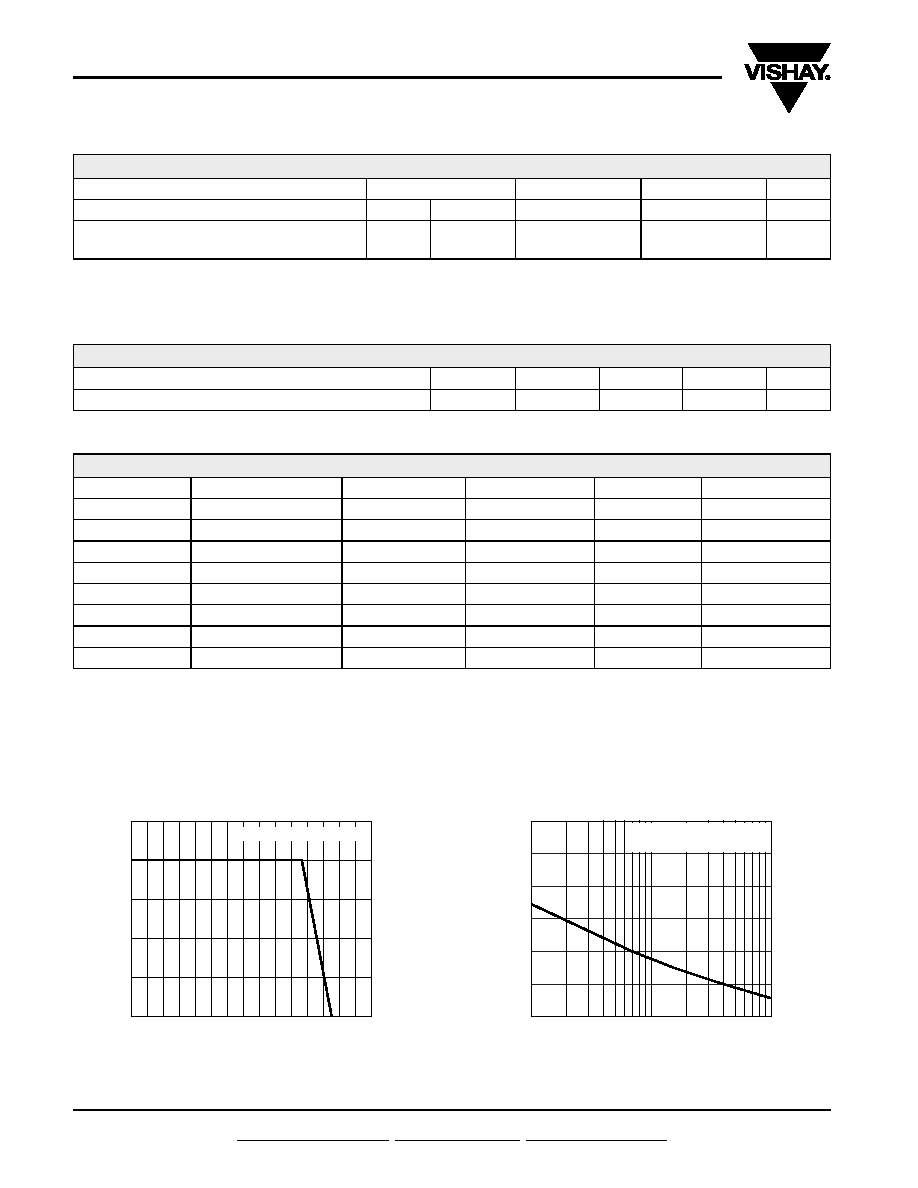

SBL(F,B)1030CT & SBL(F,B)1040CT
Vishay General Semiconductor
www.vishay.com
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88726
Revision: 25-Apr-08
2
Note:
(1) Pulse test: 300 s pulse width, 1 % duty cycle
Note:
(1) Automotive grade AEC Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted)
ELECTRICAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
VALUE
UNIT
Maximum instantaneous forward voltage per diode (1)
5.0 A
VF
0.55
V
Maximum instantaneous reverse current per diode at
rated DC blocking voltage (1)
TC = 25 °C
TC = 100 °C
IR
0.5
50
mA
THERMAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
SBL
SBLF
SBLB
UNIT
Typical thermal resistance per diode
RθJC
3.0
5.0
3.0
°C/W
ORDERING INFORMATION (Example)
PACKAGE
PREFERRED P/N
UNIT WEIGHT (g)
PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
TO-220AB
SBL1030CT-E3/45
1.85
45
50/tube
Tube
ITO-220AB
SBLF1030CT-E3/45
1.99
45
50/tube
Tube
TO-263AB
SBLB1030CT-E3/45
1.35
45
50/tube
Tube
TO-263AB
SBLB1030CT-E3/81
1.35
81
800/reel
Tape and reel
TO-220AB
SBL1030CTHE3/45 (1)
1.85
45
50/tube
Tube
ITO-220AB
SBLF1030CTHE3/45 (1)
1.99
45
50/tube
Tube
TO-263AB
SBLB1030CTHE3/45 (1)
1.35
45
50/tube
Tube
TO-263AB
SBLB1030CTHE3/81 (1)
1.35
81
800/reel
Tape and reel
Figure 1. Forward Current Derating Curve
0
50
100
150
0
2.5
5
7.5
10
12.5
Resistive or Inductive Load
A
v
er
age
F
o
rw
ard
C
u
rrent
(A)
Case Temperature (°C)
Figure 2. Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
1
10
100
0
50
100
150
200
250
300
T
J = TJ Max.
8.3 ms Single Half Sine-Wave
Number of Cycles at 60 Hz
Pe
a
k
F
o
rw
ard
S
u
rge
C
u
rrent
(A)
