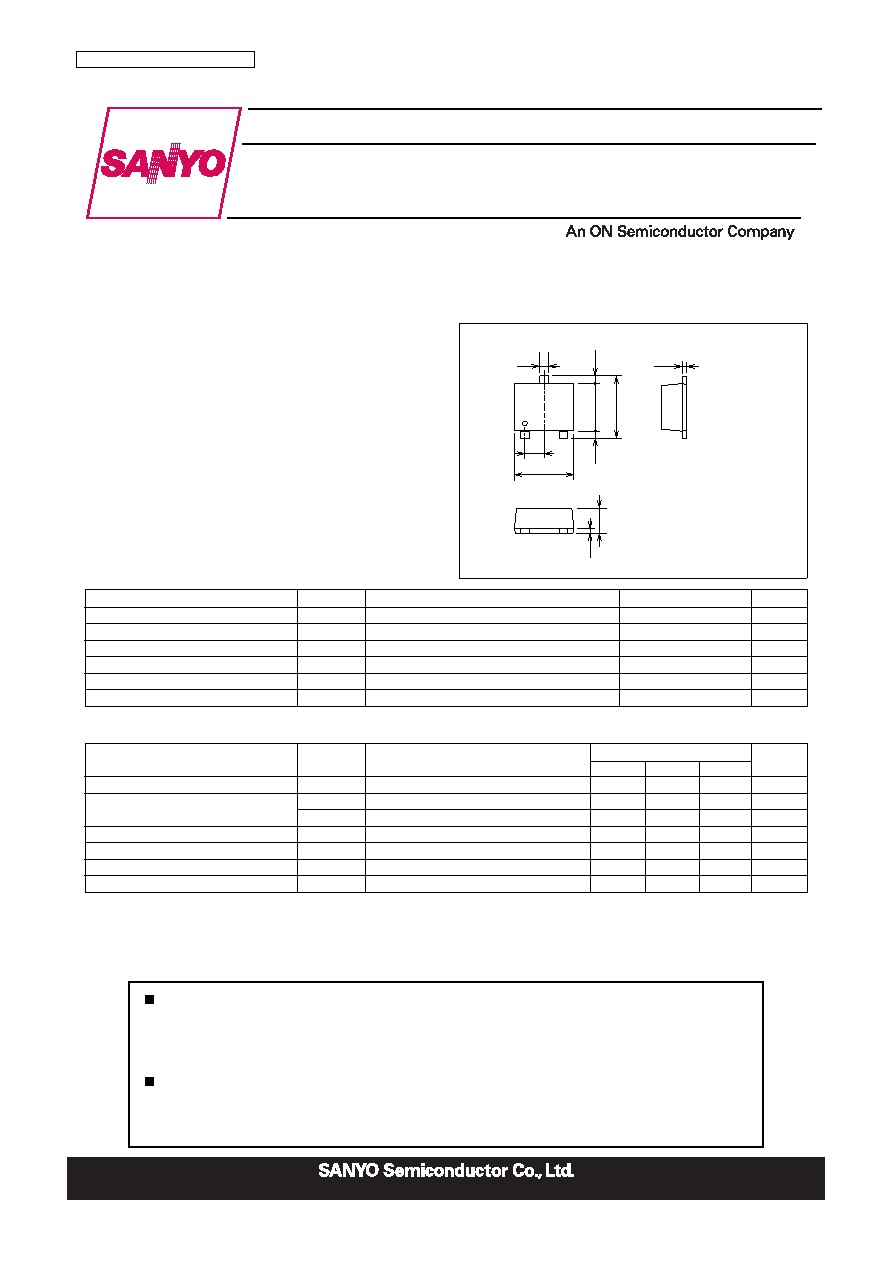

SBS004M
No.6907-1/3
Applications
High frequency rectification (switching regulators,
converters, choppers).
Features
Low forward voltage (IF=0.5A, VF max=0.35V)
(IF=1.0A, VF max=0.4V).
Ultrasmall-sized package permitting applied sets to
be made small and slim (mounting height 0.85mm).
Specifications
Absolute Maximum Ratings at Ta=25
°C
Parameter
Symbol
Conditions
Ratings
Unit
Repetitive Peak Reverse Voltage
VRRM
15
V
Nonrepetitive Peak Reverse Surge Voltage
VRSM
15
V
Average Output Current
IO
1A
Surge Forward Current
IFSM
50Hz sine wave, 1 cycle
10
A
Junction Temperature
Tj
--55 to +125
°C
Storage Temperature
Tstg
--55 to +125
°C
Electrical Characteristics at Ta=25
°C
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Reverse Voltage
VR
IR=1mA
15
V
Forward Voltage
VF1IF=0.5A
0.30
0.35
V
VF2IF=1A
0.35
0.40
V
Reverse Current
IR
VR=6V
500
A
Interterminal Capacitance
C
VR=10V, f=1MHz
42
pF
Reverse Recovery Time
trr
IF=IR=100mA, See specified Test Circuit.
15
ns
Thermal Resistance
Rth(j-a)
Mounted on a ceramic board (600mm2!0.8mm)
138
°C / W
Marking : SA
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Ordering number : ENN6907
SBS004M
Package Dimensions
unit : mm
1305
[SBS004M]
12501 GI IM
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
Schottky Barrier Diode
15V, 1A Rectifier
1 : Anode
2 : No Contact
3 : Cathode
SANYO : MCPH3
0.25
2.1
1.6
2.0
0.65
0.3
0.85
0.15
12
3
0.15
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
http://semicon.sanyo.com/en/network
