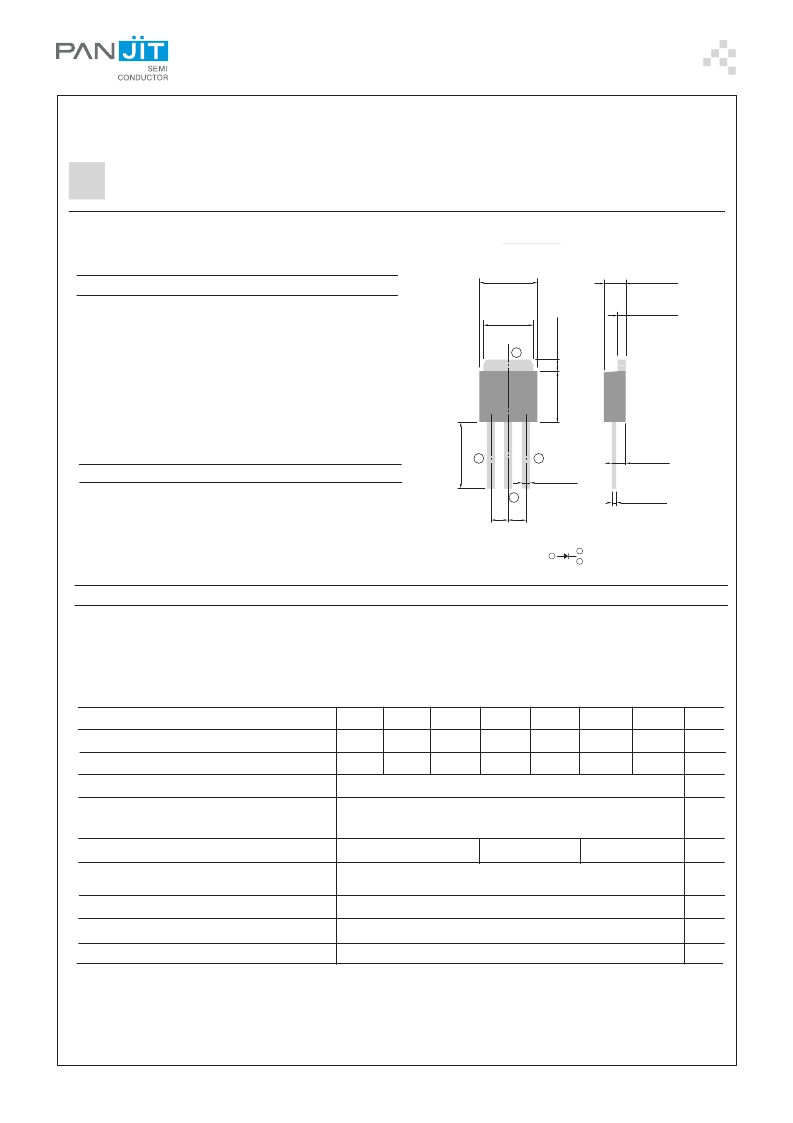

PAGE . 1
DATE : OCT.10.2002
DATA SHEET
FEATURES
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
For surface mounted applications
Low profile package
Built-in strain relief
Low power loss, High efficiency
High surge capacity
For use in low voltage high frequency inverters, free wheeling, and
polarity protection applications
High temperature soldering guaranteed:260￠XC/10 seconds at terminals
MECHANICAL DATA
Case: TO-251AB molded plastic
Terminals: Solder plated, solderable per MIL-STD-750,Method 2026
Polarity: As marking
Weight: 0.015 ounces, 0.4grams.
SD520T~SD5100T
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
VOLTAGE 20 to 100 Volts CURRENT - 5 Ampere
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current at Tc=75°C
Peak Forward Surge Current,
8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 5.0A (Note 1)
Maximum DC Reverse Current at Tc=25°C
DC Blocking Voltage per element Tc=100°C
Maximum Thermal Resistance (Note 2)
Operating and Storage Temperature Range
Storage Temperature Range
V
V
mA
UNITS
NOTES:
1. Thermal Resistance Junction to Ambient .
V
0.55
0.2
20
TO-251AB
Unit: inch ( mm )
.09
(2.3)
.09
(2.3)
.264(6.7)
.248(6.3)
.216(5.5)
.200(5.1)
.
.
.
.
.032(0.8)
.012(0.3)
.098(2.5)
.082(2.1)
.024(0.6)
.016(0.4)
.071(1.8)
.051(1.3)
3
2
1
4
.02(0.5)
.
.
4
2
3
°C
-55 to +125
80
A
100
V
A
°C/W
5
SD520T
20
14
20
°C
-65 to +150
SD530T
30
21
30
SD540T
40
28
40
SD550T
50
35
50
SD560T
60
42
60
SD580T
80
56
80
SD5100T
100
70
100
0.75
0.85
