Silicon Phototransistor
SD3443/5443
DESCRIPTION
FEATURES
TO-46 metal can package
Choice of flat window or lensed package
90 or 18 (nominal) acceptance angle option
Wide operating temperature range
(- 55C to +125C)
External base connection for added control
High sensitivity
Mechanically and spectrally matched to
SE3450/5450, SE3455/5455 and SE3470/5470
infrared emitting diodes
The SD3443/5443 series consists of an NPN silicon
phototransistor mounted in a TO-46 metal can package.
The SD3443 has flat window cans providing a wide
acceptance angle, while the SD5443 has glass lensed
cans providing a narrow acceptance angle. The TO-46
packages are ideally suited for operation in hostile
environments.
The base is connected on all SD3443 and SD5433
standard products.

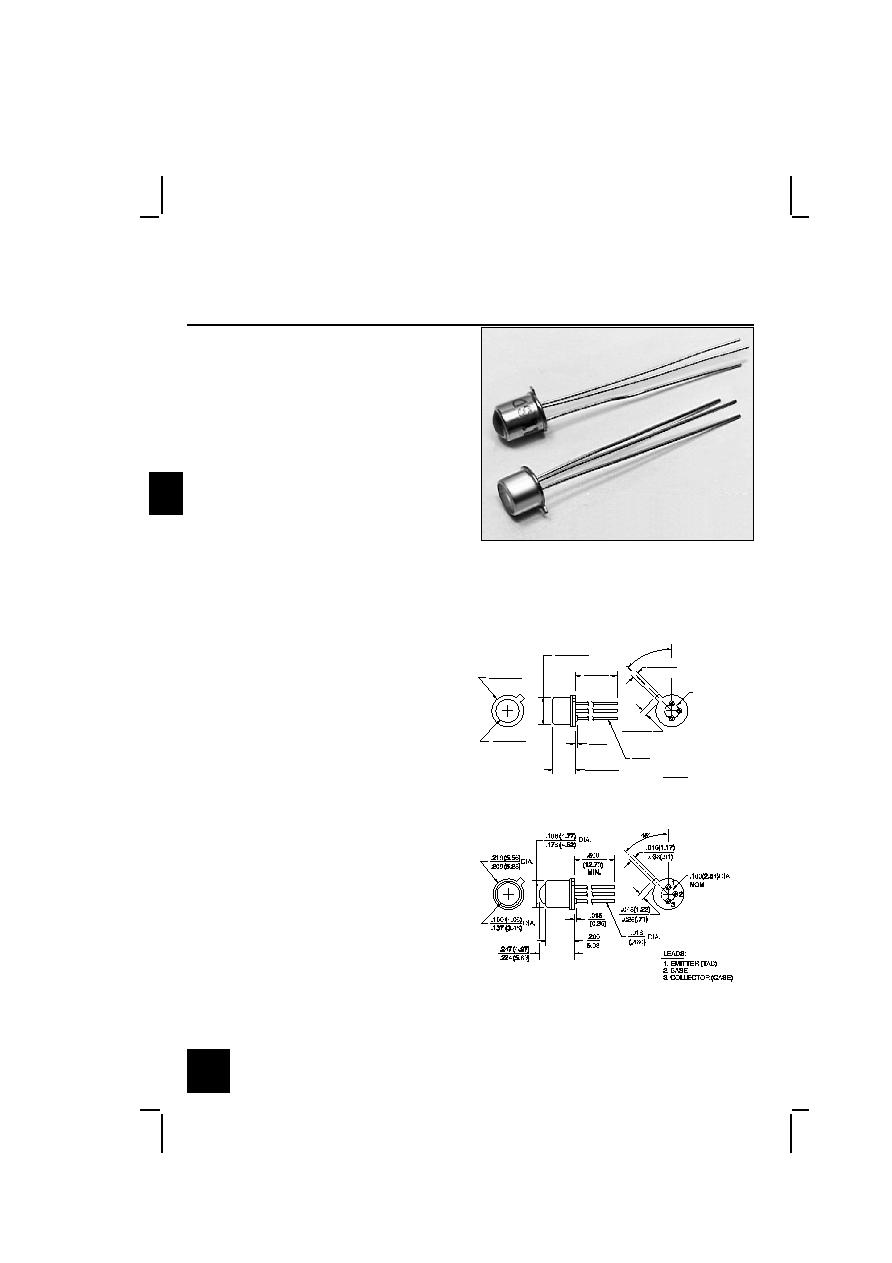

INFRA-57.TIF
OUTLINE DIMENSIONS in inches (mm)
3 plc decimals
±0.005(0.12)
Tolerance
2 plc decimals
±0.020(0.51)
3. COLLECTOR
2. BASE
1. EMITTER(TAB)
LEADS:
.046(1.17)
.036(.91)
2
1
3
DIA.
(.460)
.018
MIN.
(12.70)
.500
(0.36)
.015
.140 (3.56)
.153 (3.89)
DIA.
.137 (3.48)
.160 (4.06)
.188 (4.77)
.178 (4.52)
DIA.
.208 (5.28)
.219 (5.56)
.100(2.54)DIA
NOM
(CASE)
45°
.048(1.22)
.028(.71)
DIM_015.ds4
SD3443
DIM_15b.ds4
SD5443
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
