參數資料
| 型號： | SDR1TSMSS |
| 廠商： | SOLID STATE DEVICES INC |
| 元件分類： | 二極管(射頻、小信號、開關、功率) |
| 英文描述： | 1 A, 1600 V, SILICON, SIGNAL DIODE |
| 封裝： | HERMETIC SEALED, SMS, 2 PIN |
| 文件頁數： | 2/2頁 |
| 文件大?。?/td> | 147K |
| 代理商： | SDR1TSMSS |
NOTE: All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RU0001G
DOC
ELECTRICAL CHARACTERISTICS 3/
CHARACTERISTICS
SYMBOL VALUE
UNIT
Instantaneous Forward Voltage Drop
(IF = 1 Adc, 300- 500 μs Pulse, TA = 25°C)
VF1
3.60
Vdc
Instantaneous Forward Voltage Drop
(IF = 1 Adc, 300- 500 μs Pulse, TA = -55°C)
VF2
3.80
Vdc
Maximum Reverse Leakage Current
(Rated VR, 300 μs Pulse Minimum , TA = 25°C)
IR1
5
μA
Maximum Reverse Leakage Current
(Rated VR, 300 μs Pulse Minimum , TA = 100°C)
IR2
100
μA
Junction Capacitance
(VR = 100Vdc, TA = 25°C , f = 1MHz)
CJ
20
pf
Maximum Reverse Recovery Time 4/
trr
70
ns

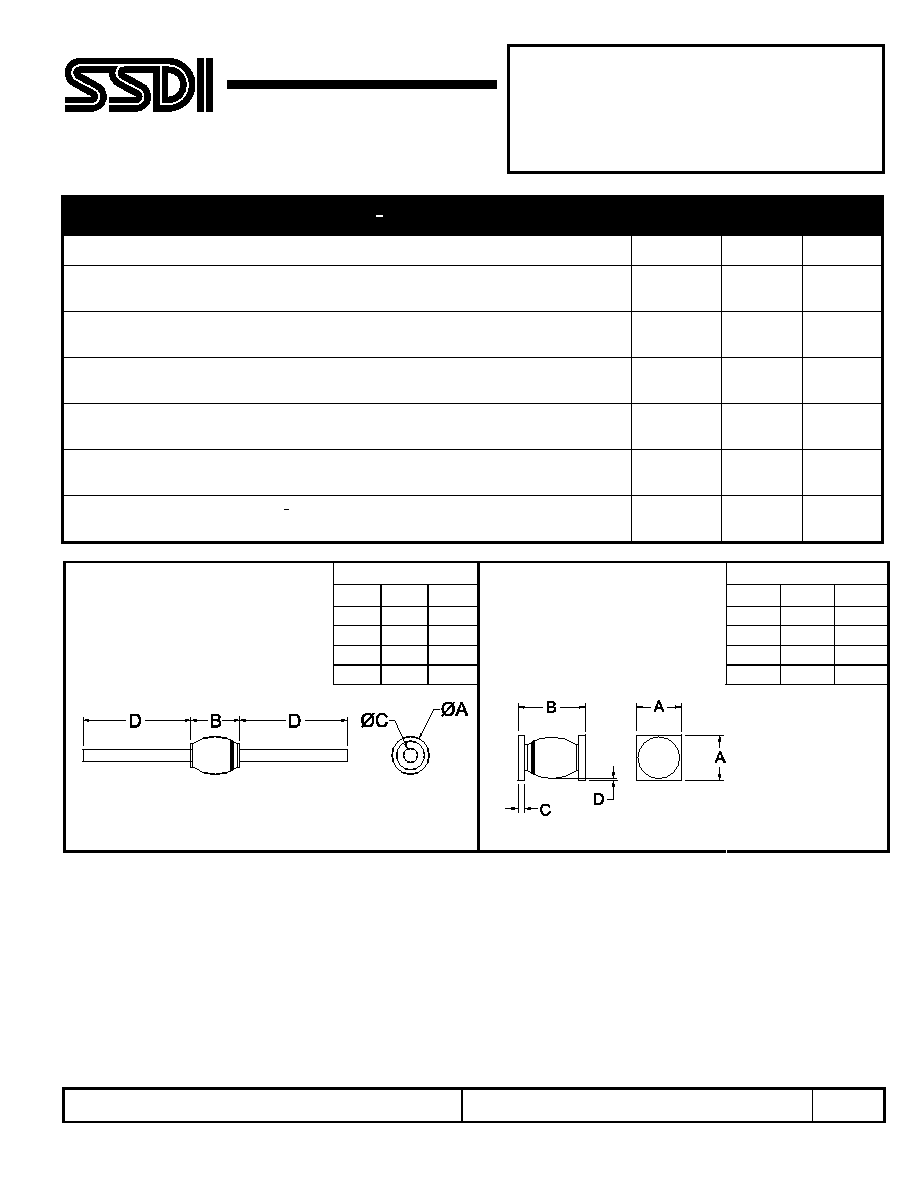

DIMENSIONS
DIM. MIN. MAX.
DIM.
MIN.
MAX.
A
.100” .150”
A
.135”
.155”
B
.125” .200”
B
.175”
.250”
C
.027” .033”
C
.022”
.028”
Axial Leaded Case Outline:
D
1.00”
---
D
.002”
---
Square Tab Surface Mount Case
Outline:
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SDR1P thru SDR1W
and
SDR1PSMS and SDR1WSMS
