NOTE: All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RH0008C
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com

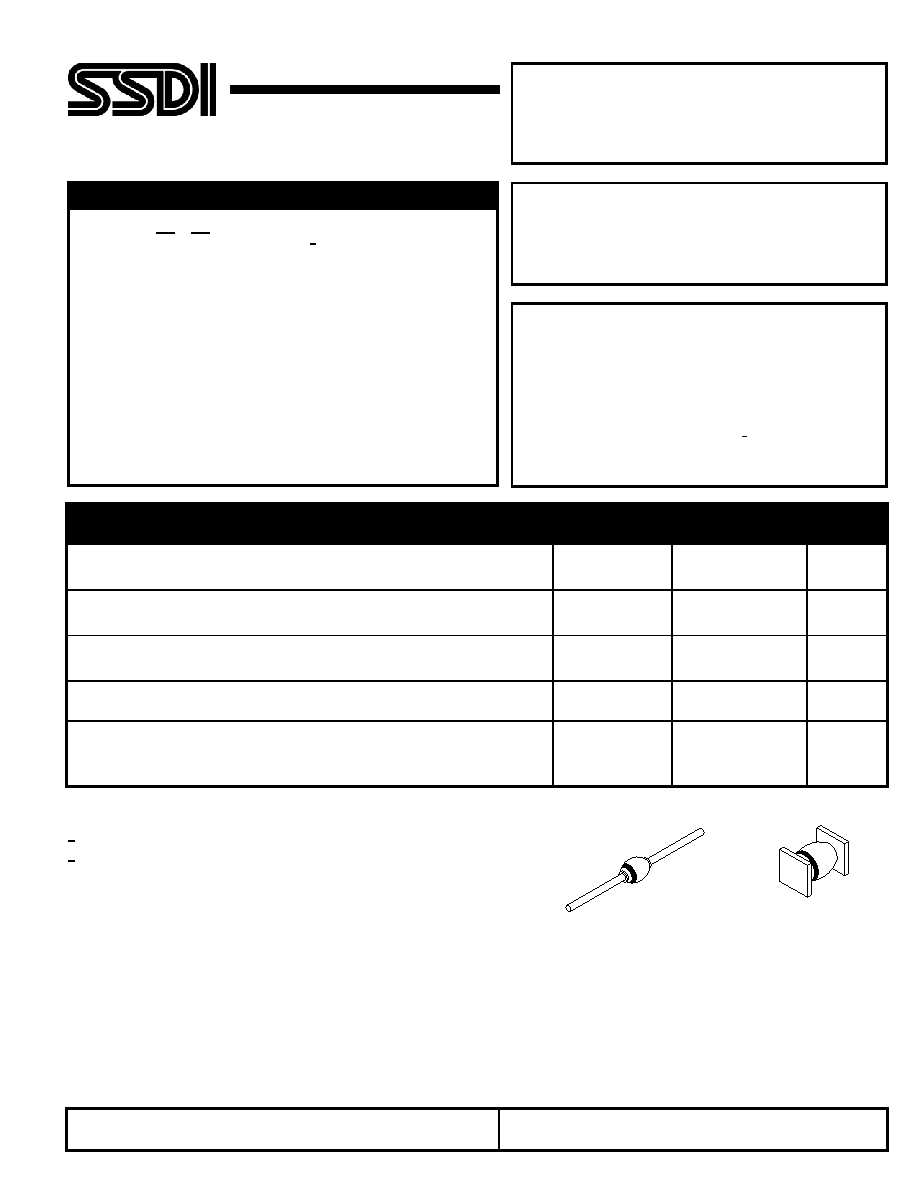

DESIGNER’S DATA SHEET
SDR429
__ __
└
Screening 2/
__ = Not Screened
TX = TX Level
TXV = TXV
S = S Level
│
└
Package Type
__ = Axial Leaded
SMS = Surface Mount Square Tab
SDR429
SDR429SMS
1 AMP, 700 V
Hyper Fast
Rectifier
Features:
High Voltage 700 V continuous
Very Fast Switching < 20 nS
Low High Temperature Leakage < 15 A
Very Fast Switching @ 100 C < 35 nS
Hermetically Sealed
Higher Voltages Available, consult Factory
TX, TXV, S Level screening Available2/
Available Axial Leaded or Surface Mount (Square Tab)
Maximum Ratings
Symbol
Value
Units
Peak Repetitive and Peak Surge Reverse Voltage
VRRM
VRSM
700
Volts
Average Rectified Forward Current
(Resistive Load, 60 hz Sine Wave)
Io
1.0
Amps
Non Repetitive Surge Current
(8.3 ms Pulse Half Sine Wave Superimposed on Io)
IFSM
18
Amps
Operating & Storage Temperature
Top & Tstg
-55 to +175
C
Maximum Thermal Resistance
Junction to Lead, L = 1/8 "
Junction to End Tab
RθJL
RθJE
12
9
C/W
NOTES:
1/ For Ordering Information, Price, and Availability- Contact Factory.
2/ Screening Based on MIL-PRF-19500. Screening Flows Available on Request.
Axial Lead Diode
SMS
