1
Wide Voltage
Products
Operation
G
80-bit Output
G
1/300 Duty Max.
G
2.7 to 5.5Vdc Logic Power Supply
Dot Matrix High Duty LCD Driver
PF669-03
SED1640
1
I
DESCRIPTION
The SED1640 is the 80-segment (column) output driver that is appropriate to driving of a large-capacity, dot-matrix
LCD panel.
The chip has been designed to improve the LCD display quality and it provides the high-speed enable chain
method useful for lower power operation. The flat chip design allows more compact LCD panel production. The
logic power supply allows low-voltage operation in a wide range of applications.
I
FEATURES
G
No. of LCD drive outputs.................................80
G
Super slim chip design
G
Low current consumption
G
Low voltage operation.....................................–2.7 Vdc Max.
G
Wide range of LCD drive.................................–8 to –28 Vdc
voltages
G
High-speed data transmission at the low ........Shift clock frequencies : 6.5 MHz (at –2.7 Vdc)
power by 4-bit bus enable chain method
G
Non-bias display off function
G
Available pin selection in output shift direction
G
Available offset bias adjustment of LCD power supply for V
DD
level
G
Logic power supply .........................................–2.7 to –5.5 Vdc
G
Package ..........................................................Die form (Au bump): SED1640D
0B
: 7.5 MHz (at –3.0 Vdc)
I

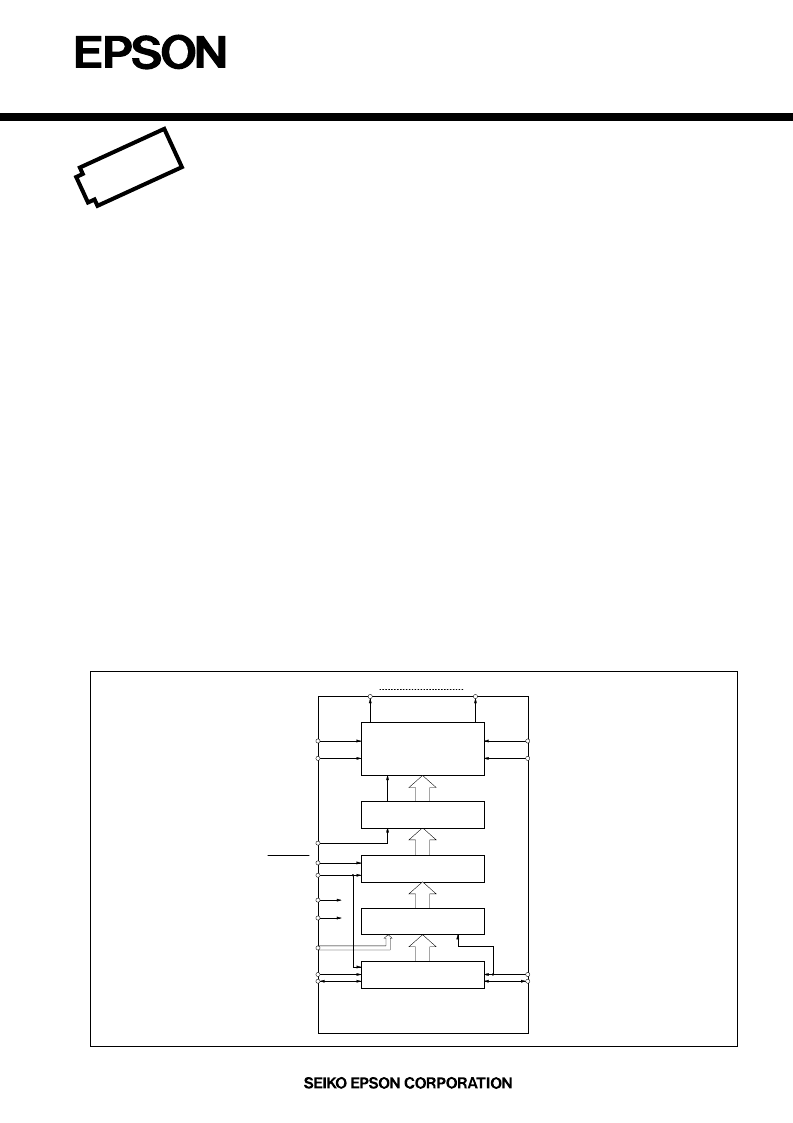

BLOCK DIAGRAM
V
0
V
5
FR
DSPOFF
LP
V
SS
V
DD
D0 - D3
XSCL
EIO1
V
2
V
3
SHL
EIO2
O0
O79
80-bit LCD Driver
80-bit Level Shifter
80-bit Latch
80-bit Data Register
Enable Shift Register
