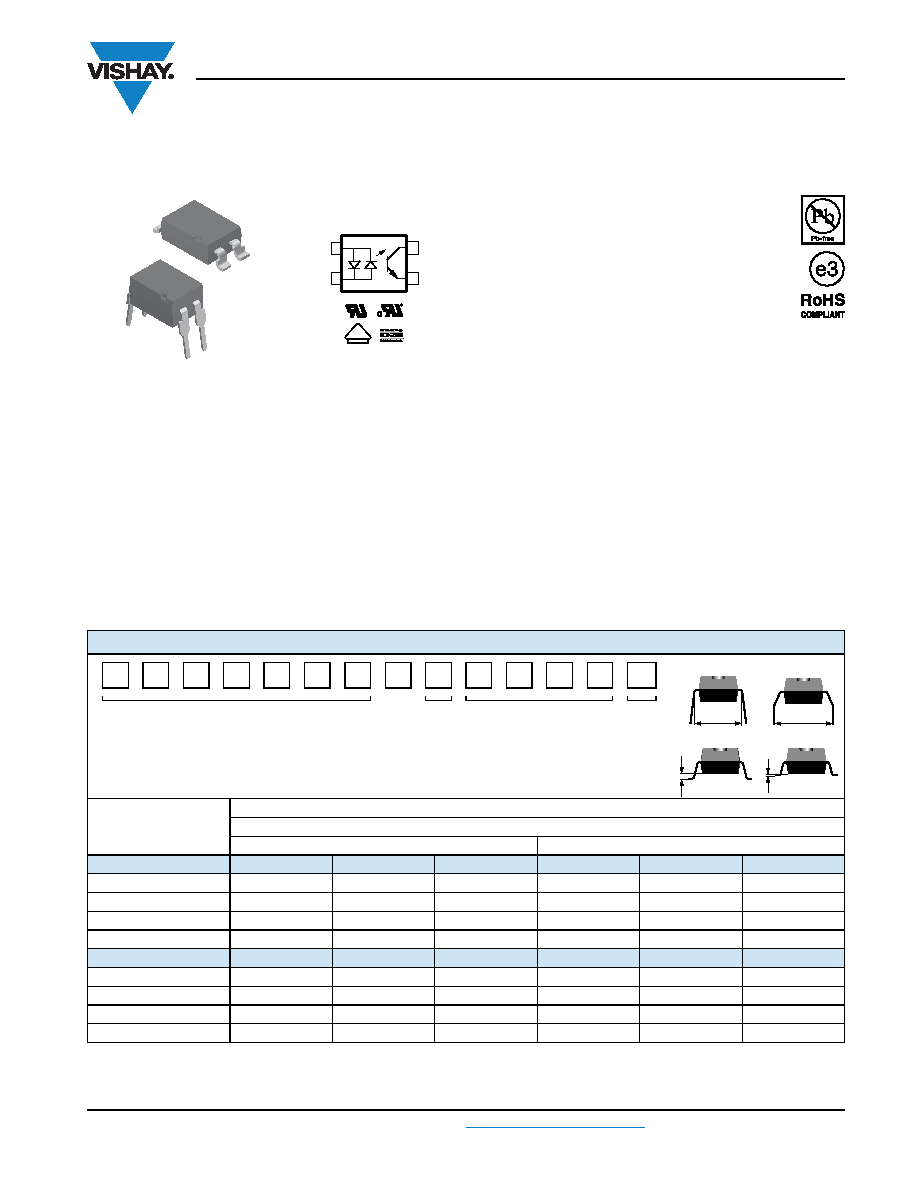

Document Number: 83675
For technical questions, contact: optocoupleranswers@vishay.com
www.vishay.com
Rev. 1.9, 23-Feb-11
1
Optocoupler, Phototransistor Output, AC Input
SFH620A, SFH6206
Vishay Semiconductors
DESCRIPTION
The SFH620A (DIP) and SFH6206 (SMD) feature a high
current transfer ratio, low coupling capacitance and high
isolation voltage. These couplers have a GaAs infrared diode
emitter, which is optically coupled to a silicon planar
phototransistor detector, and is incorporated in a plastic
DIP-4 or SMD package.
The coupling devices are designed for signal transmission
between two electrically separated circuits. The couplers are
end-stackable with 2.54 mm lead spacing. Creepage and
clearance distances of > 8 mm are achieved with option 6.
This version complies with IEC 60950 (DIN VDE 0805) for
reinforced insulation to an operation voltage of 400 VRMS or
DC.
FEATURES
Good CTR linearity depending on forward
current
Isolation test voltage, 5300 VRMS
High collector emitter voltage, VCEO = 70 V
Low saturation voltage
Fast switching times
Low CTR degradation
Temperature stable
Low coupling capacitance
End-stackable, 0.100" (2.54 mm) spacing
High common-mode interference immunity
Compliant to RoHS Directive to 2002/95/EC and in
accordance WEEE 2002/96/EC
AGENCY APPROVALS
UL1577, file no. E52744 system code H, double protection
CSA 93751
BSI IEC 60950; IEC 60065
DIN EN 60747-5-2 (VDE 0884)/DIN EN 60747-5-5 (pending),
avialable with option 1
Note
Additional options may be possible, please contact sales office.
(1) Also available in tubes; do not add T to end.
i179080-2
E
C
A/C
C/A
1
2
4
3
V
DE
i179080
1
ORDERING INFORMATION
S
F
H
620x
-
#
X
0
##
T
PART NUMBER
CTR
BIN
PACKAGE OPTION
TAPE
AND
REEL
AGENCY
CERTIFIED/PACKAGE
CTR (%)
± 10 mA
SFH620A
SFH6206
UL, cUL, BSI
40 to 125
63 to 200
100 to 320
40 to 125
63 to 200
100 to 320
DIP-4
SFH620A-1
SFH620A-2
SFH620A-3
-
DIP-4, 400 mil, option 6 SFH620A-1X006
SFH620A-2X006
SFH620A-3X006
-
SMD-4, option 7
-
SFH620A-2X007T (1)
--
SMD-4, option 9
-
SFH6206-1T (1)
SFH6206-2T (1)
SFH6206-3T (1)
VDE, UL, cUL, BSI
40 to 125
63 to 200
100 to 320
40 to 125
63 to 200
100 to 320
DIP-4
SFH620A-1X001
SFH620A-2X001
SFH620A-3X001
-
DIP-4, 400 mil, option 6
-
SFH620A-2X016
SFH620A-3X016
-
SMD-4, option 7
-
SFH620A-2X017T
-
SMD-4, option 9
-
SFH6206-2X001T (1) SFH6206-3X001T (1)
> 0.1 mm
10.16 mm
> 0.7 mm
7.62 mm
DIP-#
Option 7
Option 6
Option 9
