| 型號： | SG2003J |
| 廠商： | MICROSEMI CORP-ANALOG MIXED SIGNAL GROUP |
| 元件分類： | 小信號晶體管 |
| 英文描述： | HIGH VOLTAGE MEDIUM CURRENT DRIVER ARRAYS |
| 中文描述： | 500 mA, 50 V, 7 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR |
| 封裝： | HERMETIC SEALED, CERAMIC PACKAGE-16 |
| 文件頁數： | 1/7頁 |
| 文件大小： | 110K |
| 代理商： | SG2003J |
SG2000 SERIES
4/90 Rev 1.3 6/97
Copyright
1997
L
IN
F
IN
ITY
Microelectronics Inc.
11861 Western Avenue
∞
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
1
DESCRIPTION
The SG2000 series integrates seven NPN Darlington pairs with
internal suppression diodes to drive lamps, relays, and solenoids in
many military, aerospace, and industrial applications that require
severe environments. All units feature open collector outputs with
greater than 50V breakdown voltages combined with 500mA
current carrying capabilities. Five different input configurations
provide optimized designs for interfacing with DTL, TTL, PMOS, or
CMOS drive signals. These devices are designed to operate from
-55°C to 125°C ambient temperature in a 16 pin dual in line ceramic
(J) package and 20 pin Leadless Chip Carrier (LCC). The plastic
dual in–line (N) is designed to operate over the commercial
temperature range of 0
°
C to 70°C.
FEATURES
Seven npn Darlington pairs
-55°C to 125°C ambient operating temperature range
Collector currents to 600mA
Output voltages from 50V to 95V
Internal clamping diodes for inductive loads
DTL, TTL, PMOS, or CMOS compatible inputs
Hermetic ceramic package
HIGH RELIABILITY FEATURES
Available to MIL-STD-883 and DESC SMD
MIL-M38510/14101BEA - JAN2001J
MIL-M38510/14102BEA - JAN2002J
MIL-M38510/14103BEA - JAN2003J
MIL-M38510/14104BEA - JAN2004J
Radiation data available
LMI level "S" processing available
HIGH VOLTAGE MEDIUM
CURRENT DRIVER ARRAYS

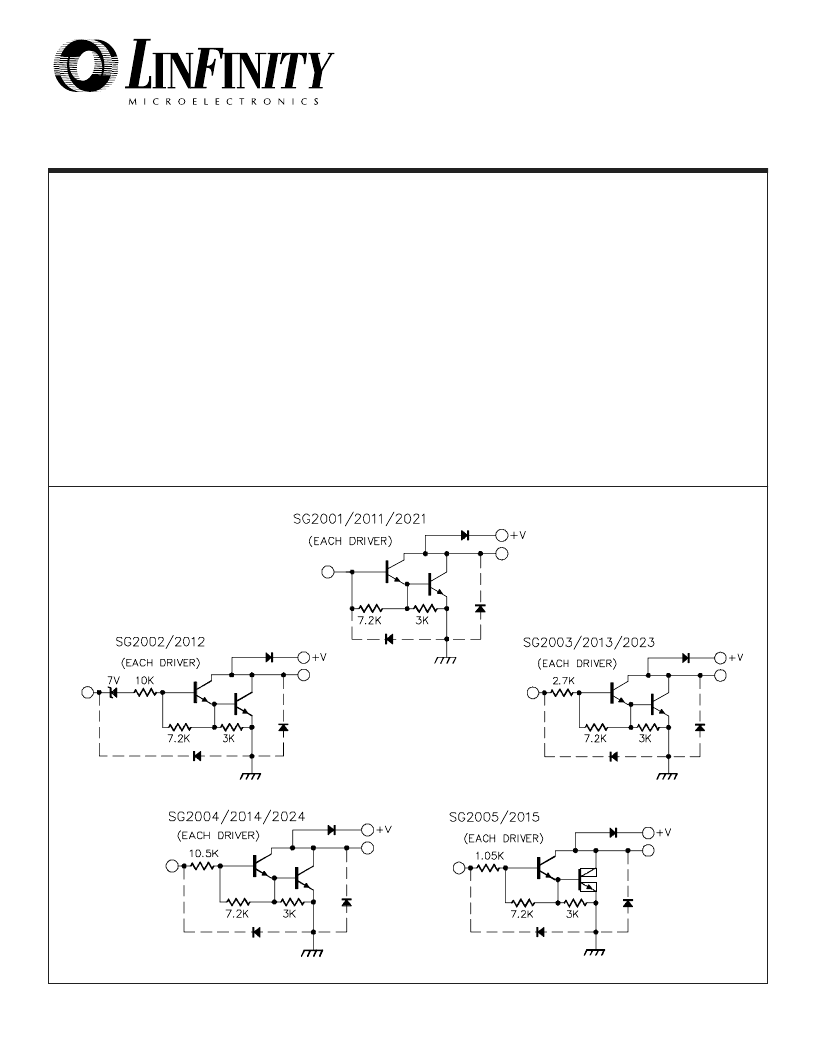

PARTIAL SCHEMATICS
