Preliminary Rev. 0.3 2/11
Copyright 2011 by Silicon Laboratories

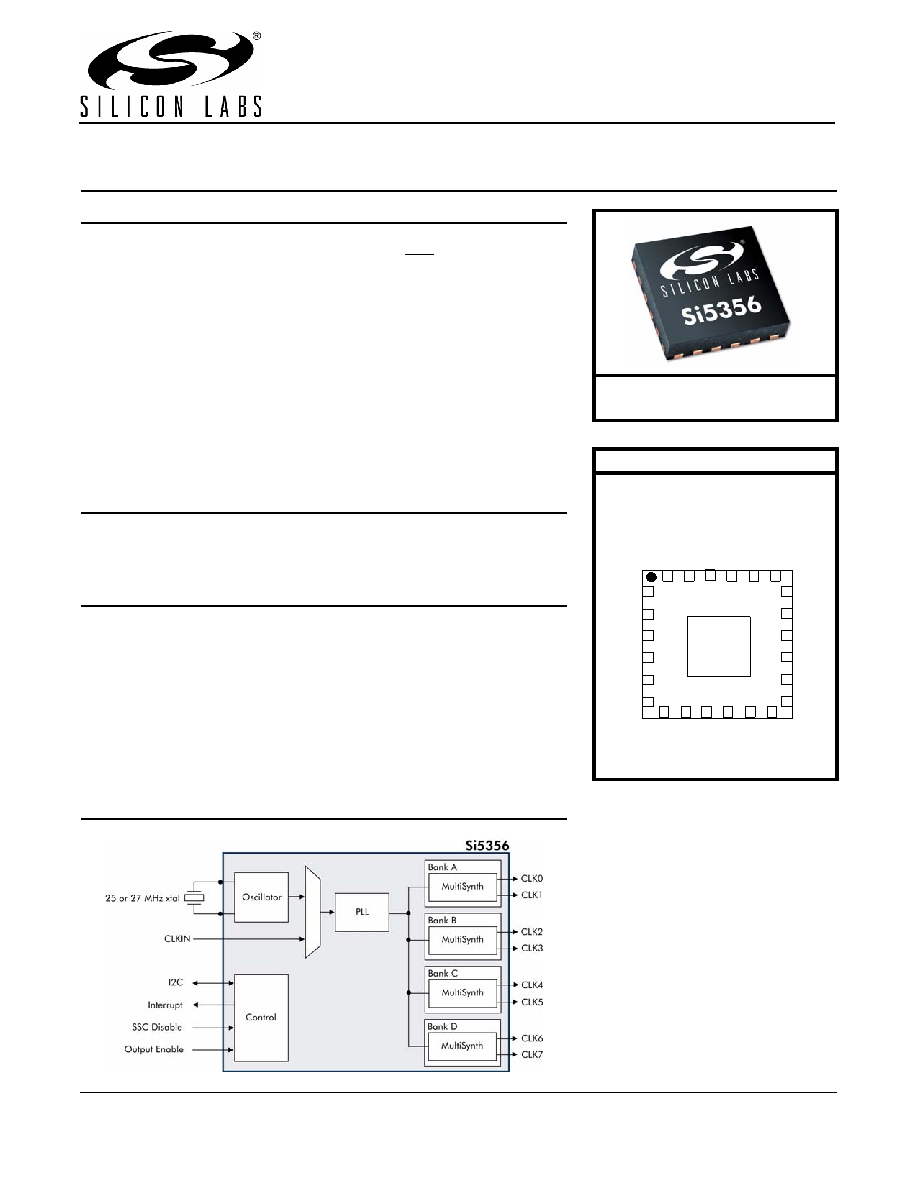

Si5356
This information applies to a product under development. Its characteristics and specifications are subject to change without notice.
Si5356
I 2C P ROGRAMMABLE, A NY-F REQUENCY 1–200 MH Z,
Q UAD F REQUENCY 8-O UTPUT C LOCK G ENERATOR
Features
Applications
Description
The Si5356 is a highly flexible, I2C programmable clock generator capable of
synthesizing four completely non-integer related frequencies up to 200 MHz. The
device has four banks of outputs with each bank supporting two CMOS outputs at
the same frequency. Using Silicon Laboratories' patented MultiSynth fractional
divider technology, all outputs are guaranteed to have 0 ppm frequency synthesis
error regardless of configuration, enabling the replacement of multiple clock ICs
and crystal oscillators with a single device. Each output bank is independently
configurable to support 1.8, 2.5, or 3.3 V. The device is programmable via an I2C/
SMBus-compatible serial interface and supports operation from a 1.8, 2.5, or
3.3 V core supply.
Functional Block Diagram
Generates any frequency from 1 to
200 MHz on each of the 4 output banks
Programmable frequency configuration
Guaranteed 0 ppm frequency synthesis
error for any combination of frequencies
25 or 27 MHz xtal or 5–200 MHz input clk
Eight CMOS clock outputs
Easy to use programming software
Configurable “triple A” spread spectrum:
any
clock, any frequency, and with any
spread amount
Programmable output phase adjustment
with <20 ps error
Interrupt pin indicates LOS or LOL
OEB pin disables all outputs or per
bank OEB control via I2C
Low jitter: 50 ps pk-pk (typ), 100 ps
pk-pk period jitter (max)
Excellent PSRR performance
eliminates need for external power
supply filtering
Low power: 45 mA
Core VDD: 1.8, 2.5, or 3.3 V
Separate VDDO for each bank of
outputs: 1.8, 2.5, or 3.3 V
Small size: 4x4 mm 24-QFN
Industrial temperature range:
–40 to +85 °C
Printers
Audio/video
DSLAM
Storage area networks
Switches/routers
Servers
Ordering Information:
See page 24.
Pin Assignments
XA
CLK5
CLK4
VDDOC
VDDOB
CLK3
CLK2
VDD
VD
D
P2
CL
K6
CLK
7
LOS
P3
VD
DO
A
CL
K
1
CL
K0
GND
VD
DO
D
GND
XB
P1
CLKIN
P4
P5
Top View
1
6
5
4
3
2
712
11
10
9
8
18
13
14
15
16
17
24
19
20
21
22
23
XA
CLK5
CLK4
VDDOC
VDDOB
CLK3
CLK2
VDD
VD
D
SC
L
CL
K6
CLK
7
INTR
SD
A
VD
DO
A
CL
K
1
CL
K0
GND
VD
DO
D
GND
XB
I2C_LSB
CLKIN
SSC_DIS
OEB
Top View
1
6
5
4
3
2
712
11
10
9
8
18
13
14
15
16
17
24
19
20
21
22
23
