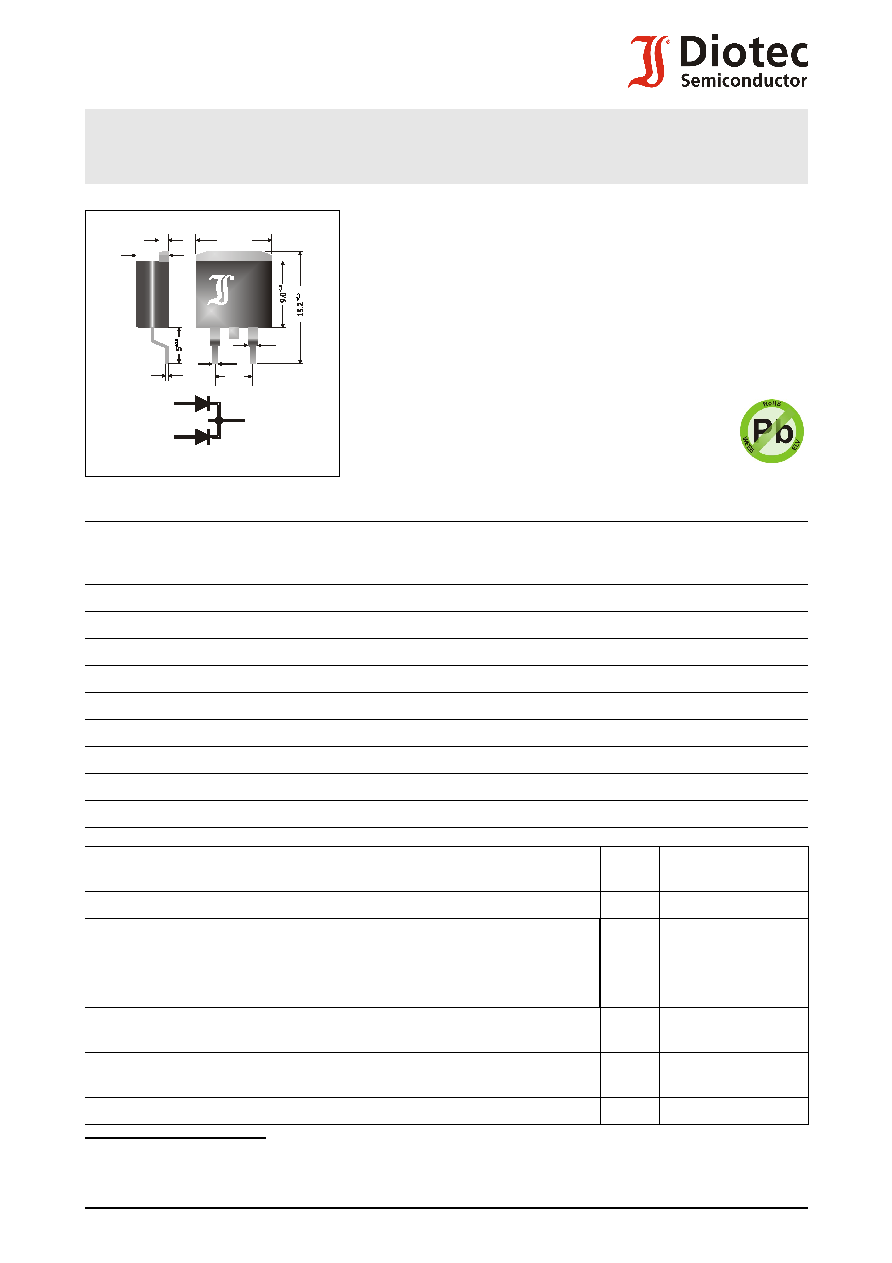

SK3020CD2 ... SK30100CD2
SK3020CD2 ... SK30100CD2
Surface Mount Schottky Rectifier Diodes– Common Cathode
Schottky-Gleichrichterdioden für die Oberflchenmontage – Gemeinsame Kathode
Version 2010-12-21
Dimensions - Mae [mm]
Nominal Current
Nennstrom
30 A
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
20...100 V
Plastic case
Kunststoffgehuse
TO-263
D2PAK
Weight approx.
Gewicht ca.
1.6 g
Plastic material has UL classification 94V-0
Gehusematerial UL94V-0 klassifiziert
Standard packaging in tubes
Standard Lieferform in Stangen
Maximum ratings and Characteristics
Grenz- und Kennwerte
Type
Typ
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
VRRM [V]
Surge peak reverse voltage
Stospitzensperrspannung
VRSM [V]
Forward Voltage
Durchlass-Spannung
IF = 5 A
IF = 15 A
SK3020CD2
20
< 0.49
< 0.55
SK3030CD2
30
< 0.49
< 0.55
SK3040CD2
40
< 0.49
< 0.55
SK3045CD2
45
< 0.49
< 0.55
SK3050CD2
50
< 0.63
< 0.70
SK3060CD2
60
< 0.63
< 0.70
SK3080CD2
80
< 0.77
< 0.85
SK30100CD2
100
< 0.77
< 0.85
Max. average forward rectified current, R-load
Dauergrenzstrom in Einwegschaltung mit R-Last
TC = 100°C
IFAV
15 A 2)
30 A 3)
Repetitive peak forward current – Periodischer Spitzenstrom
f > 15 Hz
IFRM
55 A 2)
Peak forward surge current
50/60 Hz half sine-wave
Stostrom für eine 50/60 Hz
Sinus-Halbwelle
SK3020CD2...
SK3060CD2
TA = 25°C
IFSM
280/320 A 2)
SK3080CD2...
SK30100CD2
TA = 25°C
IFSM
240/270 A 2)
Rating for fusing, t < 10 ms
Grenzlastintegral, t < 10 ms
TA = 25°C
i2t
390 A2s 2)
Junction temperature – Sperrschichttemperatur
in DC forward mode – bei Gleichstrom-Durchlassbetrieb
Tj
-50...+150°C
≤ 200°C
Storage temperature – Lagerungstemperatur
TS
-50...+175°C
1
Tj = 25°C
2
Per diode; data for SK3045CD2...SK30100CD2 preliminary Pro Diode; Daten für SK3045CD2...SK30100CD2 vorlufig
3
Per device (parallel operation) Pro Bauteil (Parallelbetrieb)
Diotec Semiconductor AG
http://www.diotec.com/
1
2
3
4
0.4
4.5
0.2
±
1.2
5.08
0.8
1.3
1
Type
Typ
3
2
4
10.25 ±0.5
