Rev 1.0, October 3, 2008
Page 1 of 12
2200 Laurelwood Road, Santa Clara, CA 95054 Tel: (408) 855-0555 Fax: (408) 855-0550 www.SpectraLinear.com
SL15102
Low Jitter and Power Clock Generator with SSCG
Key Features
Low power dissipation
- 6.4mA-typ CL=0pF
3.3V to 2.5V+/-10% power supply range
8 to 48MHz Crystal input Range
3 to 166MHz Clock input range
Up to three programmable output clocks
from 3 to 200MHz
Low CCJ Jitter
Internal Voltage Regulators
45% to 55% Output Duty Cycle
On-chip Crystal Load Capacitance
On-chip Crystal Oscillator
Proprammable rise and fall times
C and I Temperature Grades
8-pin 3x3x0.75 mm TDFN package
Application
Printers, MFPs and Digital Copiers
HDTV and DVD-R/W
IP Phone
Routers, Switches and Servers
Data Communications
Embeded Digital Applications
Description
The SL15102 is a programmable clock generator using
SLI proprietary EProClock programmable clock.
The SL15102 provides three output clocks that can me
programmed from 3 to 200MHz with or without SSCG
function. Spread percent range is +/-0.125% to +/-2.5%
(center spread) or -5.0% to -0.25% (down spread).
In addition, pins 2 and 7 are designed as Multi Function
(MF) I/O such that these pins can be programmed as
clock output or as a digital input control pin for PD#, OE,
SSON# and FS (frequency or spread select) functions.
The product is offered with 0 to +70°C commercial grade
and -40 to +85°C industrial grade versions. The product
operates from 3.3V to 2.5V power supply range with +/-
10% tolerance.
Contact SLI for other programmable frequencies, Spread
Spectrum Clock (SSC) and 1.8V+/-10% power supply
options.
Benefits
Fast Time-to-market
Cost Reduction
Improved Jitter
Low Power Dissipation
Eleminates external Xtals or XOs

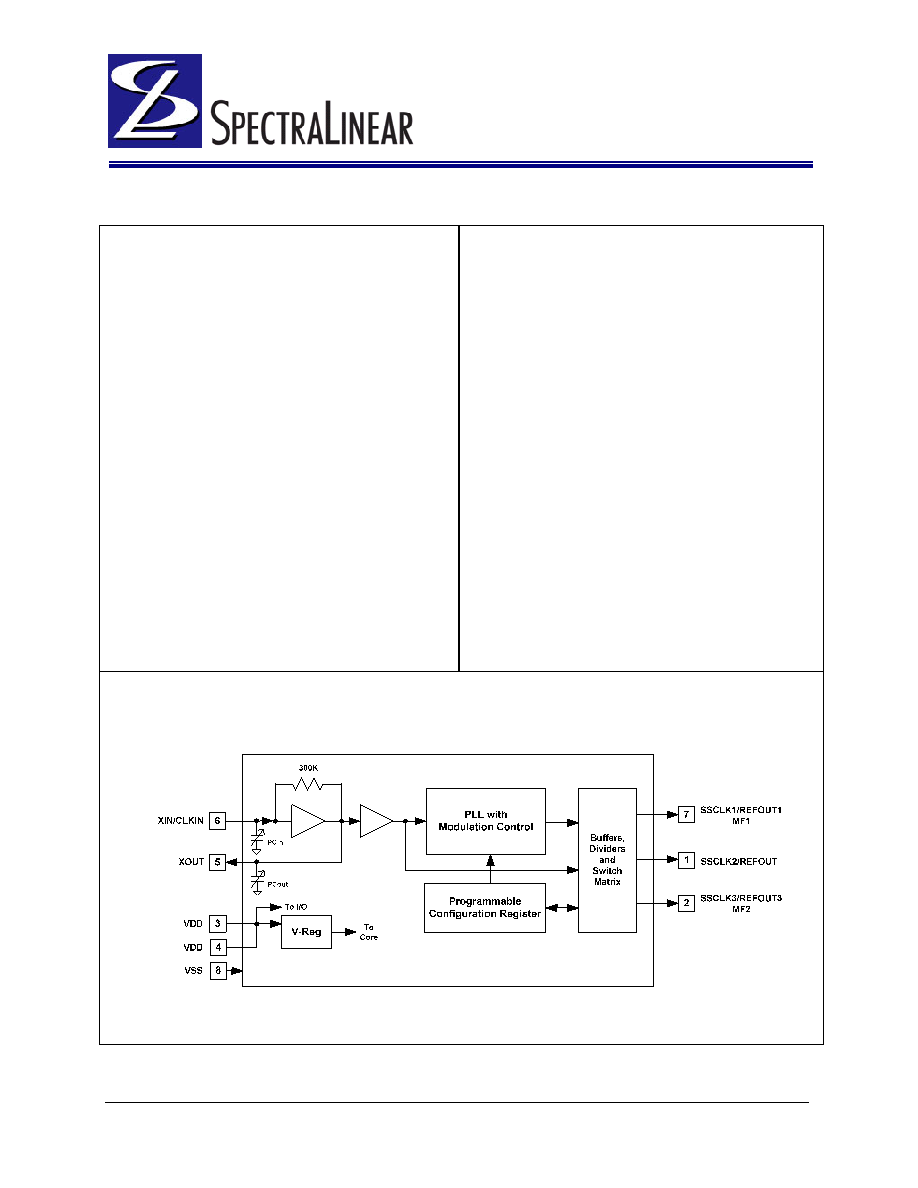

Block Diagram
