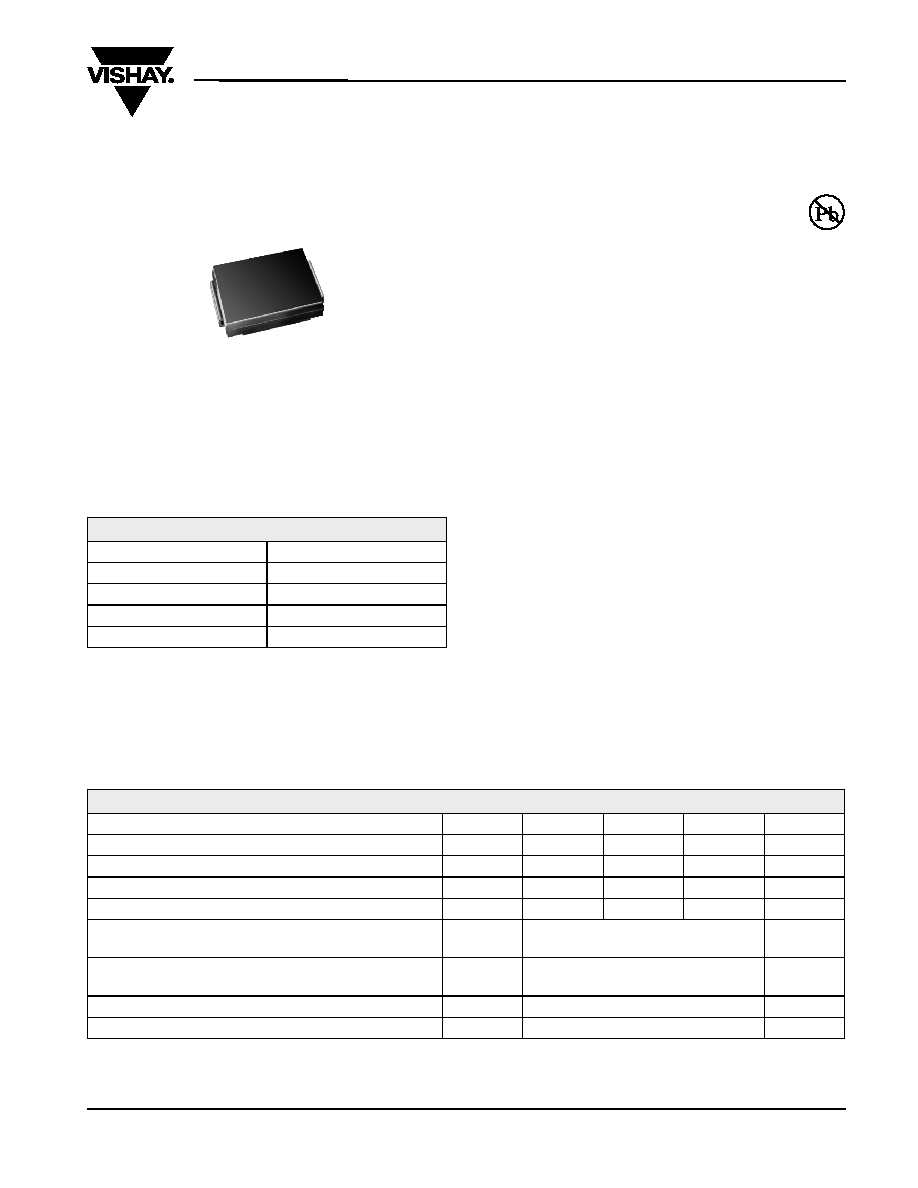

Vishay General Semiconductor
SL42 thru SL44
Document Number 88742
06-Jul-06
www.vishay.com
1
Surface Mount Schottky Barrier Rectifier
FEATURES
Low profile package
Ideal for automated placement
Guardring for overvoltage protection
Low power losses, high efficiency
Very low forward voltage drop
High surge capability
Meets MSL level 1, per J-STD-020C, LF max peak
of 260 °C
Solder Dip 260 °C, 40 seconds
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters, free-
wheeling, dc-to-dc converters, and polarity protection
applications.
MECHANICAL DATA
Case: DO-214AB (SMC)
Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated leads, solderable per
J-STD-002B and JESD22-B102D
E3 suffix for commercial grade, HE3 suffix for high
reliability grade (AEC Q101 qualified)
Polarity: Color band denotes the cathode end
DO-214AB (SMC)
MAJOR RATINGS AND CHARACTERISTICS
IF(AV)
4.0 A
VRRM
20 V to 40 V
IFSM
150 A
VF
0.31 V, 0.35 V
Tj max.
125 °C
Note:
(1) P.C.B. mounted 0.55 x 0.55" (14 x 14 mm) copper pad areas, TL = 90 °C
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
SL42
SL43
SL44
UNIT
Device marking code
SL2
SL3
SL4
Maximum repetitive peak reverse voltage
VRRM
20
30
40
V
Maximum RMS voltage
VRMS
14
21
28
V
Maximum DC blocking voltage
VDC
20
30
40
V
Maximum average forward rectified current (1) at TL (see Fig. 1)
IF(AV)
4.0
8.0
A
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
IFSM
150
A
Operating junction temperature range
TJ
- 55 to + 125
°C
Storage temperature range
TSTG
- 55 to + 150
°C
