– 1 –
SLD1231VL
PE95313-PP
High Power Red Laser Diode
For the availability of this product, please contact the sales office.
Description
The SLD1231VL is a short wavelength high power
laser diode, created as a light source for the next-
generation high density magneto-optical discs.
Features
Red visible light (685nm)
Longitudinal single mode
High power
(Recommended optical power output: 30mW)
Applications
Magneto-optical discs
Structure
AlGaInP quantum well structure laser diode
Recommended Optical Power Output
30mW
Absolute Maximum Ratings
Optical power output
Reverse voltage
Po
V
R
35
2
15
mW
LD
PD
V
V
Operating temperature
Storage temperature
Topr
Tstg
–10 to +50
–40 to +85
°C
°C
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
Reference
1.0
0.5
9
0
φ
5.6 – 0
φ
4.4 MAX
φ
3.7 MAX
φ
1.0 MIN
0.5 MIN
Window Glass
Reference
LD Chip
0
2
1
1
6
2 3 1
3 –
φ
0.45
PCD
φ
2.0
Optical
Distance = 1.35 ± 0.08
1
2
3
M-274

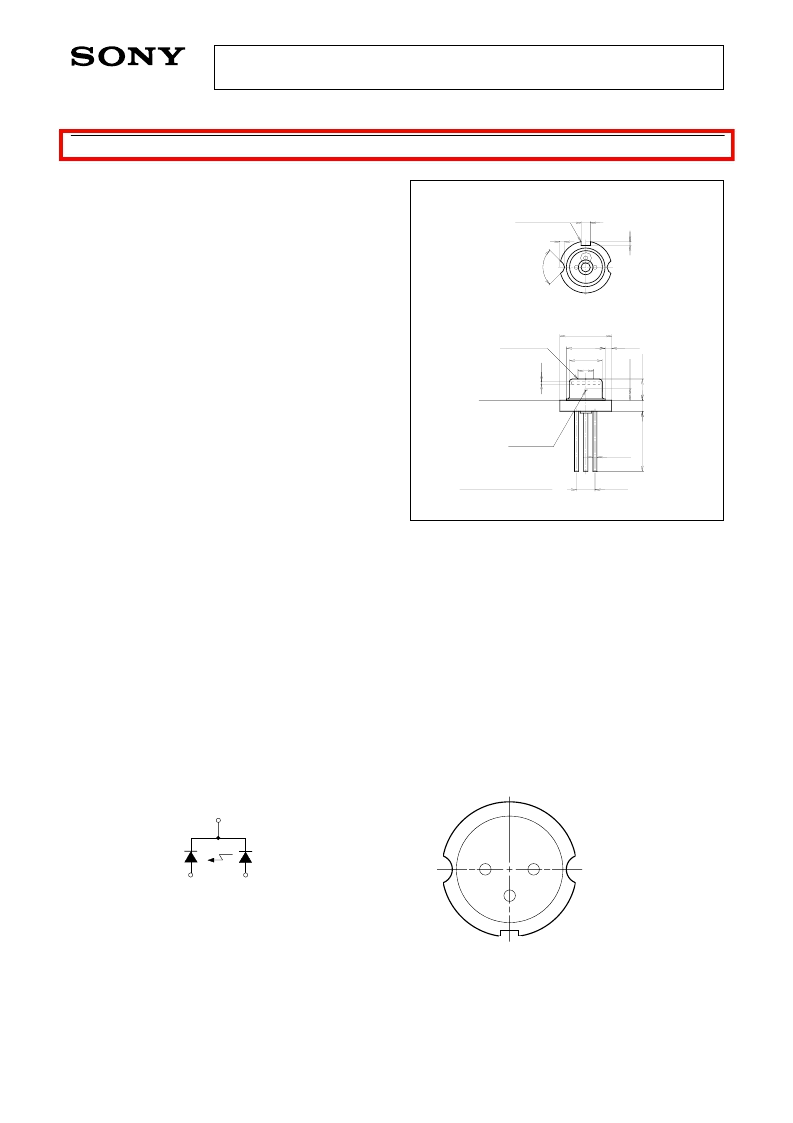

Package Outline
3
LD
1
2
PD
COMMON
Connection Diagram
Pin Configuration
2
1
3
Bottom View
1. LD anode
2. PD anode
3. COMMON
Unit : mm
Preliminary
