參數資料
| 型號： | SMP400G-BEG1 |
| 廠商： | SEMELAB LTD |
| 元件分類： | 光敏二極管 |
| 英文描述： | PIN PHOTO DIODE |
| 封裝： | HERMETIC, METAL CAN, TO-46, 2 PIN |
| 文件頁數： | 1/2頁 |
| 文件大小： | 28K |
| 代理商： | SMP400G-BEG1 |
4.3
13
nom.
Cathode
and case
Anode
2.54
5.4
4.7
0.45
Lead
SMP400G-BE
Prelim. 1/98
Semelab plc. Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.

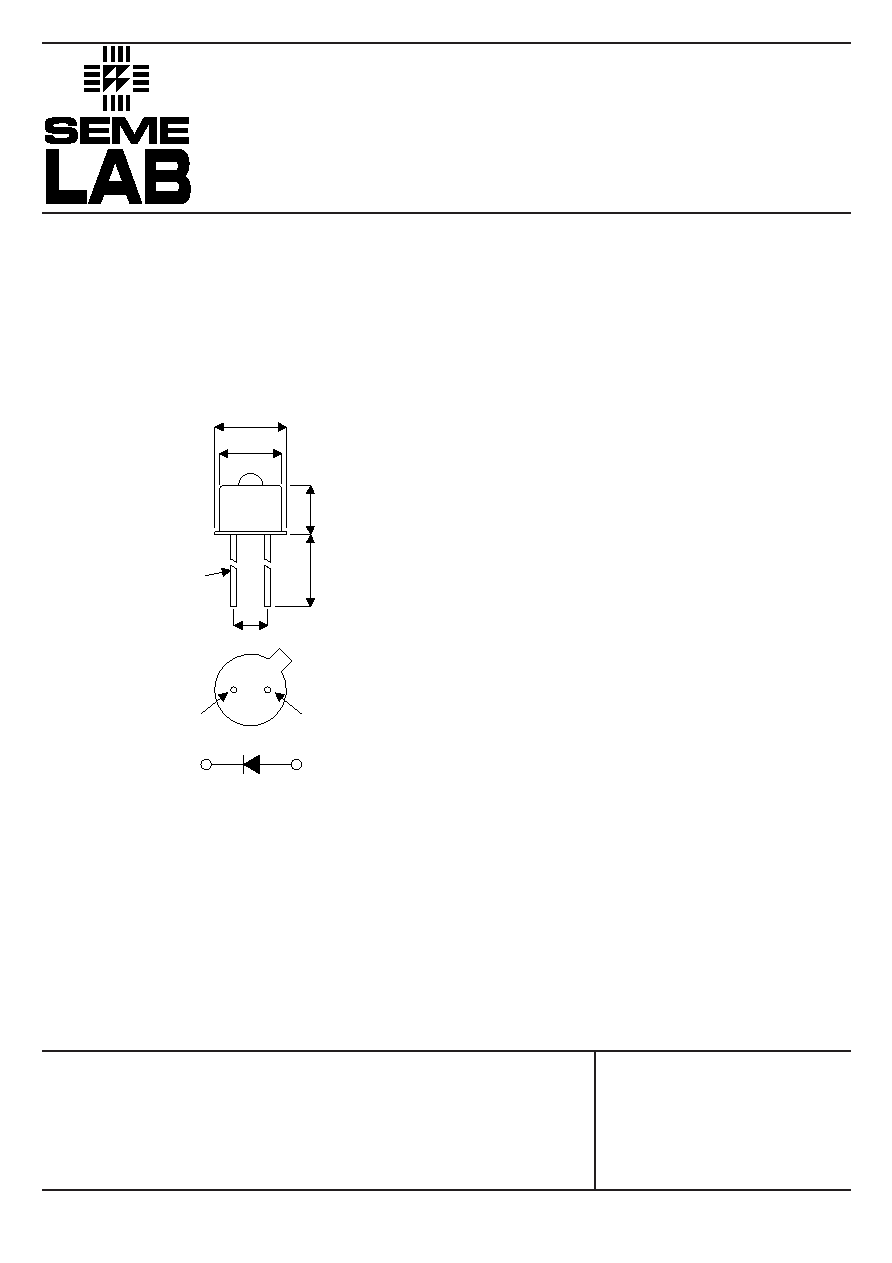

MECHANICAL DATA
Dimensions in mm.
P.I.N. PHOTODIODE
DESCRIPTION
The SMP400G- is a Silicon P.I.N. photodiode specifically
designed for optical fibre communication. The device is
incorporated in a compact, low profile, hermetic metal can
package.
A glass bead lens incorporated into the TO-46 case
provides an efficient optical design. This affords substantial
miss-alignment between the device and a fibre optic cable
without degrading the coupling efficiency.
The electrical terminations are via two leads of diameter
0.02" on a pitch of 0.1". The cathode and case connections
are electrically connected.
TO-18 Package
Operating temperature range
Storage temperature range
Temperature coefficient of responsively
Temperature coefficient of dark current
Reverse breakdown voltage
-40°C to +70°C
-45°C to +80°C
0.35% per °C
x2 per 8°C rise
60V
ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C unless otherwise stated)
FEATURES
LARGE NUMERICAL APERTURE FOR EASE
OF COUPLING TO FIBRE OPTIC CABLES
LOW NOISE
WIDE INTRINSIC BANDWIDTH
EXCELLENT LINEARITY
LOW LEAKAGE CURRENT
LOW CAPACITANCE
TO-46 HERMETIC METAL CAN PACKAGE
Pin 1 – Anode
Pin 2 – Cathode & Case
