Skyworks Solutions, Inc. Phone [781] 376-3000 Fax [781] 376-3100 sales@skyworksinc.com www.skyworksinc.com
200809 Rev. C Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice. October 3, 2008
1
Silicon Tuning Varactors in Hermetic
Surface Mount Package
DATA SHEET
Applications
l
VCOs
l
Voltage tuned filters
Features
l
Silicon abrupt and hyperabrupt devices available
l
Hermetic ceramic package, 1.83 x 1.43 x 1.0 mm
l
Usable to 10 GHz
l
Operating temperature range -55 °C to 150 °C
l
ESD Class 1A, human body model
l
Low inductance 0.48 nH
l
Lead (Pb)-free, RoHS-compliant, and Green,
MSL-1 @ 260 °C per JEDEC J-STD-020
Skyworks Green products are RoHS (Restriction
of Hazardous Substances)-compliant, conform to
the EIA/EICTA/JEITA Joint Industry Guide (JIG)
Level A guidelines, are halogen free according to
IEC-61249-2-21, and contain <1,000 ppm antimony
trioxide in polymeric materials.
NEW
Description

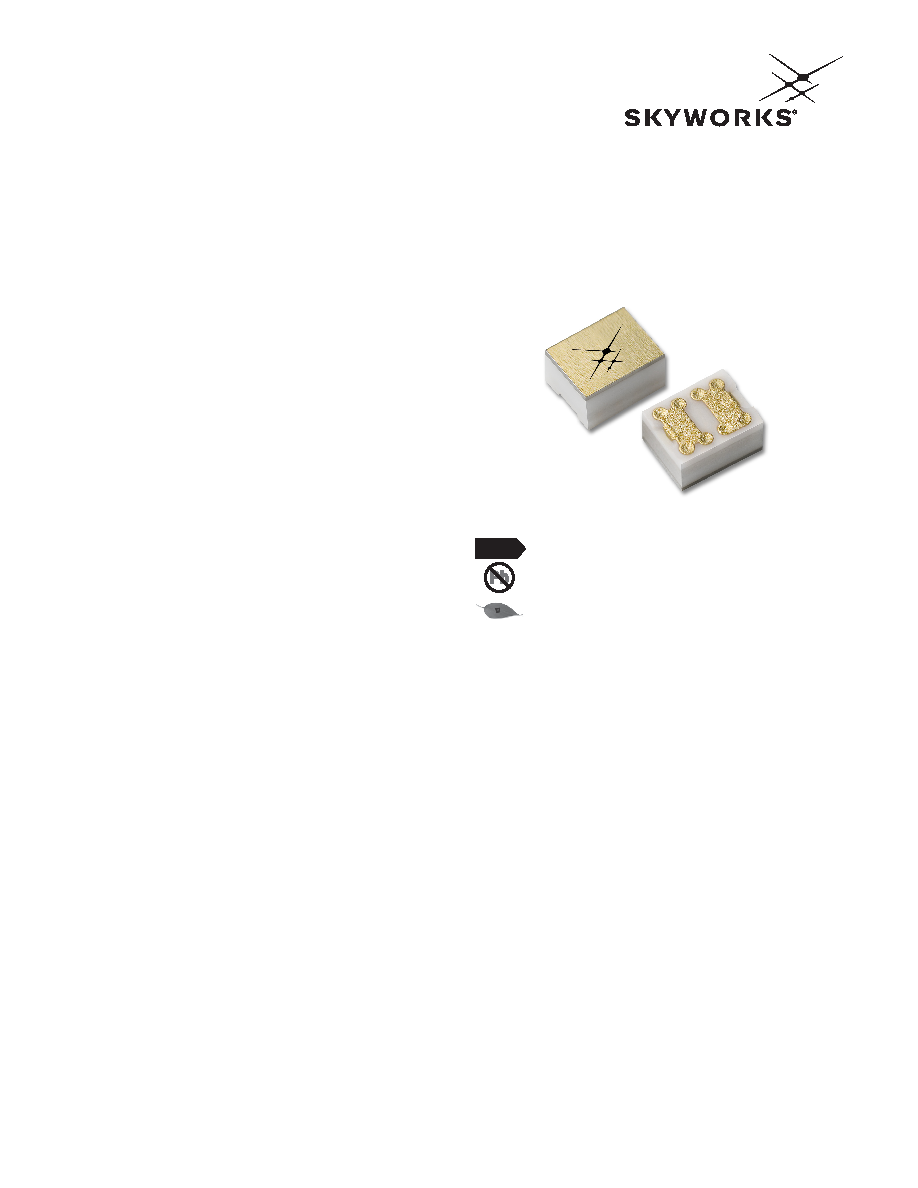

The family of proven silicon tuning varactor diodes is packaged in a
hermetic, ceramic package. This package offers excellent, very low
parasitic inductance and capacitance for wide bandwidth, high-
frequency operation. It has low thermal impedance and meets fine
and gross leak requirements for excellent reliability. Its small form
factor, 1.83 x 1.43 x 1.0 mm, compares favorably to that of the
smallest plastic packages.
This package meets Skyworks definition of Green: it is lead (Pb)-
free, fully complies with current RoHS requirements and contains
no halogens and no antimony (Sb).
SMV1405-108 is an abrupt junction device, with high Q and
moderately large tuning bandwidth.
SMV1206-108 and SMV2019-108 are hyperabrupt junction
varactors, which offer large tuning bandwidths by virtue of their
high ratio capacitance voltage characteristic.
The diodes available in this package can operate over the
temperature range of -55 °C to 150 °C.
