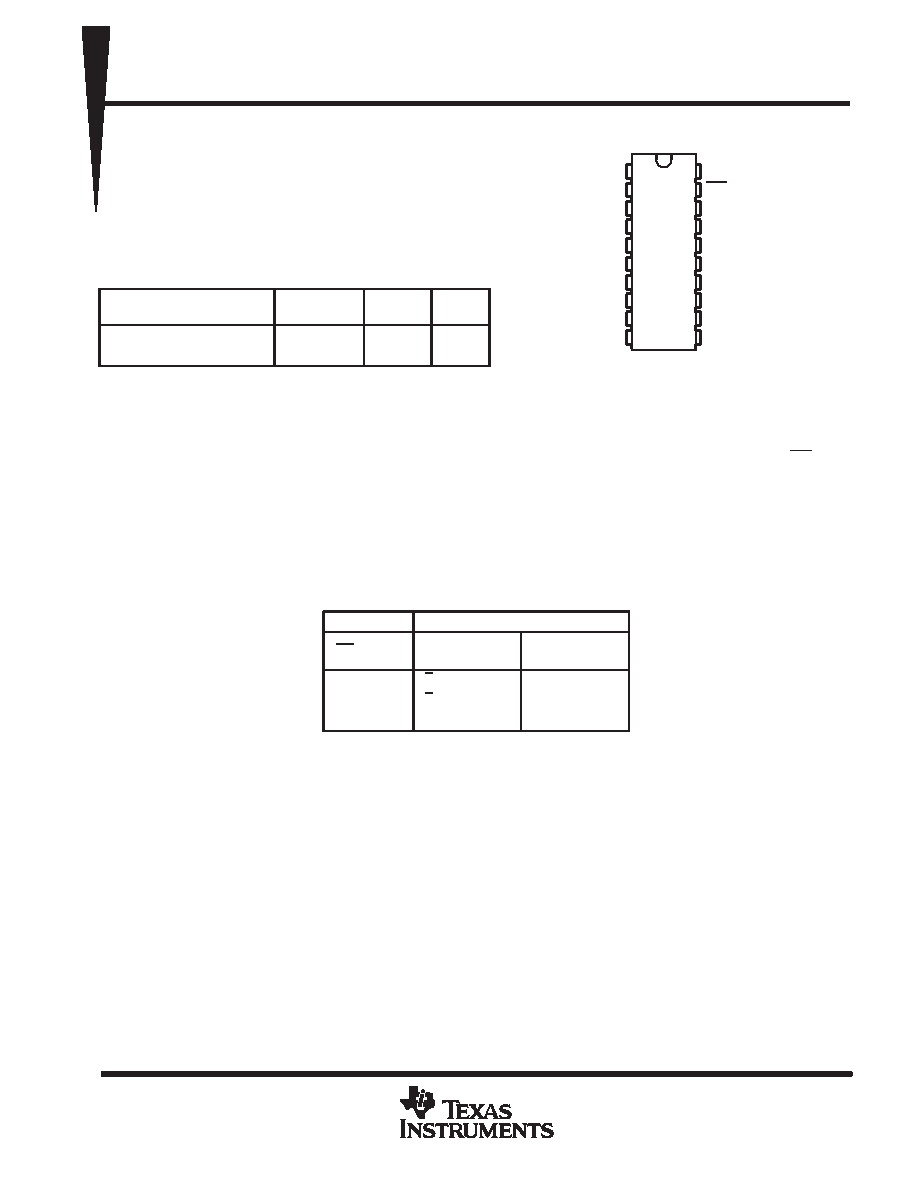

SN74ALS638A, SN74ALS639A, SN74AS638A, SN74AS639
OCTAL BUS TRANSCEIVERS
SDAS123A – DECEMBER 1983 – REVISED JANUARY 1995
Copyright
1995, Texas Instruments Incorporated
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
Bidirectional Bus Transceivers in
High-Density 20-Pin Packages
Choice of True or Inverting Logic
A-Bus Outputs Are Open Collector;
B-Bus Outputs Are 3 State
Package Options Include Plastic
Small-Outline (DW) Packages and
Standard Plastic (N) 300-mil DIPs
DEVICE
A
OUTPUT
B
OUTPUT
LOGIC
SN74ALS638A, SN74AS638A
Open collector
3 state
Inverting
SN74ALS639A, SN74AS639
Open collector
3 state
True
description
These octal bus transceivers are designed for asynchronous two-way communication between open-collector
and 3-state buses. The devices transmit data from the A bus (open-collector) to the B bus (3 state) or from the
B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input
can be used to disable the device so the buses are isolated.
The -1 version of SN74ALS638A is identical to the standard version, except that the recommended maximum
IOL is increased to 48 mA.
The SN74ALS638A, SN74ALS639A, SN74AS638A, and SN74AS639 are characterized for operation from 0
°C
to 70
°C.
FUNCTION TABLE
INPUTS
OPERATION
OE
DIR
SN74ALS638A
SN74AS638A
SN74ALS639A
SN74AS639
L
B data to A bus
L
HA data to B bus
A data to B bus
H
X
Isolation
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
VCC
OE
B1
B2
B3
B4
B5
B6
B7
B8
DW OR N PACKAGE
(TOP VIEW)
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
