| 型號： | SN74AUC1G04DBVRG4 |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 門電路 |
| 英文描述： | AUC SERIES, 1-INPUT INVERT GATE, PDSO5 |
| 封裝： | GREEN, PLASTIC, SOT-23, 5 PIN |
| 文件頁數： | 1/18頁 |
| 文件大小： | 885K |
| 代理商： | SN74AUC1G04DBVRG4 |
www.ti.com
FEATURES
DRY PACKAGE

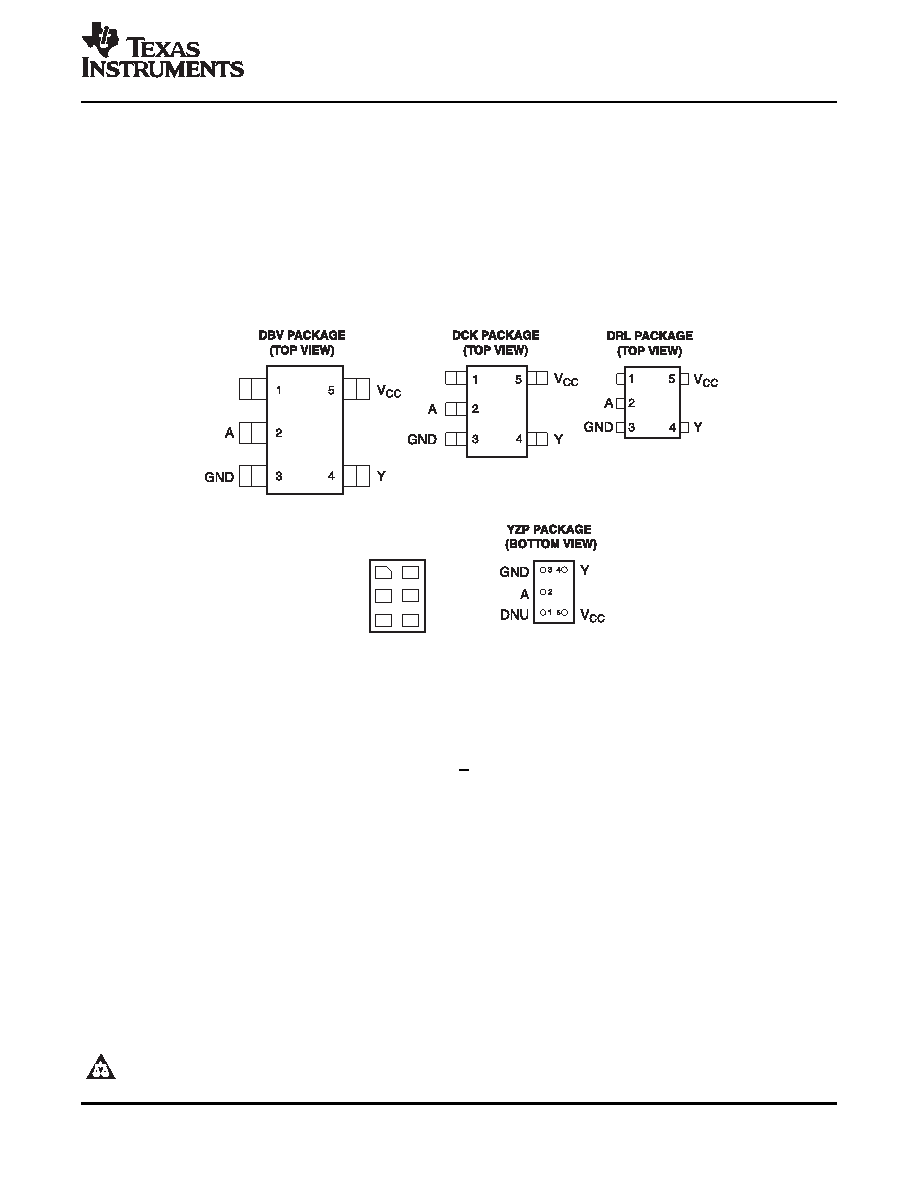

(TOP VIEW)
A
NC
6
4
2
3
GND
Y
V
CC
1
NC
Seemechanicaldrawingsfordimensions.
NC – Nointernalconnection
5
NC
PR
EV
IE
W
DESCRIPTION/ORDERING INFORMATION
SINGLE INVERTER GATE
SCES370Q – SEPTEMBER 2001 – REVISED APRIL 2007
Available in the Texas Instruments
Low Power Consumption, 10-A Max I
CC
NanoFree Package
±8-mA Output Drive at 1.8 V
Optimized for 1.8-V Operation and Is 3.6-V I/O
Latch-Up Performance Exceeds 100 mA Per
Tolerant to Support Mixed-Mode Signal
JESD 78, Class II
Operation
ESD Protection Exceeds JESD 22
I
off Supports Partial-Power-Down Mode
–
2000-V Human-Body Model (A114-A)
Operation
–
200-V Machine Model (A115-A)
Sub-1-V Operable
–
1000-V Charged-Device Model (C101)
Max t
pd of 2.2 ns at 1.8 V
This single inverter gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC
operation.
The SN74AUC1G04 performs the Boolean function Y = A.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the
package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the ouput,
preventing damaging current backflow through the device when it is powered down.
For more information about AUC Little Logic devices, please refer to the TI application report, Applications of
Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
NanoFree is a trademark of Texas Instruments.
UNLESS
OTHERWISE
NOTED
this
document
contains
Copyright 2001–2007, Texas Instruments Incorporated
PRODUCTION DATA information current as of publication date.
Products conform to specifications per the terms of Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
