Semiconductor Components Industries, LLC, 1999
December, 1999 – Rev. 6
1
Publication Order Number:
SN74LS139/D

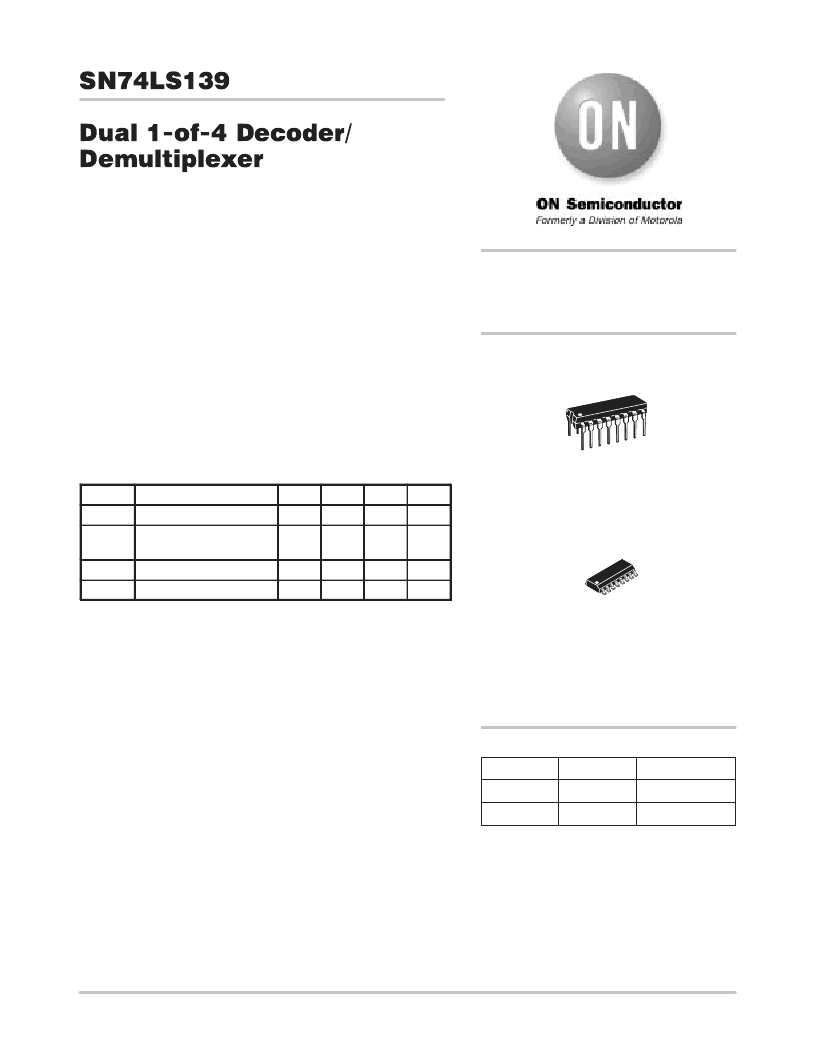

The LSTTL/MSI SN74LS139 is a high speed Dual 1-of-4
Decoder/Demultiplexer. The device has two independent decoders,
each accepting two inputs and providing four mutually exclusive
active LOW Outputs. Each decoder has an active LOW Enable input
which can be used as a data input for a 4-output demultiplexer. Each
half of the LS139 can be used as a function generator providing all
four minterms of two variables. The LS139 is fabricated with the
Schottky barrier diode process for high speed and is completely
compatible with all ON Semiconductor TTL families.
Schottky Process for High Speed
Multifunction Capability
Two Completely Independent 1-of-4 Decoders
Active Low Mutually Exclusive Outputs
Input Clamp Diodes Limit High Speed Termination Effects
ESD > 3500 Volts
GUARANTEED OPERATING RANGES
Symbol
Parameter
Min
Typ
Max
Unit
V
CC
Supply Voltage
4.75
5.0
5.25
V
T
A
Operating Ambient
Temperature Range
0
25
70
°
C
I
OH
Output Current – High
–0.4
mA
I
OL
Output Current – Low
8.0
mA
LOW
POWER
SCHOTTKY
Device
Package
Shipping
ORDERING INFORMATION
SN74LS139N
16 Pin DIP
2000 Units/Box
SN74LS139D
16 Pin
SOIC
D SUFFIX
CASE 751B
http://onsemi.com
2500/Tape & Reel
PLASTIC
N SUFFIX
CASE 648
16
1
16
1
