5-387
FAST AND LS TTL DATA
OCTAL BUFFER/LINE DRIVER
WITH 3-STATE OUTPUTS
The SN54/74LS240, 241 and 244 are Octal Buffers and Line Drivers
designed to be employed as memory address drivers, clock drivers and
bus-oriented transmitters/receivers which provide improved PC board
density.
Hysteresis at Inputs to Improve Noise Margins
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
Input Clamp Diodes Limit High-Speed Termination Effects

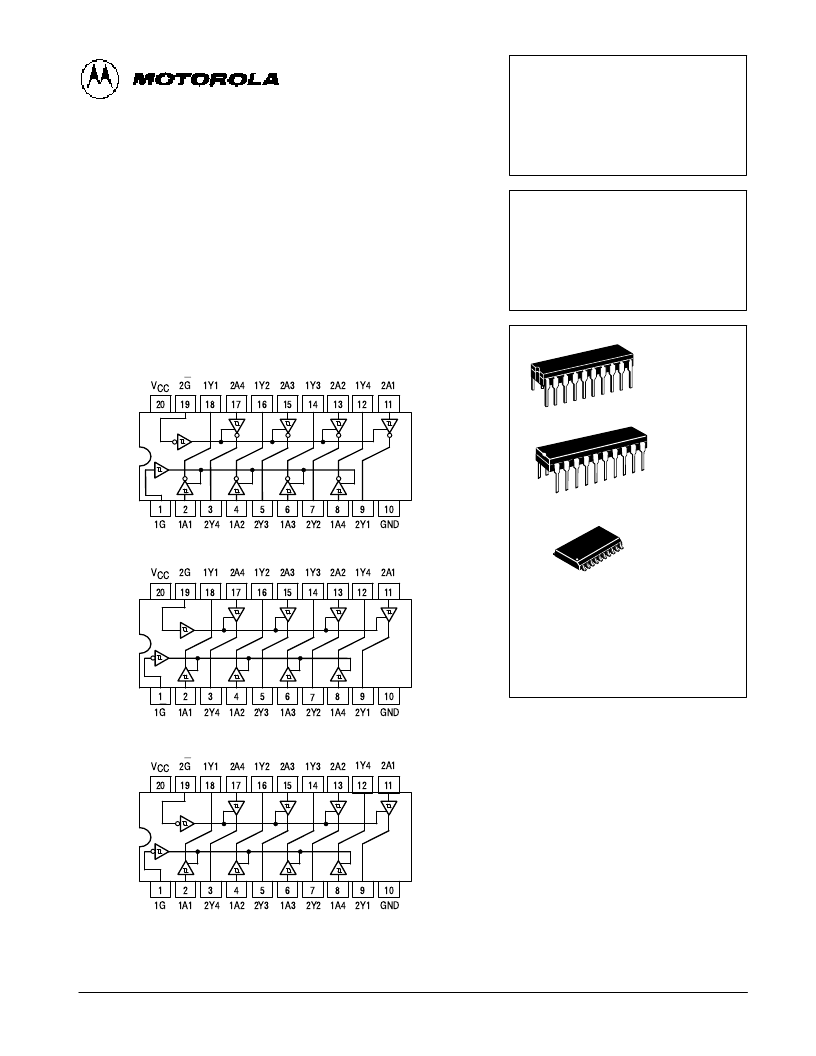

LOGIC AND CONNECTION DIAGRAMS DIP
(TOP VIEW)
SN54/74LS240
SN54/74LS241
SN54/74LS244
SN54/74LS240
SN54/74LS241
SN54/74LS244
OCTAL BUFFER/LINE DRIVER
WITH 3-STATE OUTPUTS
LOW POWER SCHOTTKY
ORDERING INFORMATION
SN54LSXXXJ
SN74LSXXXN
SN74LSXXXDW SOIC
Ceramic
Plastic
20
1
J SUFFIX
CERAMIC
CASE 732-03
20
1
N SUFFIX
PLASTIC
CASE 738-03
20
1
DW SUFFIX
SOIC
CASE 751D-03
