參數資料
| 型號： | SN74LVC125ADRE4 |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 總線收發器 |
| 英文描述： | LVC/LCX/Z SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14 |
| 封裝： | GREEN, PLASTIC, MS-012AB, SOIC-14 |
| 文件頁數： | 1/20頁 |
| 文件大小： | 725K |
| 代理商： | SN74LVC125ADRE4 |

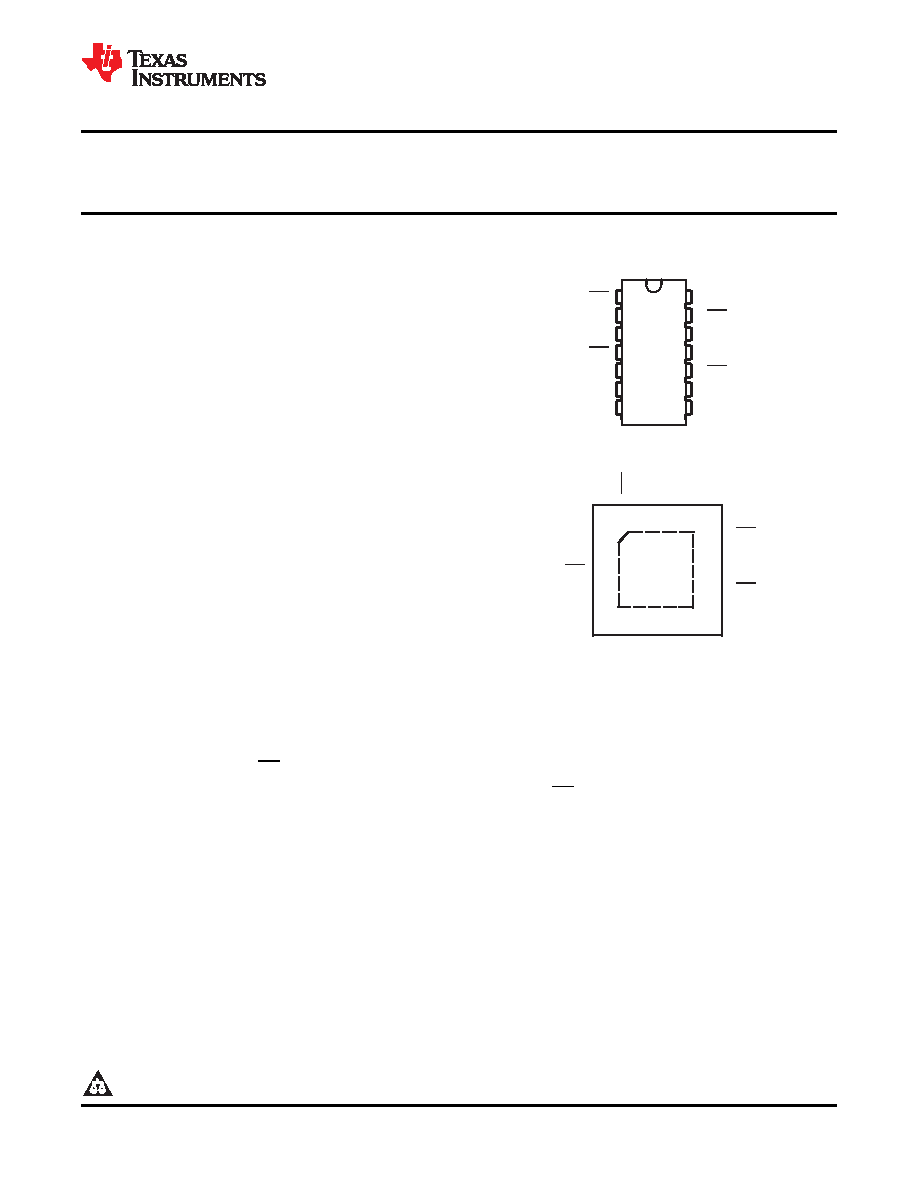

D, DB, NS, OR PW PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1OE
1A
1Y
2OE
2A
2Y
GND
VCC
4OE
4A
4Y
3OE
3A
3Y
RGY PACKAGE
(TOP VIEW)
1
14
7
8
2
3
4
5
6
13
12
11
10
9
4OE
4A
4Y
3OE
3A
1A
1Y
2OE
2A
2Y
1OE
3Y
V
GND
CC
www.ti.com
SCAS290P – JANUARY 1993 – REVISED OCTOBER 2010
QUADRUPLE BUS BUFFER GATE
WITH 3-STATE OUTPUTS
Check for Samples: SN74LVC125A
1
FEATURES
Operates From 1.65 V to 3.6 V
Specified From –40°C to 85°C
and –40°C to 125°C
Inputs Accept Voltages to 5.5 V
Max tpd of 4.8 ns at 3.3 V
Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
–
2000-V Human-Body Model (A114-A)
–
200-V Machine Model (A115-A)
–
1000-V Charged-Device Model (C101)
DESCRIPTION/ORDERING INFORMATION
This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC125A features independent line drivers with 3-state outputs. Each output is disabled when the
associated output-enable (OE) input is high.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in
a mixed 3.3-V/5-V system environment.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright 1993–2010, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
