參數資料
| 型號： | SN74LVCZ32245AZKER |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 總線收發器 |
| 英文描述： | LVC/LCX/Z SERIES, QUAD 8-BIT TRANSCEIVER, TRUE OUTPUT, PBGA96 |
| 封裝： | GREEN, PLASTIC, LFBGA-96 |
| 文件頁數： | 1/12頁 |
| 文件大小： | 417K |
| 代理商： | SN74LVCZ32245AZKER |

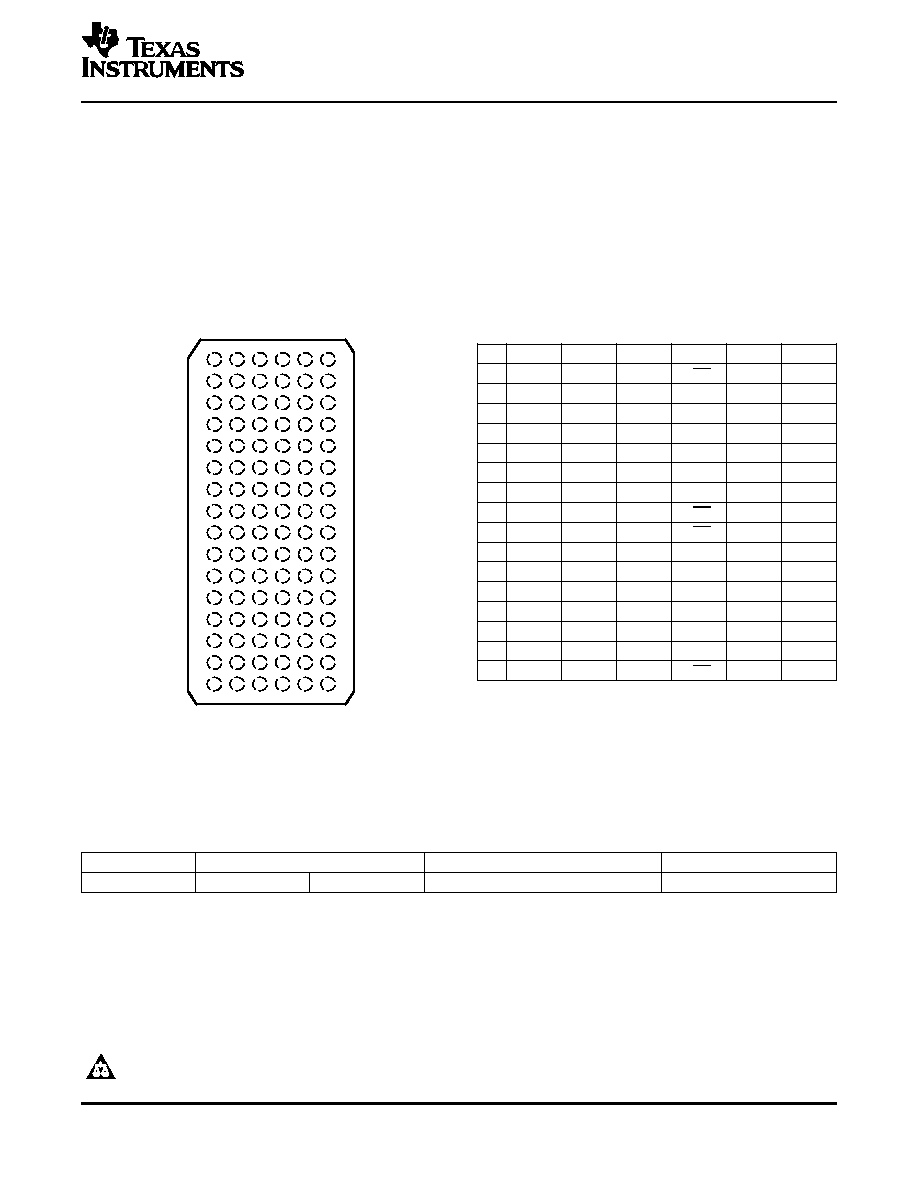

www.ti.com
FEATURES
GKE PACKAGE
(TOP VIEW)
1
2
3
4
5
6
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
DESCRIPTION/ORDERING INFORMATION
SN74LVCZ32245A
32-BIT BUS TRANSCEIVER
WITH 3-STATE OUTPUTS
SCES423 – JANUARY 2003 – REVISED JUNE 2005
Supports Mixed-Mode Signal Operation on All
Ports (5-V Input/Output Voltage With
Member of the Texas Instruments Widebus+
3.3-V VCC)
Family
Latch-Up Performance Exceeds 100 mA Per
Operates From 2.7 V to 3.6 V
JESD 78, Class II
Inputs Accept Voltages to 5.5 V
ESD Protection Exceeds JESD 22
Max tpd of 3.7 ns at 3.3 V
– 2000-V Human-Body Model (A114-A)
Ioff and Power-Up 3-State Support Hot
– 1000-V Charged-Device Model (C101)
Insertion
<br/>
TERMINAL ASSIGNMENTS
1
2
3
4
5
6
A
1B2
1B1
1DIR
1OE
1A1
1A2
B
1B4
1B3
GND
1A3
1A4
C
1B6
1B5
VCC
1A5
1A6
D
1B8
1B7
GND
1A7
1A8
E
2B2
2B1
GND
2A1
2A2
F
2B4
2B3
VCC
2A3
2A4
G
2B6
2B5
GND
2A5
2A6
H
2B7
2B8
2DIR
2OE
2A8
2A7
J
3B2
3B1
3DIR
3OE
3A1
3A2
K
3B4
3B3
GND
3A3
3A4
L
3B6
3B5
VCC
3A5
3A6
M
3B8
3B7
GND
3A7
3A8
N
4B2
4B1
GND
4A1
4A2
P
4B4
4B3
VCC
4A3
4A4
R
4B6
4B5
GND
4A5
4A6
T
4B7
4B8
4DIR
4OE
4A8
4A7
This 32-bit (quad-octal) noninverting bus transceiver is designed for 2.7-V to 3.6-V VCC operation.
The SN74LVCZ32245A is designed for asynchronous communication between data buses. The control-function
implementation minimizes external timing requirements.
ORDERING INFORMATION
TA
PACKAGE(1)
ORDERABLE PART NUMBER
TOP-SIDE MARKING
–40
°C to 85°C
LFBGA – GKE
Tape and reel
SN74LVCZ32245AGKER
ZC245A
(1)
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Widebus+ is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright 2003–2005, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
