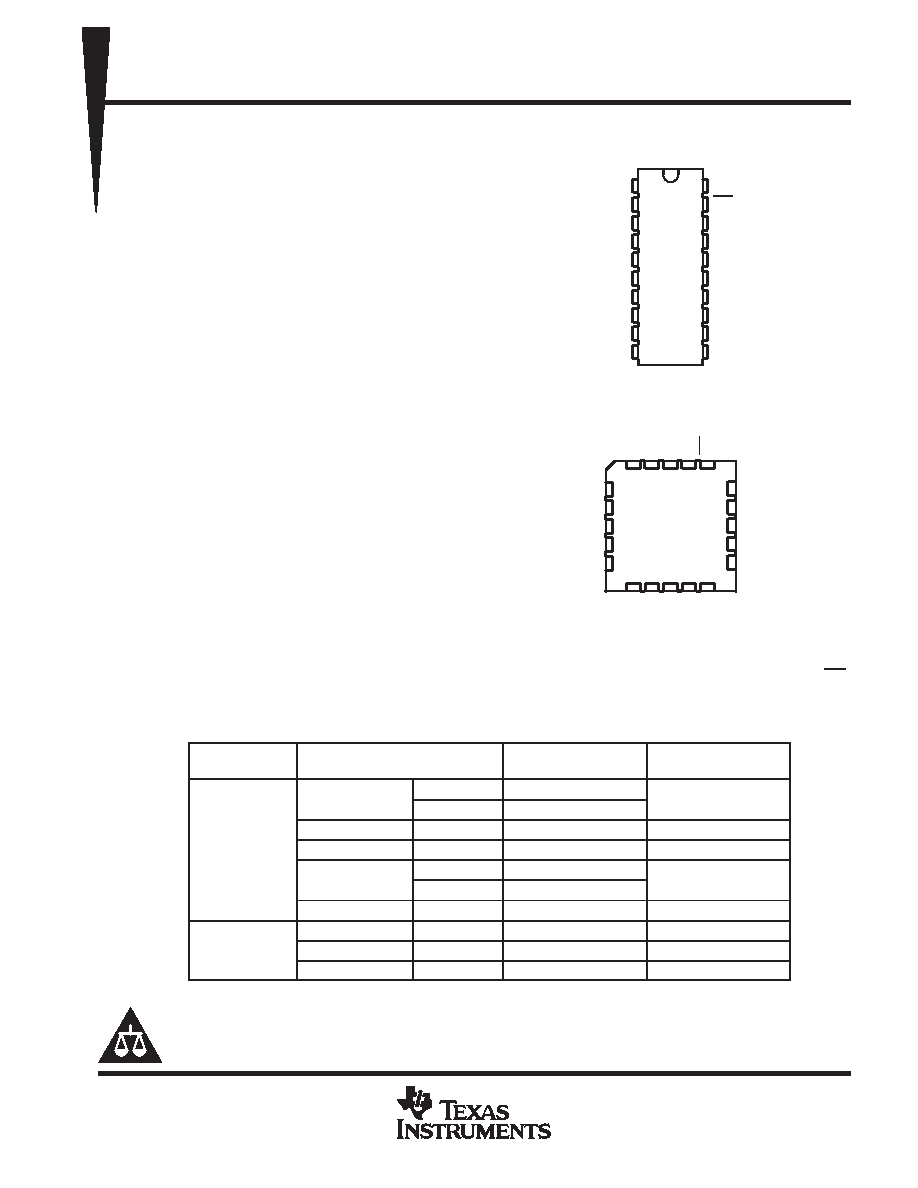

SN54LVTH2245, SN74LVTH2245
3.3V ABT OCTAL BUS TRANSCEIVERS
WITH 3STATE OUTPUTS
SCBS707E SEPTEMBER 1997 REVISED OCTOBER 2003
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D Support Mixed-Mode Signal Operation (5-V
Input and Output Voltages With 3.3-V VCC)
D Support Unregulated Battery Operation
Down to 2.7 V
D Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
D B-Port Outputs Have Equivalent 22-
Series Resistors, So No External Resistors
Are Required
D Ioff and Power-Up 3-State Support Hot
Insertion
D Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown
Resistors
D Latch-Up Performance Exceeds 500 mA Per
JESD 17
D ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
description/ordering information
These octal bus transceivers are designed
specifically for low-voltage (3.3-V) VCC operation,
but with the capability to provide a TTL interface
to a 5-V system environment.
These devices are designed for asynchronous
communication
between
data
buses.
They
transmit data from the A bus to the B bus or from
the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE)
input can be used to disable the devices so the buses are effectively isolated.
ORDERING INFORMATION
TA
PACKAGE
ORDERABLE
PART NUMBER
TOP-SIDE MARKING
SOIC DW
Tube
SN74LVTH2245DW
LVTH2245
SOIC DW
Tape and reel
SN74LVTH2245DWR
LVTH2245
SOP NS
Tape and reel
SN74LVTH2245NSR
LVTH2245
40
°C to 85°C
SSOP DB
Tape and reel
SN74LVTH2245DBR
LK245
40 C to 85 C
TSSOP PW
Tube
SN74LVTH2245PW
LK245
TSSOP PW
Tape and reel
SN74LVTH2245PWR
LK245
TVSOP DGV
Tape and reel
SN74LVTH2245DGVR
LK245
CDIP J
Tube
SNJ54LVTH2245J
55
°C to 125°C
CFP W
Tube
SNJ54LVTH2245W
55 C to 125 C
LCCC FK
Tube
SNJ54LVTH2245FK
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are
available at www.ti.com/sc/package.
Copyright
2003, Texas Instruments Incorporated
UNLESS OTHERWISE NOTED this document contains PRODUCTION
DATA information current as of publication date. Products conform to
specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all
parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
SN54LVTH2245 ...J OR W PACKAGE
SN74LVTH2245 . . . DB, DGV, DW, NS, OR PW PACKAGE
(TOP VIEW)
32
1 20 19
9 10 11 12 13
4
5
6
7
8
18
17
16
15
14
B1
B2
B3
B4
B5
A3
A4
A5
A6
A7
A2
A1
DIR
B7
B6
OE
A8
G
ND
B8
V
CC
SN54LVTH2245 . . . FK PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
VCC
OE
B1
B2
B3
B4
B5
B6
B7
B8
