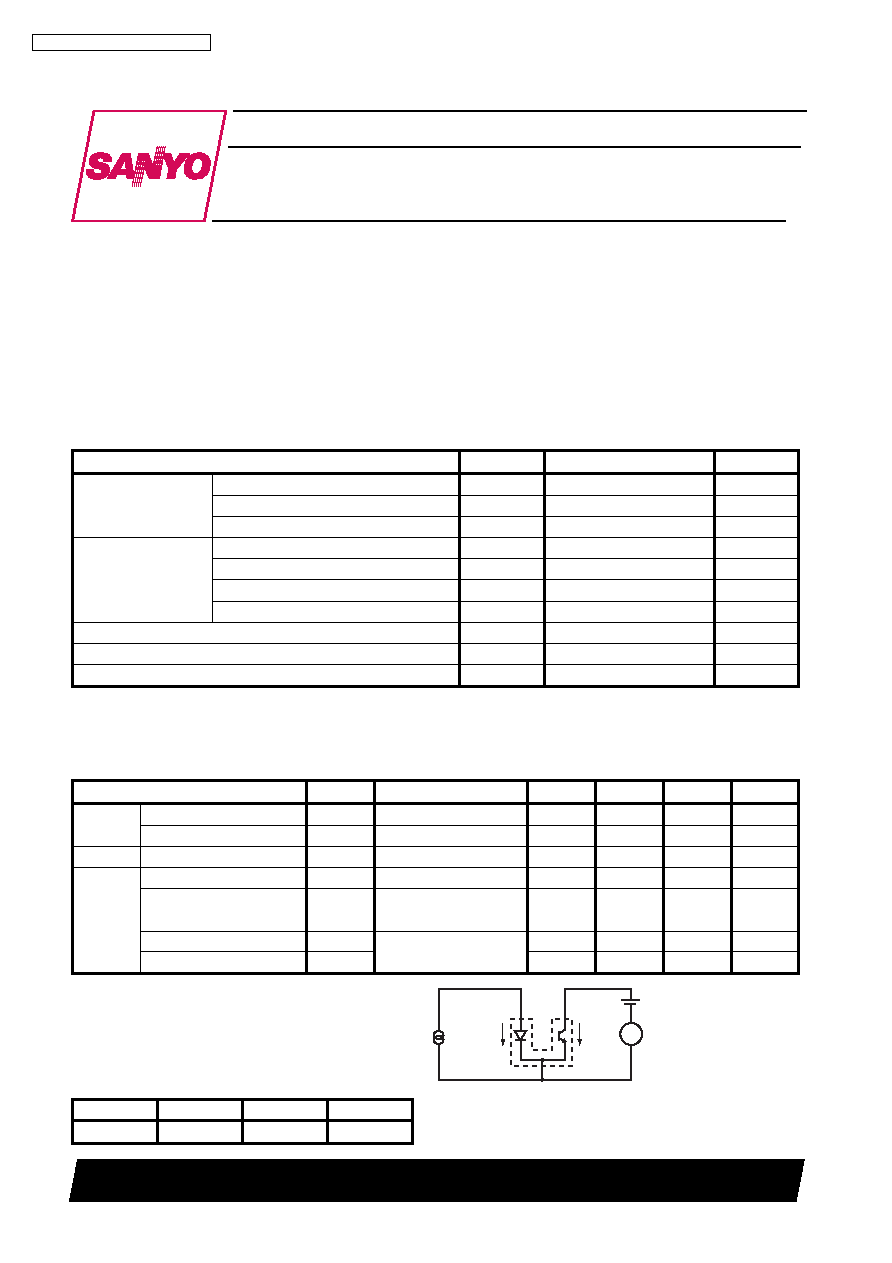

SPI-235-19
No.6024 1/6
Features
GaAs Infrared LED plus Single Phototransistor
Photo-Interrupter
Contact type
Compact type : H3.25 ! L5.0 ! W4.5mm
Absolute Maximum Ratings at Ta=25
°C, 65%RH
Parameter
Symbol
Rating
Unit
Input LED
Forward Current
IF
50
mA
Reverse Voltage
VR
5V
Power Dissipation
PD
70
mW
Output
Collector-Emitter Voltage
VCEO
20
V
Phototransistor
Emitter-Collector Voltage
VECO
5V
Collector Curren
IC
20
mA
Power Dissipation
PC
70
mW
Operating Temperature
Topr
--20 to +80
°C
Storage Temperature
Tstg
--30 to +85
°C
Soldering Temperature *1
Tsol
260
°C
*1 Soldering conditions : time : max. 3sec; clearance : min. 1mm from lower stay
Electro-Optical Characteristics at Ta=25
°C, 65%RH
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Input
Forward Voltage
VF
IF=10mA
1.0
1.15
1.4
V
Reverse Current
IR
VR=5V
--
10
A
Output
Dark Current
ICEO
IF=0mA, VCE=10V
--
10
200
nA
Coupled
Collector Output Current
IC
IF=10mA,VCE=5V*1
200
--
1000
A
Collector Emitter
VCE(sat)
IF=10mA, IC=100A
--
0.5
V
Saturation Voltage
Rise Time
tr
VCC=5V, RL=100
--
7
--
s
Fall Time
tf
IC=1mA
--
7
--
s
*1 Measurement Circuit of Collector Current
*2
Table of Classification of Collector Output
Class
A
B
C
Ic (
A)
1000 to 450
650 to 300
450 to 200
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Ordering number : EN6024
SPI-235-19
GaAs Infrared LED
Ultraminiature photointerrupter
(single-transistor type)
72199 GI, (MI)
IF=10mA
Ic
VCE=5V
A
